Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

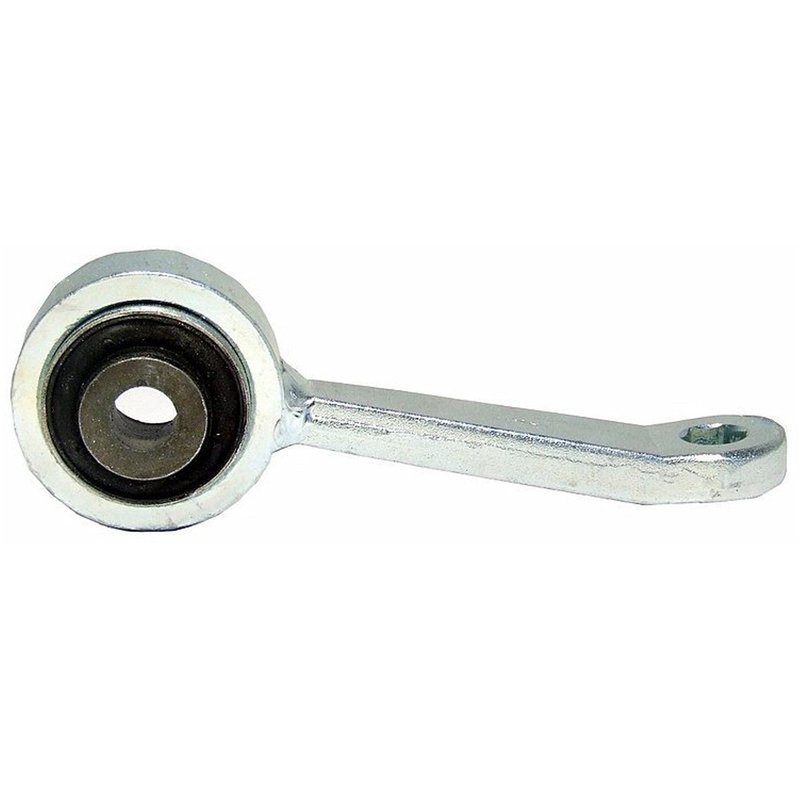

Delphi TC1498 Suspension Stabilizer Bar Link - Front Left
| Brand | Delphi TC1498 |
|---|---|
| Position | Front Left |
| Bolts Included | No |
| Bushing Color | Black |
| Bushing Inside Diameter | 0.563 |
| Bushing Inside Diameter | 14.3 |
| Bushing Material | Natural Rubber (NR) |
| Bushings Included | Yes |
| Dust Boot Included | No |
| End 2 Type | Bushing |
| Grade Type | Regular |
| Greaseable | No |
| Height | 2.362 |
| Height | 60.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 5.059 |
| Length | 128.5 |
| Locking Nuts Included | No |
| Material | Steel |
| Washers Included | No |
| Weight | 1.17 |
| Width | 1.575 |
| Width | 40.0 |
| Fits | Mercedes-Benz · 28 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Built with natural rubber bushings for dependable suspension control.
Tested for extremes. Withstands temperatures below -40 C and over 120 C, plus salt spray.
Cross-references Beck/Arnley 101-5717, Beck/Arnley 101-5718 and Mevotech Supreme MK80462 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC1498 Front Left Stabilizer Bar Link
The Delphi TC1498 suspension stabilizer bar link is a standard replacement part for the front left position on select Mercedes-Benz models. Built with a steel housing and steel construction, it uses natural rubber bushings to support stable suspension movement and consistent sway bar connection.
Key Features
- Part number: TC1498
- Front left suspension stabilizer bar link
- Steel material and steel housing material
- Natural rubber bushing material with black bushing color
- Bushings included; bushing inside diameter: 14.3 mm
- Standard replacement, regular grade
- Greaseable: No
- Dust boot, washers, bolts, and locking nuts not included
Detailed Description
Delphi TC1498 is engineered as an OE-style suspension stabilizer bar link for the front left side. Delphi applies dimensional and material analysis to support fitment consistency between OE and aftermarket applications, and the part is tested for temperature extremes and salt exposure to reflect demanding undercar conditions. This makes the TC1498 a practical replacement for Mercedes-Benz S-Class vehicles where a worn sway bar link can affect suspension response and chassis stability. This part cross-references MOOG Chassis Products K200256 for the same application.
Vehicle Fitment
- Fits 2006 Mercedes-Benz S350, front left.
- Fits 2000-2006 Mercedes-Benz S430, front left.
- Fits 2000-2006 Mercedes-Benz S500, front left.
- Fits 2001-2006 Mercedes-Benz S55 AMG, front left.
- Fits 2001-2006 Mercedes-Benz S600, front left.
- Fits 2006 Mercedes-Benz S65 AMG, front left.
Common Issues This Part Helps Address
- Front-end clunking or knocking over bumps
- Excessive sway bar play at the front left suspension
- Loose or imprecise steering feel from worn linkage
- Uneven suspension response caused by deteriorated bushings
- Noise from a worn stabilizer bar connection on Mercedes-Benz S-Class models
Installation Notes and Tips
Confirm the vehicle is listed by year, model, and front left position before installation. Inspect the sway bar, mounting points, and surrounding suspension components for wear before replacing the link. Because hardware is not included, reuse or source the required fasteners separately as needed for the application.
Quality Assurance
Delphi uses OE-focused engineering and material validation for its aftermarket steering and suspension portfolio. The TC1498 is evaluated under temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray testing to support durability in harsh operating conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Mercedes-Benz | S350 | — | Front Left | — |
| 2006 | Mercedes-Benz | S430 | RWD | Front Left | — |
| 2006 | Mercedes-Benz | S500 | RWD | Front Left | — |
| 2006 | Mercedes-Benz | S55 AMG | — | Front Left | — |
| 2006 | Mercedes-Benz | S600 | — | Front Left | — |
| 2006 | Mercedes-Benz | S65 AMG | — | Front Left | — |
| 2005 | Mercedes-Benz | S430 | RWD | Front Left | — |
| 2005 | Mercedes-Benz | S500 | RWD | Front Left | — |
| 2005 | Mercedes-Benz | S55 AMG | — | Front Left | — |
| 2005 | Mercedes-Benz | S600 | — | Front Left | — |
| 2004 | Mercedes-Benz | S430 | RWD | Front Left | — |
| 2004 | Mercedes-Benz | S500 | RWD | Front Left | — |
| 2004 | Mercedes-Benz | S55 AMG | — | Front Left | — |
| 2004 | Mercedes-Benz | S600 | — | Front Left | — |
| 2003 | Mercedes-Benz | S430 | RWD | Front Left | — |
| 2003 | Mercedes-Benz | S500 | RWD | Front Left | — |
| 2003 | Mercedes-Benz | S55 AMG | — | Front Left | — |
| 2003 | Mercedes-Benz | S600 | — | Front Left | — |
| 2002 | Mercedes-Benz | S430 | — | Front Left | — |
| 2002 | Mercedes-Benz | S500 | — | Front Left | — |
| 2002 | Mercedes-Benz | S55 AMG | — | Front Left | — |
| 2002 | Mercedes-Benz | S600 | — | Front Left | — |
| 2001 | Mercedes-Benz | S430 | — | Front Left | — |
| 2001 | Mercedes-Benz | S500 | — | Front Left | — |
| 2001 | Mercedes-Benz | S55 AMG | — | Front Left | — |
| 2001 | Mercedes-Benz | S600 | — | Front Left | — |
| 2000 | Mercedes-Benz | S430 | — | Front Left | — |
| 2000 | Mercedes-Benz | S500 | — | Front Left | — |
