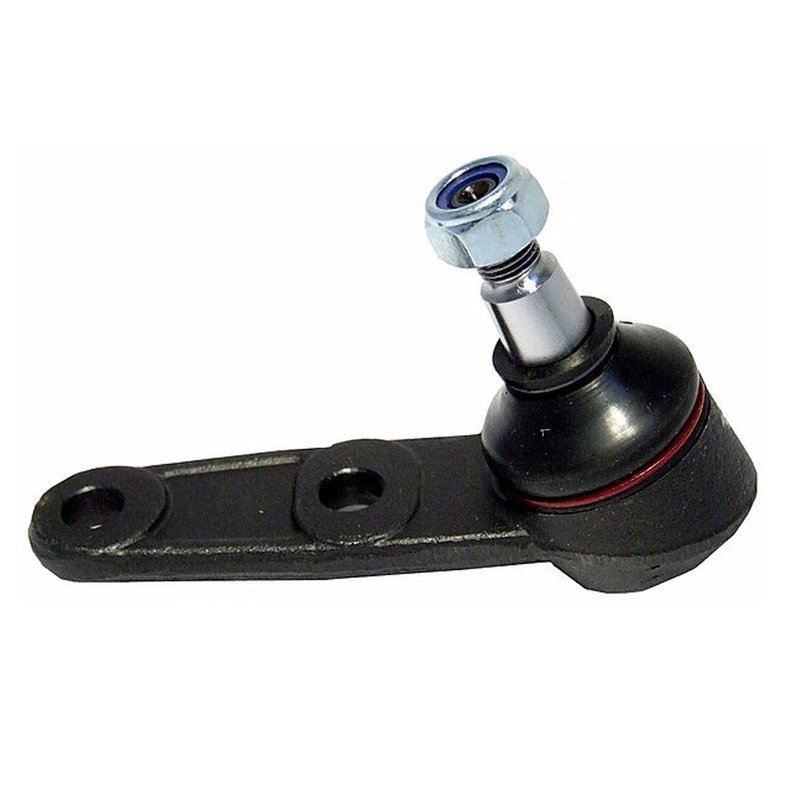

Delphi TC1501 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint TC1501 Overview

The Delphi TC1501 suspension ball joint is engineered for reliable performance in Chevrolet Aveo, Pontiac Wave, and Suzuki Swift+ models. Constructed from durable steel with a gray finish, this ball joint assembly is designed to maintain suspension integrity and vehicle handling.

• Made from high-strength steel for durability
• Includes castle nut, cotter pin, and grease fitting for secure installation and maintenance
• Features a chloroprene rubber dust boot to protect against contaminants
• Standard suspension grade type suitable for everyday driving conditions
• Compatible with Chevrolet Aveo, Pontiac Wave, Suzuki Swift+, and related models

Technical Specifications and Features

The Delphi TC1501 suspension ball joint measures 54 mm in length and width, with a maximum outside diameter of 54 mm (2.126 inches). The stud thread diameter is 15.875 mm (0.625 inches) with a tapered threaded stud and a stud thread length of 23.9 mm (0.941 inches). The assembly includes a dust boot made from chloroprene rubber, which helps prevent dirt and moisture from compromising the joint. The package also contains a castle nut, cotter pin, and grease fitting to facilitate proper installation and ongoing lubrication. This ball joint is not adjustable and does not include bushings, mounting hardware, washers, or a mount plate.

Application and Compatibility

This suspension ball joint is compatible with specific models including Chevrolet Aveo, Aveo5, Pontiac G3, G3 Wave, Suzuki Swift+, Wave, and Wave5. It is designed to replace worn or damaged ball joints in these vehicles, restoring suspension performance and steering precision.

• Restores smooth steering and suspension articulation
• Eliminates clunking noises caused by worn ball joints
• Prevents uneven tire wear due to suspension misalignment
• Improves vehicle stability and handling response
• Reduces vibration and harshness from suspension play

Installation Notes and Tips

When installing the Delphi TC1501 ball joint, ensure the vehicle is securely lifted and supported. Use the included castle nut and cotter pin to secure the stud properly, preventing loosening during operation. The grease fitting allows for periodic lubrication, extending the service life of the ball joint. Verify that the dust boot is properly seated to protect the joint from contaminants. Since mounting hardware is not included, retain original components or source compatible hardware as needed.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The TC1501 ball joint undergoes rigorous quality control to provide consistent performance. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to support customer confidence in their products.
