Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

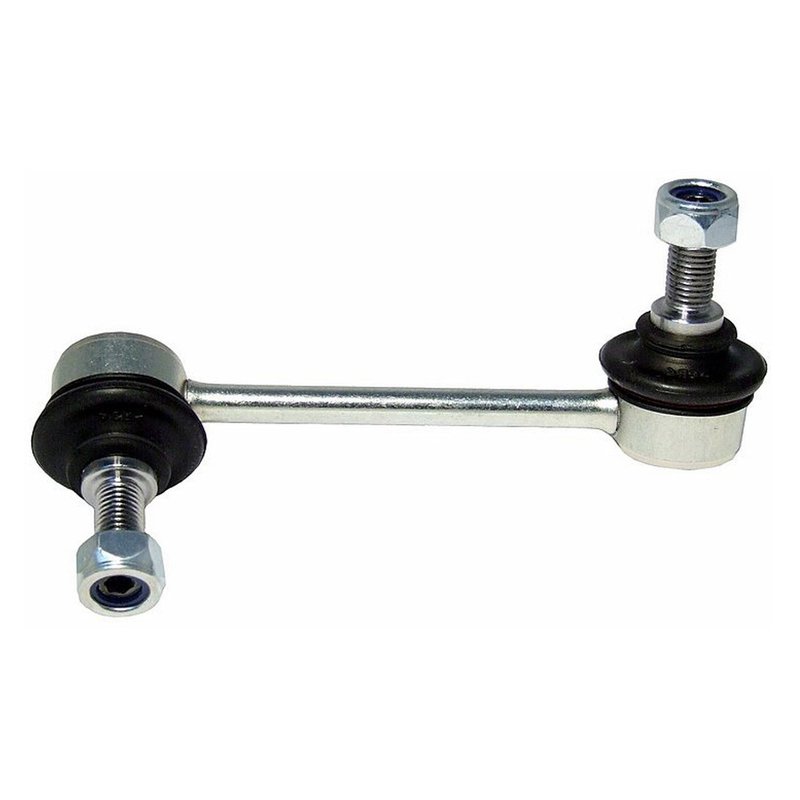

Delphi TC1532 Suspension Stabilizer Bar Link - Rear Right
| Brand | Delphi TC1532 |
|---|---|
| Position | Rear Right |
| Bearing Material | Polyoxymethilen (POM) |
| Bolt Length | 4.626 |
| Bolt Length | 117.5 |
| Bolt Thread Diameter | 0.39 |
| Bolt Thread Diameter | 10.0 |
| Bolt Thread Size | M10 x 1.25 |
| Bolts Included | No |
| Bushing Color | Black |
| Bushing Material | Rubber |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 2.362 |
| Height | 60.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 4.626 |
| Length | 117.5 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Weight | 0.56 |
| Width | 3.15 |
| Width | 80.0 |
| Fits | Hyundai · 6 vehicles |
Standard replacement. OE-style fit and function for straightforward service.
Steel construction. Built with a steel housing and ball joints at both ends.
Dust boot included. Helps protect the joint from dirt and moisture.
Cross-references Beck/Arnley 101-5380, Mevotech Supreme MK80507 and 536-343 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC1532 Rear Right Stabilizer Link
Delphi TC1532 is a rear right suspension stabilizer bar link built for OE-style replacement on select Hyundai applications. It is engineered with steel construction, ball joint ends, and a dust boot to support consistent sway bar connection and suspension response.
Fits 2001-2006 Hyundai Santa Fe, rear right.
Key Features
- Steel housing and steel construction for standard replacement use
- Ball joint ends on both sides for stabilizer bar linkage
- Dust boot included to help protect the joint area
- Black bushing color with rubber bushing material
- Polyoxymethylene (POM) bearing material
- M10 x 1.25 bolt thread size
- Locking nuts included
- Rear right position fitment
Detailed Description
Delphi TC1532 is a suspension stabilizer bar link for the rear right side of 2001-2006 Hyundai Santa Fe models. Delphi applies OE dimensional and material analysis to help match aftermarket fit and function to the original part, while the component is tested for temperature extremes and salt spray exposure to support durability in demanding road conditions. This part cross-references Mevotech Supreme MK80507 for the same application.
What It Helps Address
- Clunking or rattling from the rear suspension
- Loose or inconsistent sway bar connection
- Excess body roll during cornering
- Worn ball joint movement at the stabilizer link
- Noise caused by deteriorated link components
Installation Notes
Verify rear right placement before installation on the Hyundai Santa Fe. Confirm bolt thread size, link length, and end type against the original component before removal. Inspect adjacent bushings, sway bar mounts, and suspension hardware for wear so the new link is installed into a serviceable assembly.
Quality Assurance
Delphi uses OE-focused engineering and material analysis for its aftermarket steering and suspension portfolio. The TC1532 is tested across extreme temperatures and salt spray exposure to support long-term performance in real-world driving conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | Rear Right | — |
| 2005 | Hyundai | Santa Fe | Rear Right | — |
| 2004 | Hyundai | Santa Fe | Rear Right | — |
| 2003 | Hyundai | Santa Fe | Rear Right | — |
| 2002 | Hyundai | Santa Fe | Rear Right | — |
| 2001 | Hyundai | Santa Fe | Rear Right | — |
| No rows match your filter. | ||||
