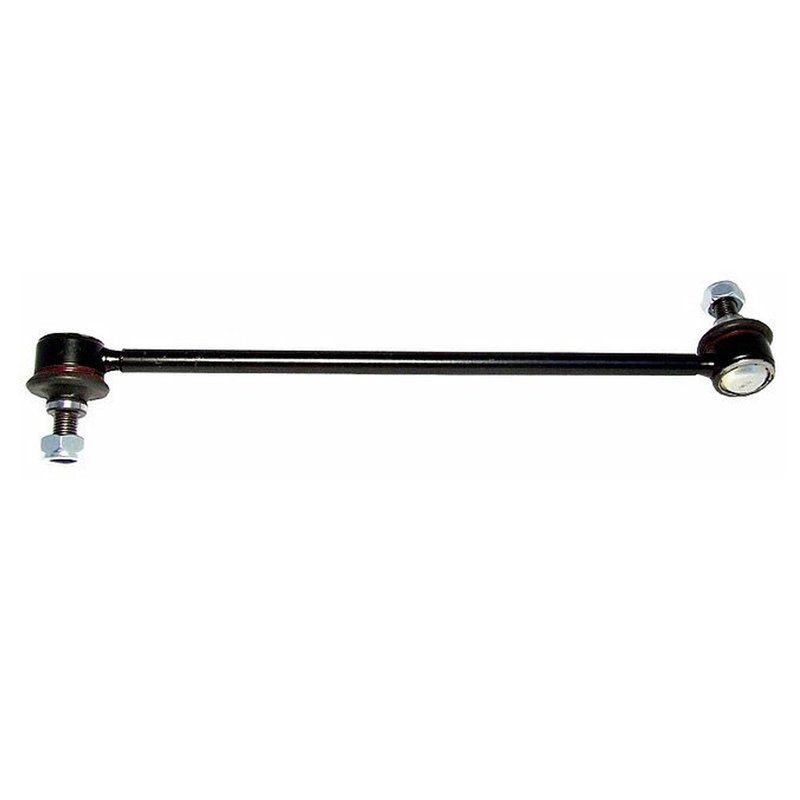

Delphi TC1540 Suspension Stabilizer Bar Link - Front Left

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC1540 Suspension Stabilizer Bar Link is engineered for reliable front left suspension performance on select Lexus and Toyota models. Designed with durable steel construction and equipped with ball joint ends, this stabilizer bar link supports vehicle stability and handling precision.

• Constructed from high-strength steel for durability
• Front left position fitment for Lexus and Toyota vehicles
• Ball joint ends on both sides for smooth articulation
• Includes dust boot to protect joint components
• Black rubber bushings for vibration dampening (bushings not included)
• Locking nuts included for secure installation
• Compatible with Lexus RX300 and Toyota Avalon, Camry, ES300, Solara

Technical Specifications and Features

The TC1540 stabilizer bar link measures 11.22 inches (285 mm) in length with a width of approximately 1.417 inches (36 mm) and a height of 3.346 inches (85 mm). Both ends feature ball joints that provide reliable pivot points, constructed with polyoxymethylen (POM) bearing material for low friction and long service life. The housing and main body are made from steel, ensuring structural integrity under regular driving conditions. This part is designed as a standard replacement grade component and is not greaseable, but it includes a dust boot to protect the joint from contaminants. The bolt thread size is M10 x 1.25 with a bolt length of 11.22 inches (285 mm), and locking nuts are included to maintain secure attachment during operation.

Compatible Vehicles and Applications

This Delphi suspension stabilizer bar link TC1540 is compatible with front left suspension systems on various Lexus and Toyota models, including:

• Lexus RX300
• Toyota Avalon
• Toyota Camry
• Toyota ES300
• Toyota Solara

It is designed to replace worn or damaged stabilizer bar links to restore proper suspension function and vehicle handling.

Common Issues Addressed by the TC1540 Stabilizer Bar Link

• Excessive body roll during cornering
• Clunking or rattling noises from the front suspension
• Uneven tire wear due to suspension instability
• Loose or imprecise steering feel
• Worn or damaged stabilizer bar link components

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before installation
• Remove the old stabilizer bar link carefully to avoid damage to surrounding components
• Verify the correct orientation of the ball joint ends during installation
• Use the included locking nuts to secure the stabilizer bar link firmly
• Check suspension alignment after installation for optimal performance

Quality Assurance and Warranty

The Delphi TC1540 suspension stabilizer bar link is manufactured to meet standard replacement grade specifications, ensuring consistent fit and function. The steel construction and quality materials provide dependable service life under normal driving conditions. Locking nuts are included to maintain secure installation. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
