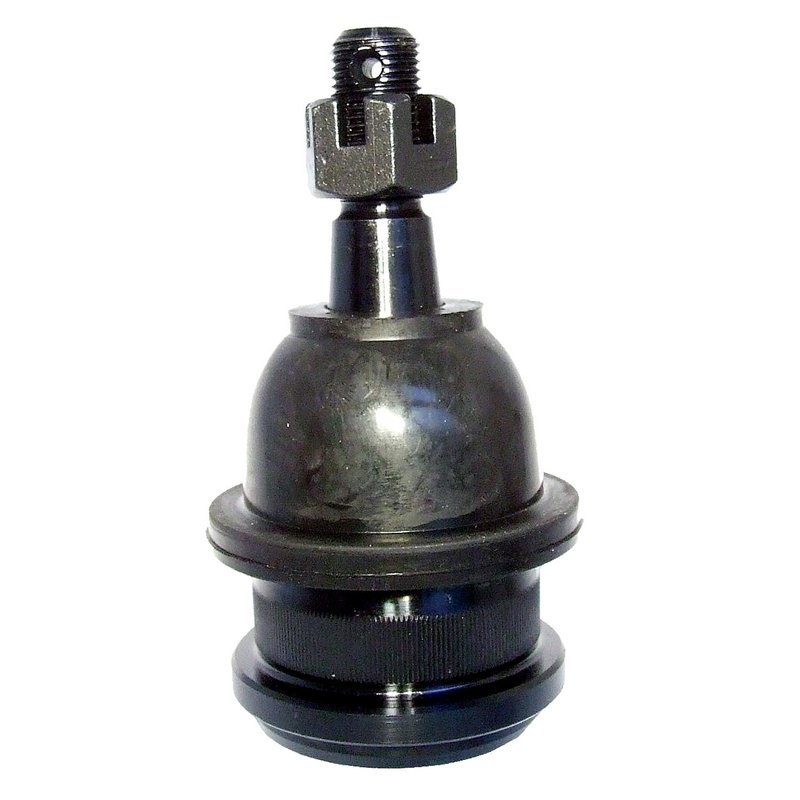

Delphi TC1605 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint TC1605 Overview

The Delphi TC1605 suspension ball joint is engineered for reliable performance in Chevrolet and GMC trucks and SUVs. Designed with durable steel construction and essential hardware included, this ball joint supports smooth steering and suspension operation for models like the Chevrolet Blazer and GMC Jimmy.

• Constructed from high-strength steel for durability
• Includes castle nut, cotter pin, grease fitting, and mounting hardware
• Equipped with a chloroprene rubber dust boot for protection
• Pressed mounting type with threaded stud for secure fit
• Compatible with Chevrolet and GMC trucks and SUVs including Blazer, C10, K5 Blazer, and P1500

Technical Specifications and Features

The TC1605 ball joint features a maximum outside diameter of 2.323 inches (59.0 mm) and a length of 59 mm, providing a precise fit for suspension systems. The stud thread diameter measures 0.625 inches (15.875 mm) with a stud thread length of 1.102 inches (28.0 mm), ensuring compatibility with factory mounting points. The assembly includes a dust boot made from chloroprene rubber (CR) to resist wear and contamination. This standard suspension grade ball joint comes with a castle nut, cotter pin, and grease fitting to facilitate maintenance and secure installation.

Compatible Vehicles and Applications

This Delphi suspension ball joint TC1605 is compatible with a range of Chevrolet and GMC models, including:

• Chevrolet Blazer, C10, C10 Suburban, C1500, C1500 Suburban
• GMC G10, G20, Jimmy, K5 Blazer
• Chevrolet and GMC P10, P30, P1500, P3500, R10, R10 Suburban, R1500, R1500 Suburban

Common Suspension Issues Addressed

• Eliminates excessive play or looseness in steering components
• Prevents uneven tire wear caused by worn ball joints
• Reduces suspension noise and vibrations
• Restores proper wheel alignment and handling
• Protects suspension components from dirt and moisture with dust boot

Installation Notes and Tips

Installation of the Delphi TC1605 ball joint requires pressing the unit into the control arm and securing it with the included castle nut and cotter pin. The grease fitting allows for periodic lubrication to extend service life. Use a 24 mm wrench for the stud nut and ensure the cotter pin is properly installed through the cotter pin hole to prevent loosening. This ball joint is not adjustable and is designed for direct replacement on compatible Chevrolet and GMC models.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The TC1605 ball joint undergoes rigorous quality control to provide consistent performance. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship to support long-term durability.
