Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

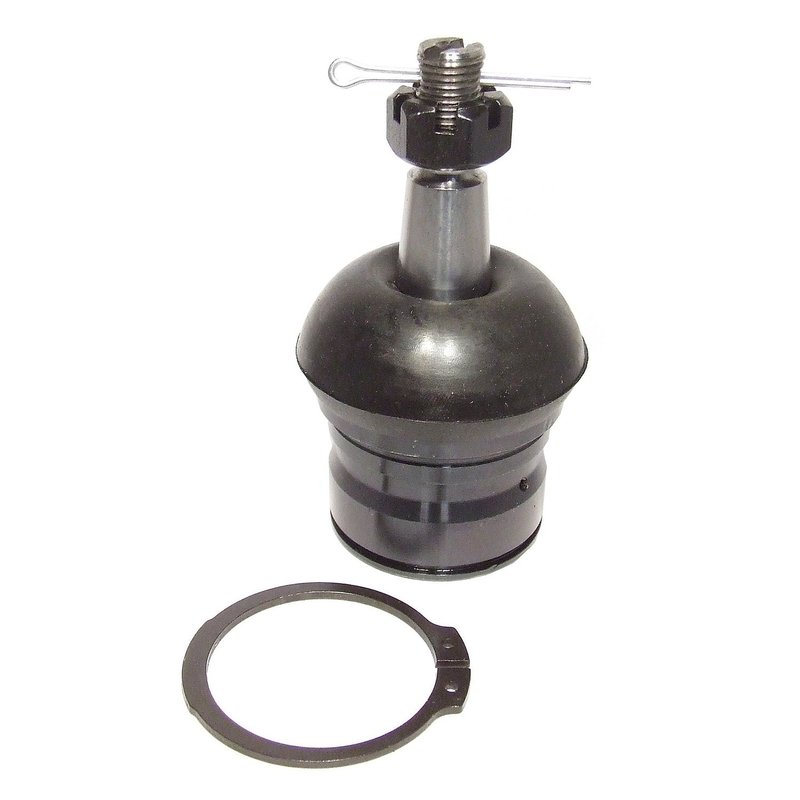

Delphi TC1626 Suspension Ball Joint - Front Lower
| Brand | Delphi TC1626 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Gray |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 4.055 |
| Height | 67.0 |
| Item Grade | Standard Replacement |
| Length | 455 |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.165 |
| Maximum Outside Diameter | 55.0 |
| Mount Plate Included | No |
| Mounting Bolts Included | No |
| Mounting Hardware Included | Yes |
| Mounting Type | Press In |
| Nuts Included | Yes |
| Stud Taper Per Foot | 0.167 |
| Stud Tapered End 1 Diameter | 0.78 |
| Stud Tapered End 1 Diameter | 19.8 |
| Stud Tapered End 2 Diameter | 0.642 |
| Stud Tapered End 2 Diameter | 16.3 |
| Stud Thread Diameter | 0.563 |
| Stud Thread Length | 1.004 |
| Stud Threads Per Inch | 18 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | Yes |
| Width | 55.0 |
| Fits | Dodge · 15 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Press-in design. Includes mounting hardware, cotter pin, nuts, and washers.
Durable materials. Alloy steel ball and carbon steel housing with a dust boot.
Cross-references Baldwin B7155, Mevotech Supreme MK7155 and Mevotech Supreme MK7267 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC1626 Front Lower Ball Joint
Delphi TC1626 is a standard replacement suspension ball joint built for front lower applications on select Dodge Dakota and Dodge Durango models. It combines OE-focused dimensional control with durable materials to support precise steering and suspension movement.
Key Features
- Fits front lower suspension positions on 1987-1999 Dodge Dakota and 1998-1999 Dodge Durango
- Press-in ball joint assembly with tapered threaded stud
- Ball material: Alloy Steel SAE 5140; housing material: Carbon Steel SAE 1040
- Dust boot included with chloroprene rubber construction
- Castle nut, cotter pin, washers, nuts, and mounting hardware included
- Standard suspension grade replacement with non-greaseable design
- OE-focused dimensional and material analysis for fit consistency
Detailed Description
Delphi TC1626 is engineered as a front lower suspension ball joint for Dodge Dakota and Dodge Durango applications. Delphi applies OE-level dimensional and material analysis to help ensure proper compatibility between the replacement part and the original suspension geometry. The ball joint uses alloy steel SAE 5140 for the ball and carbon steel SAE 1040 for the housing, with a chloroprene rubber dust boot to help protect the joint from road contamination. This part number, TC1626, is a direct-fit style replacement for drivers servicing worn front lower suspension components on Dakota and Durango trucks and SUVs.
This part cross-references MOOG Chassis Products K7267 for the same application.
What It Helps Address
- Front-end looseness or play from a worn lower ball joint
- Clunking or knocking noises from the front suspension
- Uneven tire wear related to suspension joint wear
- Steering wander or reduced directional stability
- Inspection failure caused by excessive ball joint movement
Installation Notes and Tips
Fits 1987-1999 Dodge Dakota, front lower. Fits 1998-1999 Dodge Durango, front lower. This is a press-in style ball joint, so proper suspension service tools and correct press alignment are important during installation. Verify stud taper, mounting bore condition, and surrounding control arm wear before assembly. The included dust boot, castle nut, cotter pin, washers, and nuts support a complete service installation where applicable.
Quality Assurance
Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including exposure below -40 degrees C, above 120 degrees C, and 720 hours of salt spray. That testing supports OE-style durability for the Delphi TC1626 in front lower suspension service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Dakota | 4WD | Front Lower | — |
| 1999 | Dodge | Durango | 4WD | Front Lower | — |
| 1998 | Dodge | Dakota | 4WD | Front Lower | — |
| 1998 | Dodge | Durango | 4WD | Front Lower | — |
| 1997 | Dodge | Dakota | 4WD | Front Lower | — |
| 1996 | Dodge | Dakota | 4WD | Front Lower | — |
| 1995 | Dodge | Dakota | 4WD | Front Lower | — |
| 1994 | Dodge | Dakota | 4WD | Front Lower | — |
| 1993 | Dodge | Dakota | 4WD | Front Lower | — |
| 1992 | Dodge | Dakota | 4WD | Front Lower | — |
| 1991 | Dodge | Dakota | 4WD | Front Lower | — |
| 1990 | Dodge | Dakota | 4WD | Front Lower | — |
| 1989 | Dodge | Dakota | 4WD | Front Lower | — |
| 1988 | Dodge | Dakota | 4WD | Front Lower | — |
| 1987 | Dodge | Dakota | 4WD | Front Lower | — |
