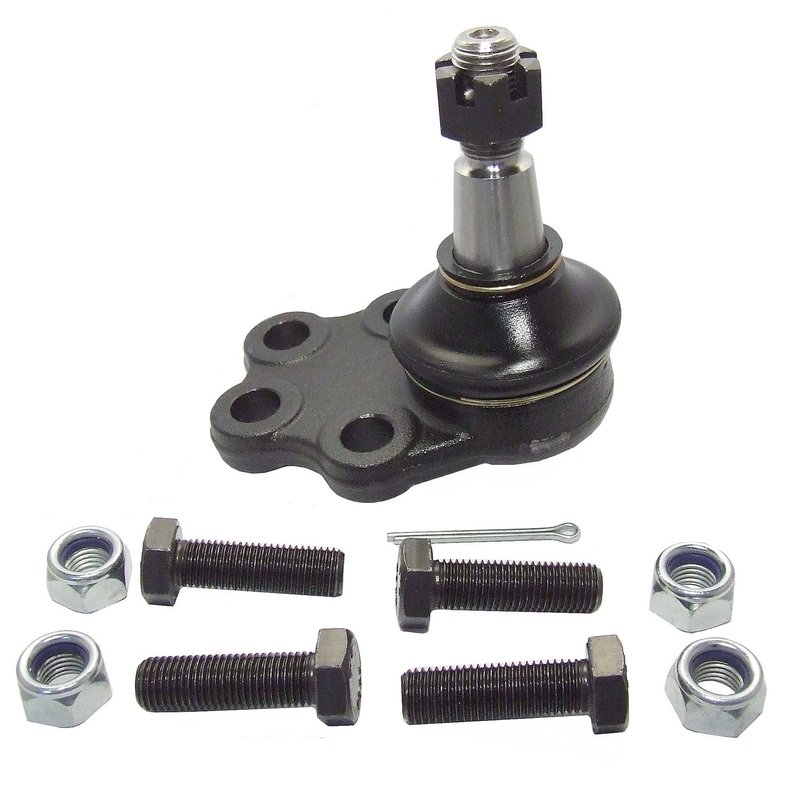

Delphi TC1627 Suspension Ball Joint - Front Lower
| Brand | Delphi TC1627 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Gray |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 4.488 |
| Height | 114.0 |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 3.268 |
| Maximum Outside Diameter | 83.0 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 0.827 |
| Mounting Bolt Head Diameter | 21.0 |
| Mounting Bolt Length | 1.575 |
| Mounting Bolt Length | 40.0 |
| Mounting Bolt Shank Diameter | 12.0 |
| Mounting Bolt Thread Length | 30.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 4 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Taper Per Foot | 0.167 |
| Stud Tapered End 1 Diameter | 0.953 |
| Stud Tapered End 1 Diameter | 24.2 |
| Stud Tapered End 2 Diameter | 0.769 |
| Stud Tapered End 2 Diameter | 19.53 |
| Stud Thread Diameter | 16.0 |
| Stud Thread Length | 1.142 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | Yes |
| Width | 105.0 |
| Wrench Size | 19.0 |
| Fits | Dodge · 2 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the original part.
Bolt-on installation. Mounting hardware, nuts, washers, and cotter pin are included.
Durable materials. Alloy steel ball and carbon steel housing are paired with a dust boot.
Cross-references MAS Industries B7365, Mevotech Supreme MK7365 and MOOG Chassis Products K7365 for the same application. See all 3.
Front Lower Ball Joint for Ram 1500
Delphi TC1627 is a front lower suspension ball joint built for 2000-2001 Dodge Ram 1500 applications. It combines OE-based dimensional analysis with materials selected for demanding road conditions, making it a direct replacement for the front lower position on the Ram 1500.
- Fits 2000-2001 Dodge Ram 1500, front lower
- Standard replacement suspension ball joint assembly
- Ball material: alloy steel SAE 5140
- Housing material: carbon steel SAE 1040
- Dust boot included with chloroprene rubber construction
- Castle nut, cotter pin, nuts, washers, and mounting bolts included
- Bolt-on mounting type with 4 mounting holes
- Non-greaseable, sealed design
- Tapered stud with threaded stud design
OE-Style Construction
Delphi TC1627 is engineered as a standard replacement suspension ball joint for the front lower suspension on the Dodge Ram 1500. The ball joint uses alloy steel and carbon steel construction, a tapered stud, and a dust boot to help maintain proper steering and suspension articulation. Delphi applies OE dimensional and material analysis to support accurate fitment between the original part and the aftermarket replacement.
This part cross-references MOOG Chassis Products K7365 for the same application.
Common Repair Symptoms
- Front-end clunking or popping over bumps
- Excessive play in the lower suspension joint
- Uneven tire wear related to worn front suspension components
- Loose or imprecise steering feel
- Inspection failure caused by worn ball joint movement
Installation Notes
Verify front lower fitment before installation on 2000-2001 Dodge Ram 1500 models. The bolt-on design uses the included mounting hardware, and the tapered stud should be seated and torqued to the vehicle specification. Because this is a non-greaseable ball joint, routine service is not performed through a grease fitting.
Quality Assurance
Delphi subjects its steering and suspension parts to extreme temperature testing below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure. These validation steps support corrosion resistance and durability for real-world driving conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Dodge | Ram 1500 | RWD | Front Lower | — |
| 2000 | Dodge | Ram 1500 | RWD | Front Lower | — |
