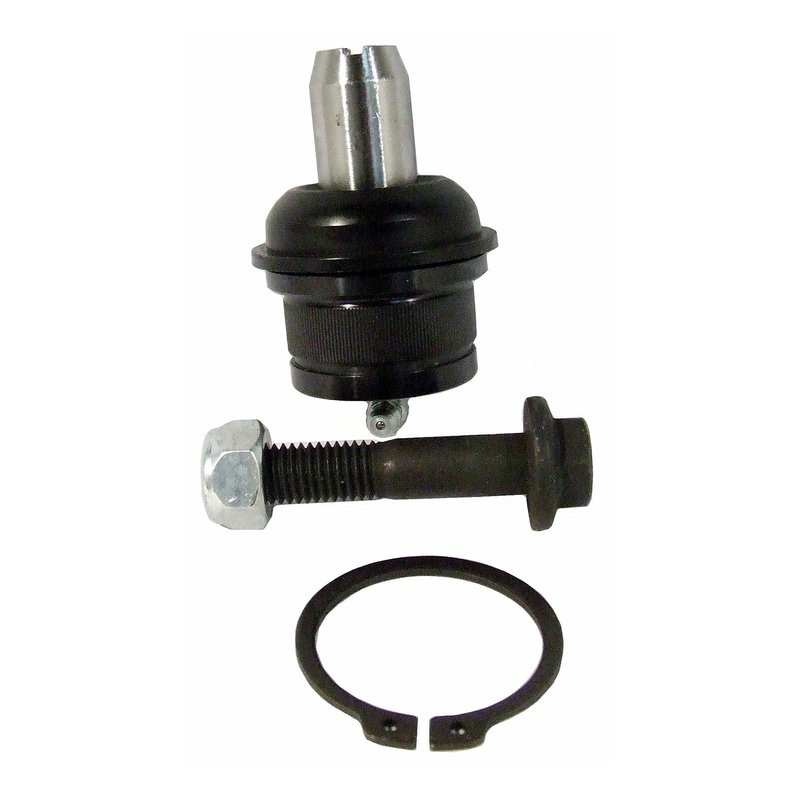

Delphi TC1664 Suspension Ball Joint - Front Upper

Delphi Suspension Ball Joint TC1664 Overview

The Delphi Suspension Ball Joint TC1664 is engineered for reliable suspension performance in select Ford and Mazda vehicles. Designed with durable steel construction and a greaseable design, this ball joint supports smooth steering and suspension articulation for models like the Ford Ranger and Mazda B2300.

• Constructed from high-strength steel for durability
• Includes a grease fitting for easy maintenance
• Equipped with a chloroprene rubber dust boot to protect against contaminants
• Comes with mounting hardware and nuts for straightforward installation
• Standard suspension grade type suitable for everyday driving conditions

Technical Specifications and Features

The TC1664 suspension ball joint features a maximum outside diameter of 2.106 inches (53.5 mm) and a height of 3.307 inches (84.0 mm), providing precise fitment for compatible vehicles. The mounting bolt length measures 2.815 inches (71.5 mm) with a shank diameter of 0.472 inches (12.0 mm) and a head diameter of 1.043 inches (26.5 mm). This ball joint assembly includes a dust boot made from chloroprene rubber (CR), which offers resistance to wear and environmental elements. The greaseable design allows for routine lubrication, extending the service life of the component. While the castle nut and cotter pin are not included, the necessary mounting hardware and nuts are provided to facilitate installation.

Compatible Vehicles and Applications

This Delphi suspension ball joint TC1664 is compatible with various Ford and Mazda models, including the Ford B2300, B3000, B4000, Bronco II, Explorer, Ranger, and the Mazda Navajo. It is designed to replace worn or damaged ball joints in these vehicles, restoring proper suspension function and steering control.

• Restores smooth steering and suspension articulation
• Eliminates excessive play or looseness in the suspension
• Prevents uneven tire wear caused by faulty ball joints
• Reduces suspension noise and vibrations
• Improves overall vehicle handling and safety

Installation Notes and Tips

Installation of the Delphi TC1664 ball joint requires basic suspension knowledge and appropriate tools. Ensure the vehicle is securely lifted and supported before beginning work. The included mounting hardware and nuts simplify the replacement process, but note that the castle nut and cotter pin are not included and may need to be sourced separately. Regular greasing through the included grease fitting is recommended to maintain optimal performance and extend the ball joint's lifespan.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The TC1664 ball joint undergoes rigorous quality control to provide consistent fit and function. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to support customer confidence in their products.
