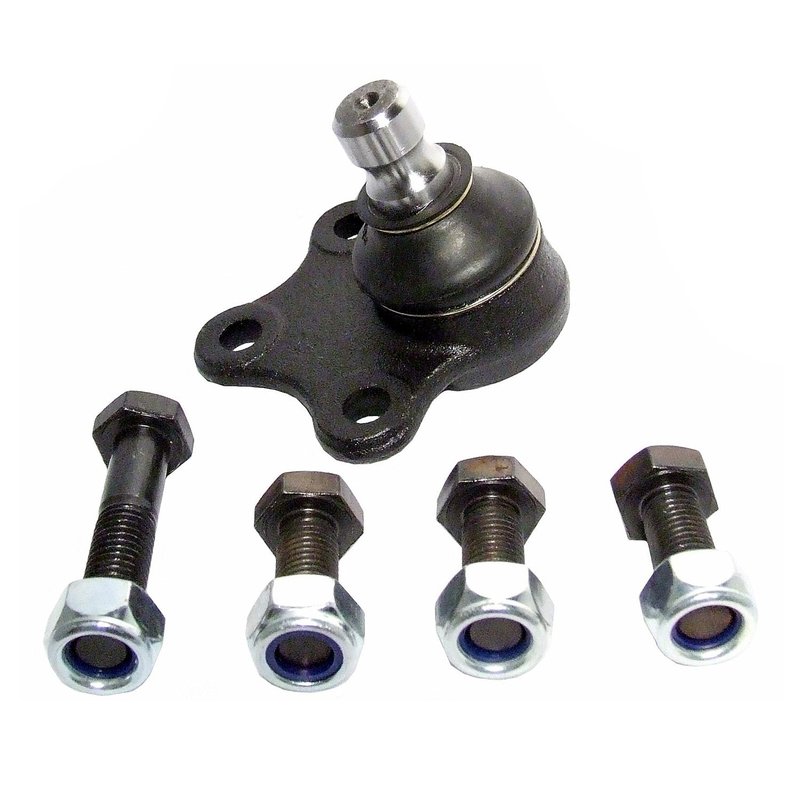

Delphi TC1670 Suspension Ball Joint - Front Lower
| Brand | Delphi TC1670 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Gray |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 2.874 |
| Item Grade | Standard Replacement |
| Length | 88 |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.772 |
| Maximum Outside Diameter | 45.0 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 0.748 |
| Mounting Bolt Head Diameter | 19.0 |
| Mounting Bolt Length | 1.181 |
| Mounting Bolt Length | 30.0 |
| Mounting Bolt Shank Diameter | 10.0 |
| Mounting Bolt Thread Length | 28.0 |
| Mounting Bolt Thread Pitch | 1.5 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Thread Length | 0.768 |
| Stud Type | Non-Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | No |
| Washers Included | No |
| Width | 91.0 |
| Wrench Size | 17.0 |
| Fits | Mercury and Ford · 16 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Bolt-on installation. Includes mounting hardware for a straightforward install.
Alloy steel construction. Built with a dust boot for added protection.
Cross-references Dorman - OE Solutions 520-201, Dorman - OE Solutions 520-202 and Dorman - OE Solutions 520-203 for the same application. See all 36.
Delphi TC1670 Front Lower Ball Joint
Delphi TC1670 is a standard replacement suspension ball joint for the front lower position on select Ford and Mercury applications. It is built with OE-focused dimensional and material analysis to support proper fit and consistent steering and suspension performance.
Key Features
- Front lower suspension ball joint assembly
- Standard replacement grade for everyday service
- Ball material: Alloy Steel SAE 5140
- Housing material: Carbon Steel SAE 1040
- Dust boot included with chloroprene rubber construction
- Bolt-on mounting design with mounting hardware included
- Non-greaseable design with no grease fitting
- Gray finish
Detailed Description
Delphi TC1670 is engineered for the front lower suspension position and is a direct service part for 1995-2000 Ford Contour, 1995-2000 Mercury Mystique, and 1999-2002 Mercury Cougar applications. For 2001 Mercury Cougar models, this part applies to vehicles with 4 bolt holes. Delphi validates parts through extreme temperature exposure and salt-spray testing, helping confirm durability in demanding road conditions. This part cross-references MOOG Chassis Products K8683 for the same application.
What It Helps Address
- Excessive front-end looseness or play
- Clunking or knocking from the lower suspension area
- Uneven steering response caused by worn ball joint components
- Suspension noise during turning or road impacts
- Restoration of proper front lower joint articulation
Installation Notes and Tips
Verify the vehicle’s front lower mounting style before installation, especially on 2001 Mercury Cougar models with 4 bolt holes. Confirm bolt pattern, mounting hole quantity, and suspension position against the removed part before service. Delphi TC1670 uses a bolt-on design and includes mounting bolts and nuts; no grease fitting is provided, so service access is not required after installation.
Quality Assurance
Delphi applies OE-level engineering practices to its aftermarket steering and suspension portfolio. The part is tested for temperature extremes and corrosion resistance, and its materials are selected to support OE-style compatibility and long-term service performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Mercury | Cougar | Front Lower | — |
| 2001 | Mercury | Cougar | Front Lower | with 4 Bolt Holes |
| 2000 | Ford | Contour | Front Lower | — |
| 2000 | Mercury | Cougar | Front Lower | — |
| 2000 | Mercury | Mystique | Front Lower | — |
| 1999 | Ford | Contour | Front Lower | — |
| 1999 | Mercury | Cougar | Front Lower | — |
| 1999 | Mercury | Mystique | Front Lower | — |
| 1998 | Ford | Contour | Front Lower | — |
| 1998 | Mercury | Mystique | Front Lower | — |
| 1997 | Ford | Contour | Front Lower | — |
| 1997 | Mercury | Mystique | Front Lower | — |
| 1996 | Ford | Contour | Front Lower | — |
| 1996 | Mercury | Mystique | Front Lower | — |
| 1995 | Ford | Contour | Front Lower | — |
| 1995 | Mercury | Mystique | Front Lower | — |
