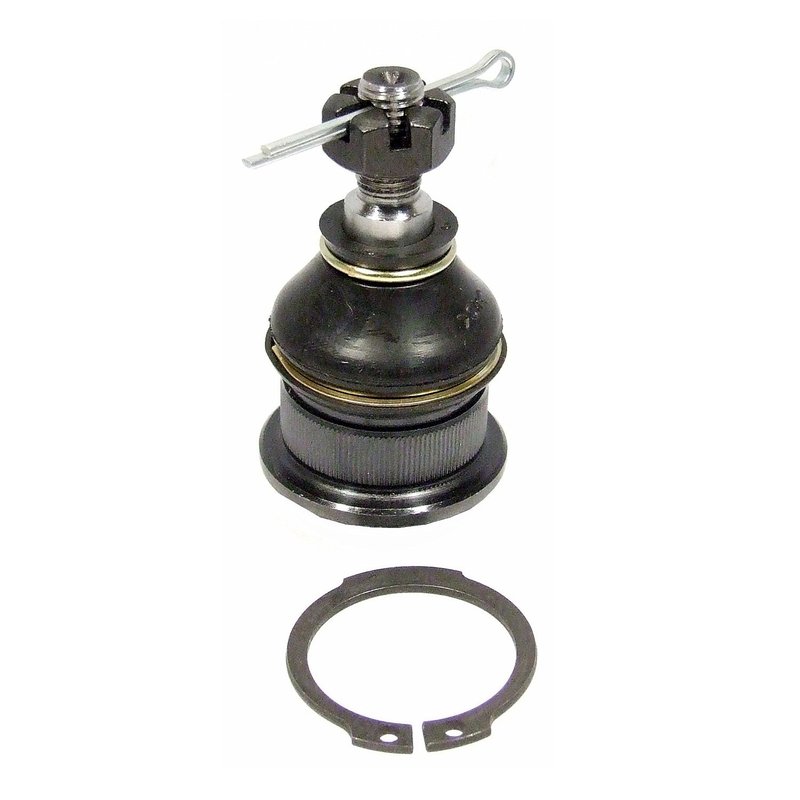

Delphi TC1689 Suspension Ball Joint - Rear Upper
| Brand | Delphi TC1689 |
|---|---|
| Position | Rear Upper |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Gray |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 2.835 |
| Item Grade | Standard Replacement |
| Length | 72 |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.555 |
| Maximum Outside Diameter | 39.5 |
| Mount Plate Included | No |
| Mounting Bolts Included | No |
| Mounting Hardware Included | Yes |
| Mounting Type | Press In |
| Nuts Included | Yes |
| Stud Taper Per Foot | 0.1 |
| Stud Tapered End 1 Diameter | 0.551 |
| Stud Tapered End 1 Diameter | 14.0 |
| Stud Tapered End 2 Diameter | 0.512 |
| Stud Tapered End 2 Diameter | 13.0 |
| Stud Thread Diameter | 10.0 |
| Stud Thread Length | 0.827 |
| Stud Thread Pitch | 1.25 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 39.5 |
| Fits | Honda · 4 vehicles |
OE expertise. Delphi applies OE engineering to its aftermarket steering portfolio.
Standard replacement. Built as a press-in suspension ball joint for straightforward service.
Durable materials. Alloy steel ball and carbon steel housing help deliver lasting strength.
Cross-references Dorman - OE Solutions 520-646, Dorman - Premium CB9926PR and Mevotech Supreme MK9736 for the same application. See all 13.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC1689 Rear Upper Ball Joint
Delphi TC1689 is a standard replacement suspension ball joint built for rear upper applications on select Honda Accord models. It combines OE-based dimensional analysis with materials chosen for durability, making it a direct-fit option for restoring suspension geometry and steering response.
Key Features
- Fits 1986-1989 Honda Accord, rear upper
- Press-in ball joint assembly for the rear suspension
- Ball material: Alloy Steel SAE 5140
- Housing material: Carbon Steel SAE 1040
- Dust boot included with chloroprene rubber construction
- Castle nut, cotter pin, nuts, and mounting hardware included
- Threaded tapered stud with 10.0 mm thread diameter and 1.25 pitch
- Non-greaseable, standard replacement design
Detailed Description
Delphi TC1689 is engineered for the rear upper position on 1986-1989 Honda Accord models. Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and consistent suspension performance, and the part is tested across extreme temperature and corrosion conditions to verify durability. The Delphi TC1689 also cross-references Dorman - OE Solutions 520-646 for the same application.
Built as a press-in ball joint assembly, this component uses an alloy steel ball and carbon steel housing with a protective dust boot to help maintain joint integrity in everyday driving conditions. The threaded tapered stud, included cotter pin hole, and supplied castle nut support secure installation in the rear upper suspension location.
Common Repair Uses
- Restoring rear suspension joint movement on a Honda Accord
- Addressing looseness or play in the rear upper suspension
- Correcting clunking or knocking from worn ball joint components
- Replacing a damaged dust boot or corroded joint assembly
- Recovering stable alignment and suspension control
Installation Notes and Tips
Fits 1986-1989 Honda Accord, rear upper. This is a press-in suspension ball joint, so proper removal and installation tools are required. Inspect the surrounding control arm and mounting bore before installation, and verify stud taper, thread pitch, and hardware fitment during assembly. Because this part is non-greaseable, routine inspection of the dust boot and joint condition is important during service intervals.
Quality Assurance
Delphi uses OE-based engineering practices and validates parts through temperature cycling and salt-spray exposure testing to support long-term durability. The TC1689 is built to standard replacement specifications for the rear upper suspension position on select Honda Accord applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Honda | Accord | Rear Upper | — |
| 1988 | Honda | Accord | Rear Upper | — |
| 1987 | Honda | Accord | Rear Upper | — |
| 1986 | Honda | Accord | Rear Upper | — |
