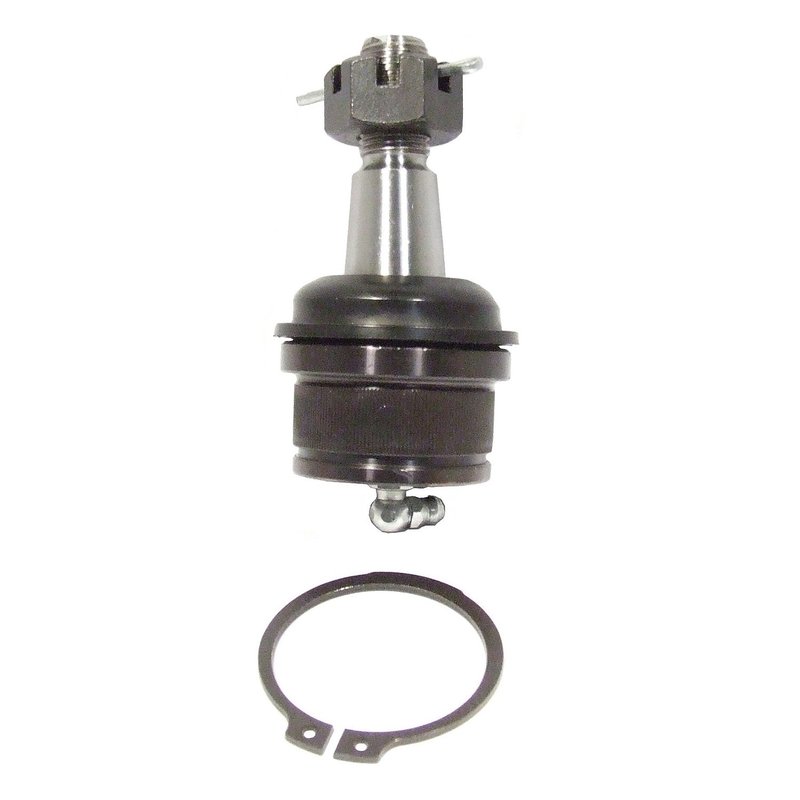

Delphi TC1696 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint for Ford E-150 Models

The Delphi TC1696 suspension ball joint is engineered for reliable performance in Ford E-150, E-150 Club Wagon, E-150 Econoline, and E-150 Econoline Club Wagon vehicles. Designed with durable materials and essential hardware, this ball joint supports smooth steering and suspension operation.

• Constructed with alloy steel SAE 5140 ball and carbon steel housing for strength
• Maximum outside diameter of 2.008 inches (51.0 mm) and length of 108 mm
• Includes castle nut, cotter pin, washers, and mounting hardware for complete installation
• Greaseable design with grease fitting included for maintenance
• Equipped with a chloroprene rubber dust boot to protect against contaminants
• Press-in mounting type with tapered threaded stud (0.625 inch diameter)
• Standard suspension grade type suitable for typical driving conditions

Durable Construction and Design Features

The Delphi TC1696 ball joint features a robust alloy steel ball combined with a carbon steel housing to withstand the stresses of suspension movement. Its 2.008 inch maximum outside diameter and 108 mm length provide a precise fit for Ford E-150 series vehicles. The inclusion of a chloroprene rubber dust boot helps prevent dirt and moisture intrusion, extending the service life of the joint. The threaded stud with a tapered end ensures secure mounting, while the grease fitting allows for easy lubrication to maintain smooth operation.

Compatible Ford E-150 Suspension Replacement

This suspension ball joint is compatible with Ford E-150, E-150 Club Wagon, E-150 Econoline, and E-150 Econoline Club Wagon models. The part number TC1696 matches OEM specifications, making it a suitable replacement for worn or damaged ball joints in these vehicles.

Common Suspension Issues Addressed

• Excessive play or looseness in steering components
• Uneven tire wear due to suspension misalignment
• Clunking or knocking noises from front suspension
• Difficulty maintaining vehicle stability and control
• Grease leakage or dust boot damage leading to premature wear

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Use appropriate tools to press out the old ball joint and press in the new one
• Verify the tapered stud fits correctly and torque the castle nut to manufacturer specifications
• Install the included cotter pin to secure the castle nut
• Grease the ball joint through the fitting after installation for optimal performance

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet industry standards for durability and performance. The TC1696 ball joint includes all necessary mounting hardware and protective features to ensure reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty against defects in materials and workmanship.
