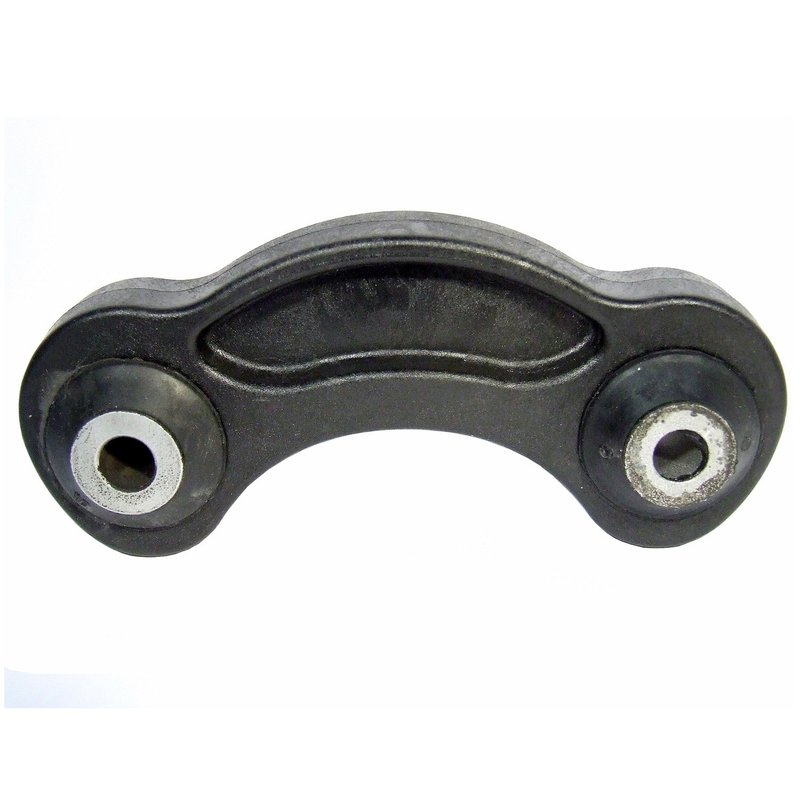

Delphi TC1781 Suspension Stabilizer Bar Link Kit - Rear

Delphi Rear Suspension Stabilizer Bar Link Kit Overview

The Delphi TC1781 Suspension Stabilizer Bar Link Kit is designed specifically for rear suspension systems on Audi A6, A6 Quattro, and S6 models. This kit includes natural rubber bushings and is engineered to maintain proper suspension alignment and handling performance.

• Compatible with Audi A6, A6 Quattro, and S6 rear suspension
• Includes black natural rubber bushings for durability
• Standard replacement grade for reliable performance
• Length: 100 mm (3.937 inches) with bushing ends on both sides
• Pre-greased bushings not included; maintenance-free design

Technical Details and Specifications

The Delphi TC1781 features bushings made from natural rubber, providing effective vibration dampening and noise reduction. Both ends of the stabilizer bar link use bushing-type connections, ensuring a secure fit within the rear suspension assembly. The link measures 100 mm (3.937 inches) in length, with a bushing inside diameter of 10.1 mm (0.40 inches). This kit does not include grease fittings, dust boots, washers, bolts, or locking nuts, reflecting its design as a straightforward, standard replacement part. Weighing approximately 0.42 kg, the TC1781 is intended for rear suspension use only.

Application and Problem Resolution

This suspension stabilizer bar link kit is compatible with the rear suspension of Audi A6, A6 Quattro, and S6 vehicles. It is used to connect the stabilizer bar to the suspension components, helping to reduce body roll and improve vehicle stability during cornering.

• Reduces excessive body roll and sway during turns
• Eliminates clunking noises caused by worn stabilizer links
• Restores proper suspension geometry and handling
• Prevents premature tire wear due to suspension misalignment
• Improves overall ride comfort and control

Installation Notes and Tips

When installing the Delphi TC1781 stabilizer bar link kit, ensure the vehicle is securely lifted and supported. Remove the old stabilizer link carefully, noting the orientation of the bushings. Since this kit does not include bolts or locking nuts, reuse the original hardware if in good condition or replace with OEM parts. The bushings are not pre-greased and do not require additional lubrication. Tighten all fasteners to the manufacturer’s torque specifications to maintain suspension integrity.

Quality Assurance and Warranty

Delphi suspension components, including the TC1781 stabilizer bar link kit, meet standard replacement grade requirements for durability and performance. The natural rubber bushings provide reliable vibration isolation under normal driving conditions. While no specific warranty details are provided, Delphi parts typically adhere to industry standards for quality and fitment, ensuring compatibility with Audi A6, A6 Quattro, and S6 rear suspension systems.
