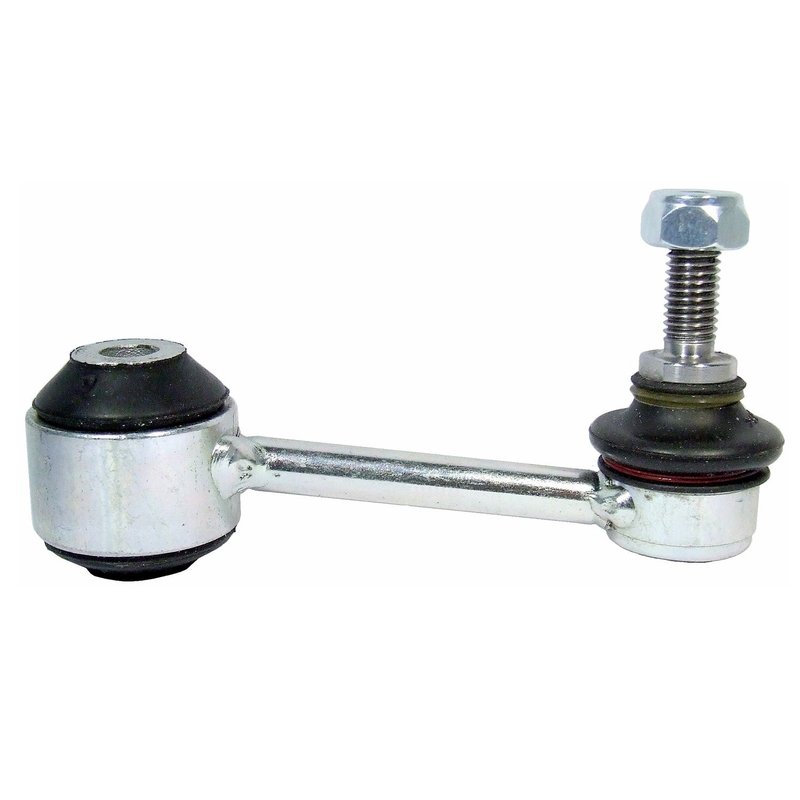

Delphi TC1782 Suspension Stabilizer Bar Link Kit - Rear

Delphi Suspension Stabilizer Bar Link Kit Overview

The Delphi TC1782 Suspension Stabilizer Bar Link Kit is designed specifically for rear suspension systems on Audi A6, A6 Quattro, and S6 models. This kit provides a reliable connection between the stabilizer bar and suspension components, helping to maintain vehicle stability and handling performance.

• Compatible with Audi A6, A6 Quattro, and S6 rear suspension
• Includes black natural rubber bushings and a dust boot for protection
• Pre-greased ball joint end for smooth operation
• Standard replacement grade with M10 bolt thread size and locking nuts included
• Constructed with durable polyoxymethylene (POM) bearing material

Technical Specifications and Features

The TC1782 features a 100 mm (3.937 inch) length stabilizer bar link with a ball joint on one end and a bushing on the other, designed to fit the rear suspension of select Audi models. The bushings are made from natural rubber (NR) in black, providing flexibility and vibration dampening. The included dust boot helps protect the ball joint from dirt and debris, extending the part's service life. This kit is pre-greased for immediate installation and smooth articulation but does not include grease fittings or additional bushings. The bolt thread diameter is M10 with a 1.5 pitch, and locking nuts are included to ensure secure fastening. The overall weight of the kit is approximately 0.64 kg.

Application and Problem Solving

This suspension stabilizer bar link kit is used to connect the stabilizer bar to the suspension, reducing body roll and improving handling stability. It is particularly suited for the rear suspension of Audi A6, A6 Quattro, and S6 vehicles. Common issues addressed by replacing this part include:

• Excessive body roll during cornering
• Clunking or knocking noises from the rear suspension
• Worn or damaged stabilizer bar link components
• Reduced handling precision and vehicle stability
• Vibration or looseness in the rear suspension system

Installation Notes and Tips

Installation of the Delphi TC1782 stabilizer bar link kit requires basic suspension knowledge and tools. The kit comes pre-greased and includes locking nuts but does not include bolts or washers, so ensure you have the correct hardware if needed. It is recommended to inspect related suspension components during installation and replace any worn parts. Proper torque specifications should be followed for the M10 bolts to maintain secure attachment and optimal performance.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The TC1782 kit is constructed with quality materials such as natural rubber bushings and polyoxymethylene bearings to withstand typical driving conditions. While specific warranty details are not provided, Delphi parts generally come with manufacturer-backed quality assurance to support fit, form, and function for compatible Audi A6, A6 Quattro, and S6 models.
