Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

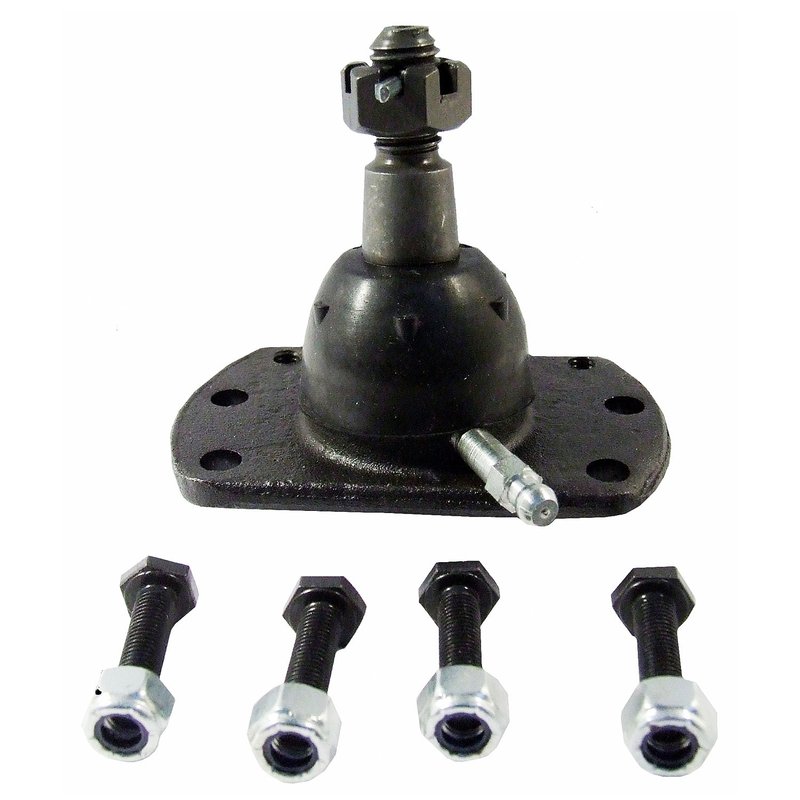

Delphi TC1848 Suspension Ball Joint - Front Lower
| Brand | Delphi TC1848 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Black |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Distance Between Mounting Holes | 84.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Height | 3.858 |
| Height | 98.0 |
| Item Grade | Standard Replacement |
| Length | 110 |
| Material | Steel |
| Maximum Outside Diameter | 1.929 |
| Maximum Outside Diameter | 49.0 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 1.047 |
| Mounting Bolt Head Diameter | 26.6 |
| Mounting Bolt Length | 1.26 |
| Mounting Bolt Length | 32.0 |
| Mounting Bolt Shank Diameter | 0.472 |
| Mounting Bolt Shank Diameter | 12.0 |
| Mounting Bolt Thread Diameter | 12.0 |
| Mounting Bolt Thread Length | 0.787 |
| Mounting Bolt Thread Length | 20.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.809 |
| Stud Tapered End 1 Diameter | 20.55 |
| Stud Tapered End 2 Diameter | 0.957 |
| Stud Tapered End 2 Diameter | 24.3 |
| Stud Thread Diameter | 0.63 |
| Stud Thread Diameter | 16.0 |
| Stud Thread Length | 1.051 |
| Stud Thread Length | 26.7 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 87.0 |
| Wrench Size | 0.63 |
| Wrench Size | 16.0 |
| Fits | Chevrolet, Oldsmobile, Buick, and Pontiac · 19 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the original part.
Steel construction. Built with a dust boot and black finish for added durability.
Bolt-on installation. Mounting hardware and nuts are included for a straightforward install.
Cross-references Mevotech Supreme MK5301, MOOG Chassis Products K5301 and 17988890 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Front Lower Ball Joint
Delphi TC1848 is a standard replacement suspension ball joint for select Chevrolet, Buick, Oldsmobile, and Pontiac applications. It is built with OE-focused dimensional and material analysis to support proper fit and consistent steering and suspension performance.
Fits 1995-2001 Chevrolet Lumina, front lower; Fits 1995-1999 Chevrolet Monte Carlo, front lower; Fits 1995-1997 Oldsmobile Cutlass Supreme, front lower; Fits 1995-1996 Buick Regal, front lower; Fits 1995-1996 Pontiac Grand Prix, front lower.
Key Features
- Delphi TC1848 suspension ball joint for front lower applications
- Steel construction with black finish
- Ball joint assembly included with dust boot
- Dust boot made from chloroprene rubber (CR)
- Bolt-on mounting type with 3 mounting holes
- Mounting hardware, nuts, and mounting bolts included
- Standard replacement grade for OE-style service work
- Threaded tapered stud design
Detailed Description
Delphi TC1848 is engineered for front lower suspension service on the Chevrolet Lumina, Chevrolet Monte Carlo, Oldsmobile Cutlass Supreme, Buick Regal, and Pontiac Grand Prix. The part uses a steel body, a threaded tapered stud, and a bolt-on mounting design to match the original suspension layout on the listed vehicles. Delphi applies OE-level dimensional and material analysis to help maintain proper compatibility between the replacement part and the original suspension geometry. This part cross-references MOOG Chassis Products K5301 for the same application.
Common Repair Uses
- Restoring worn front lower suspension joint movement
- Addressing looseness or play in the front suspension
- Replacing a damaged dust boot on the ball joint assembly
- Correcting steering feel affected by ball joint wear
- Servicing front-end noise caused by suspension joint deterioration
Installation Notes
Verify vehicle year, make, model, and front lower position before installation. The Delphi TC1848 uses a bolt-on mounting style with included mounting bolts and nuts, and the stud is threaded with a tapered end for proper seating in the suspension assembly. Always inspect the surrounding control arm and mounting surfaces for wear or damage before installing the new ball joint.
Quality Assurance
Delphi subjects its OE-based steering and suspension parts to extreme temperature testing below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure. These validation steps support durability and corrosion resistance for demanding service conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Chevrolet | Lumina | Front Lower | — |
| 2000 | Chevrolet | Lumina | Front Lower | — |
| 1999 | Chevrolet | Lumina | Front Lower | — |
| 1999 | Chevrolet | Monte Carlo | Front Lower | — |
| 1998 | Chevrolet | Lumina | Front Lower | — |
| 1998 | Chevrolet | Monte Carlo | Front Lower | — |
| 1997 | Chevrolet | Lumina | Front Lower | — |
| 1997 | Chevrolet | Monte Carlo | Front Lower | — |
| 1997 | Oldsmobile | Cutlass Supreme | Front Lower | — |
| 1996 | Buick | Regal | Front Lower | — |
| 1996 | Chevrolet | Lumina | Front Lower | — |
| 1996 | Chevrolet | Monte Carlo | Front Lower | — |
| 1996 | Oldsmobile | Cutlass Supreme | Front Lower | — |
| 1996 | Pontiac | Grand Prix | Front Lower | — |
| 1995 | Buick | Regal | Front Lower | — |
| 1995 | Chevrolet | Lumina | Front Lower | — |
| 1995 | Chevrolet | Monte Carlo | Front Lower | — |
| 1995 | Oldsmobile | Cutlass Supreme | Front Lower | — |
| 1995 | Pontiac | Grand Prix | Front Lower | — |
| No rows match your filter. | ||||
