OE Quality
60-Day Returns

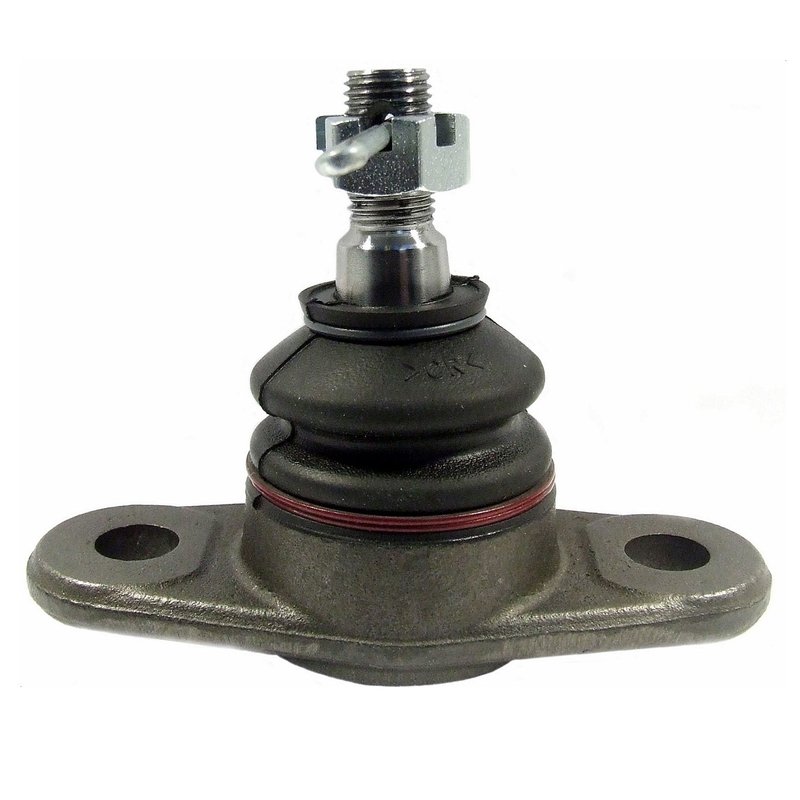

Delphi TC1910 Suspension Ball Joint - Front Lower
Delphi Suspension Ball Joint TC1910 Overview
The Delphi Suspension Ball Joint TC1910 is engineered for reliable suspension performance in Hyundai Accent, Kia Rio, and Kia Rio5 models. Constructed from durable steel, this premium suspension ball joint ensures a secure connection between your vehicle's control arms and steering knuckles.
- Material: Steel construction for strength and durability
- Includes castle nut, cotter pin, and mounting hardware for complete installation
- Dust boot made of chloroprene rubber to protect against contaminants
- Standard suspension grade type with a premium ball joint assembly
- Bolt-on mounting type with two mounting holes spaced 76.0 mm apart
- Threaded stud type with 18.5 mm stud thread length
- Compatible with Hyundai Accent, Kia Rio, and Kia Rio5
Detailed Product Description
The Delphi TC1910 suspension ball joint is designed to maintain precise steering and suspension geometry for Hyundai Accent, Kia Rio, and Kia Rio5 vehicles. Its steel construction provides the necessary strength to withstand road stresses, while the included dust boot made from chloroprene rubber offers protection against dirt and moisture, extending the life of the joint. This premium ball joint assembly comes complete with essential mounting hardware including a castle nut and cotter pin, ensuring a secure and safe fit. The bolt-on mounting type with two mounting holes spaced 76.0 mm apart allows for straightforward installation. The threaded stud with a length of 18.5 mm and a shank diameter of 12.2 mm is designed to fit precisely with the vehicle’s suspension components.
Common Applications and Problem Solving
- Replaces worn or damaged suspension ball joints in Hyundai Accent, Kia Rio, and Kia Rio5
- Eliminates excessive play or looseness in steering and suspension
- Reduces uneven tire wear caused by faulty ball joints
- Restores proper suspension alignment and handling stability
- Prevents noise and vibration from deteriorated ball joint components
Installation Notes and Tips
- Ensure vehicle is securely lifted and supported before removal
- Use the included castle nut and cotter pin to secure the ball joint stud
- Verify mounting hole alignment and torque specifications per vehicle manual
- Inspect dust boot for proper seating to prevent contamination
- Replacement may require wheel alignment after installation
Quality Assurance and Warranty
Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC1910 ball joint undergoes rigorous quality control to ensure durability and performance. This part includes a limited warranty against defects in material and workmanship, providing confidence in its reliability for Hyundai Accent, Kia Rio, and Kia Rio5 applications.
| Brand | Delphi |
|---|---|
| Part Number | TC1910 |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushing Quantity | 1 |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Distance Between Mounting Holes | 76.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 1.89 |
| Height | 48.0 |
| Item Grade | Standard Replacement |
| Length | 115 |
| Material | Steel |
| Maximum Outside Diameter | 3.189 |
| Maximum Outside Diameter | 81.0 |
| Mount Plate Included | No |
| Mounting Bolt Shank Diameter | 12.2 |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Position(s) | Front Lower |
| Stud Tapered End 1 Diameter | 0.661 |
| Stud Tapered End 1 Diameter | 16.8 |
| Stud Tapered End 2 Diameter | 0.591 |
| Stud Tapered End 2 Diameter | 15.0 |
| Stud Thread Length | 0.728 |
| Stud Thread Length | 18.5 |
| Stud Thread Pitch | 1.25 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Type | Premium |
| Washers Included | No |
| Width | 81.0 |
This part fits 19 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Hyundai | Accent | Front Lower | To 02/18/2011 |
| 2011 | Kia | Rio | Front Lower | |
| 2011 | Kia | Rio5 | Front Lower | |
| 2010 | Hyundai | Accent | Front Lower | |
| 2010 | Kia | Rio | Front Lower | |
| 2010 | Kia | Rio5 | Front Lower | |
| 2009 | Hyundai | Accent | Front Lower | |
| 2009 | Kia | Rio | Front Lower | |
| 2009 | Kia | Rio5 | Front Lower | |
| 2008 | Hyundai | Accent | Front Lower | |
| 2008 | Kia | Rio | Front Lower | |
| 2008 | Kia | Rio5 | Front Lower | |
| 2007 | Hyundai | Accent | Front Lower | |
| 2007 | Kia | Rio | Front Lower | |
| 2007 | Kia | Rio5 | Front Lower | |
| 2006 | Hyundai | Accent | Front Lower | |
| 2006 | Kia | Rio | Front Lower | |
| 2006 | Kia | Rio5 | Front Lower | |
| 2005 | Kia | Rio | Front Lower |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
