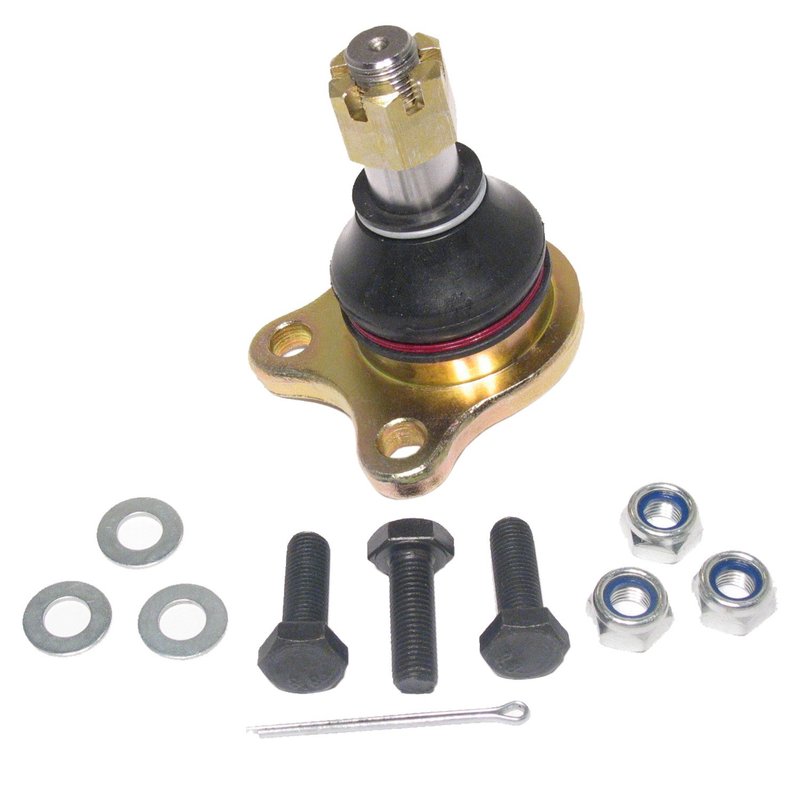

Delphi TC2048 Suspension Ball Joint - Front Upper
| Brand | Delphi TC2048 |
|---|---|
| Position | Front Upper |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushing Quantity | 0 |
| Castle Nut Included | Yes |
| Color | Silver |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Distance Between Mounting Holes | 27.0 |
| Distance Between Mounting Holes | 75.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.74 |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.476 |
| Maximum Outside Diameter | 37.5 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 19.6 |
| Mounting Bolt Length | 36.4 |
| Mounting Bolt Shank Diameter | 10.0 |
| Mounting Bolt Thread Length | 30.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt In |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.787 |
| Stud Tapered End 1 Diameter | 20.0 |
| Stud Tapered End 2 Diameter | 0.866 |
| Stud Tapered End 2 Diameter | 22.0 |
| Stud Thread Diameter | 16.0 |
| Stud Thread Length | 1.024 |
| Stud Thread Length | 26.0 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Type | Premium |
| Washers Included | No |
| Width | 80.0 |
| Fits | Dodge and Plymouth · 2 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Bolt-in design. Includes mounting hardware for easier installation.
Premium materials. Alloy steel ball and carbon steel housing for durable performance.
Cross-references Mevotech Supreme MK9044, MOOG Chassis Products K9044 and MB109585 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC2048 Front Upper Ball Joint
Delphi TC2048 is a premium suspension ball joint for the front upper position on select Dodge D50 applications. Built with OE-focused materials and dimensional control, it is made for direct replacement service where steering precision and suspension stability matter.
- Front upper suspension ball joint for select 1979-1980 Dodge D50 models
- Ball material: alloy steel SAE 5140; housing material: carbon steel SAE 1040
- Dust boot included, made from chloroprene rubber (CR)
- Castle nut, cotter pin, cotter pin hole, nuts, and mounting bolts included
- Bolt-in mounting type with three mounting holes
- Non-greaseable, standard suspension grade design
- Tapered stud with threaded stud design
- Delphi part number TC2048
OE-Style Construction
Delphi applies OE engineering standards to its aftermarket steering and suspension portfolio, and TC2048 reflects that approach with careful dimensional and material analysis for fit and function. The ball joint uses alloy steel and carbon steel construction, a protective dust boot, and a bolt-in mounting layout to support consistent front-end service on the Dodge D50. This part cross-references MOOG Chassis Products K9044 for the same application.
Common Replacement Reasons
- Front suspension looseness or play
- Clunking or knocking from the front upper suspension area
- Uneven tire wear related to worn ball joint geometry
- Steering wander or reduced front-end response
- Visible boot wear, corrosion, or joint deterioration
Installation Notes
Fits 1979-1980 Dodge D50, front upper. Verify stud taper, mounting-hole spacing, and bolt-in orientation before installation. Because this is a non-greaseable assembly, inspect the dust boot and surrounding suspension components during service. Delphi TC2048 should be installed with the correct torque procedure and a professional alignment after replacement.
Quality Assurance
Delphi subjects its OE-style steering components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt-spray testing. Delphi TC2048 is built to support OE-level performance expectations for the front upper suspension on the Dodge D50.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1980 | Dodge | D50 | Front Upper | — |
| 1979 | Dodge | D50 | Front Upper | — |
