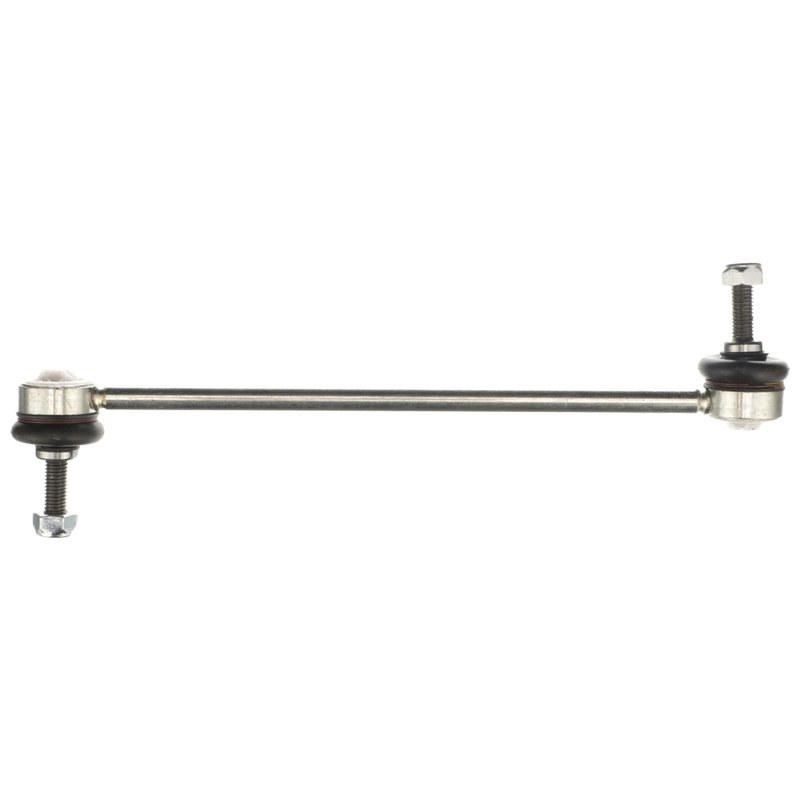

Delphi TC2052 Suspension Stabilizer Bar Link Kit - Front

Delphi Suspension Stabilizer Bar Link Kit Overview

The Delphi TC2052 Suspension Stabilizer Bar Link Kit is designed specifically for the front suspension of BMW 540i and M5 models. Engineered to maintain vehicle stability and handling, this kit features durable components that meet standard replacement requirements.

• Pre-greased ball joint ends for smooth operation
• Black rubber bushings for effective vibration dampening
• Includes dust boots to protect joints from contaminants
• Locking nuts included for secure installation
• Compatible with front suspension systems on BMW 540i and M5
• Standard grade replacement part with polyoxymethylene (POM) bearing material
• Bolt thread size M10 with 1.5 pitch for precise fit

Technical Details and Specifications

The TC2052 stabilizer bar link kit measures 11.22 inches (285 mm) in length, featuring ball joint ends on both sides to ensure reliable articulation and suspension performance. The black rubber bushings provide effective noise and vibration reduction, while the included dust boots protect the joints from dirt and moisture, extending the service life of the component. This kit is pre-greased, eliminating the need for additional lubrication during installation. The bolts are not included, but locking nuts are provided to secure the assembly firmly in place. The bearing material is made from polyoxymethylene (POM), known for its strength and wear resistance, suitable for regular replacement needs in front suspension applications.

Compatible Vehicles and Applications

This suspension stabilizer bar link kit is compatible with the front suspension of BMW 540i and M5 models. It is designed to replace worn or damaged stabilizer bar links, restoring proper suspension function and vehicle handling characteristics.

• Reduces excessive sway and body roll during cornering
• Eliminates clunking or knocking noises from front suspension
• Restores steering responsiveness and stability
• Prevents premature tire wear caused by suspension play
• Improves overall ride comfort and control

Installation Notes and Tips

Installation of the Delphi TC2052 stabilizer bar link kit requires basic suspension knowledge and tools. Since the kit comes pre-greased and includes dust boots and locking nuts, ensure all components are properly aligned before tightening. Use the specified M10 bolt thread size and torque to manufacturer specifications. Inspect related suspension components during installation for wear or damage to maintain optimal performance.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet OEM standards for fit and function. The TC2052 kit is a standard replacement grade part, designed to provide reliable service life when installed correctly. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
