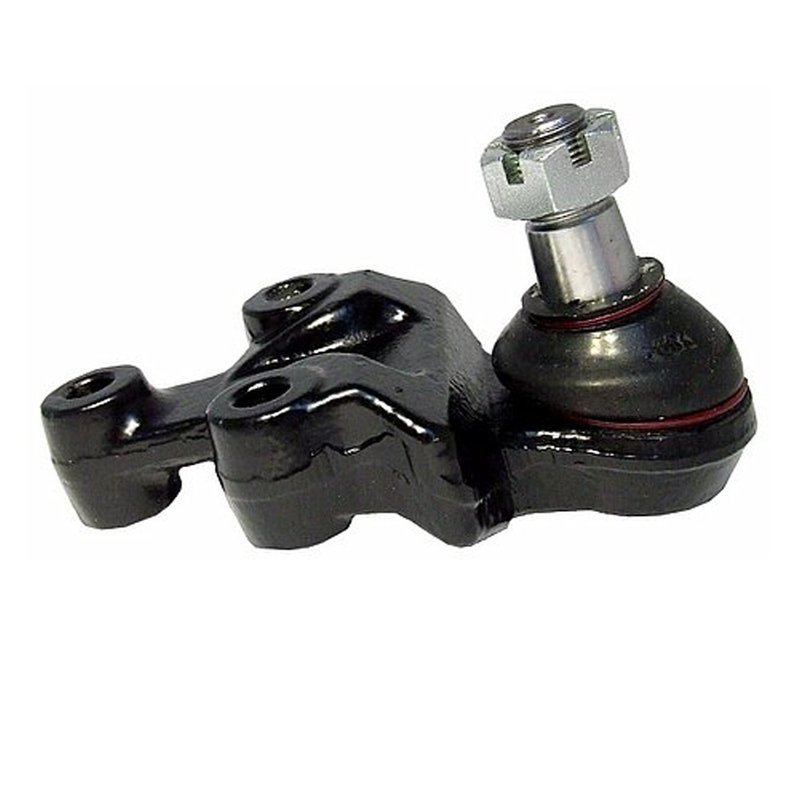

Delphi TC2117 Suspension Ball Joint - Front Lower
| Brand | Delphi TC2117 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushing Quantity | 0 |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Distance Between Mounting Holes | 47.5 |
| Distance Between Mounting Holes | 66.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.937 |
| Height | 100.0 |
| Item Grade | Standard Replacement |
| Length | 175 |
| Material | Steel |
| Maximum Outside Diameter | 4.016 |
| Maximum Outside Diameter | 102.0 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 0.965 |
| Mounting Bolt Head Diameter | 24.5 |
| Mounting Bolt Length | 3.102 |
| Mounting Bolt Length | 78.8 |
| Mounting Bolt Shank Diameter | 1.181 |
| Mounting Bolt Shank Diameter | 30.0 |
| Mounting Bolt Thread Length | 1.339 |
| Mounting Bolt Thread Length | 34.0 |
| Mounting Bolt Thread Pitch | 1.5 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt On |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.945 |
| Stud Tapered End 1 Diameter | 24.0 |
| Stud Tapered End 2 Diameter | 0.85 |
| Stud Tapered End 2 Diameter | 21.6 |
| Stud Thread Length | 0.807 |
| Stud Thread Length | 20.5 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Type | Premium |
| Washers Included | Yes |
| Width | 102.0 |
| Fits | Kia · 7 vehicles |
Standard replacement. Bolt-on ball joint assembly with included hardware for easier installation.
OE expertise. Delphi applies OE engineering and dimensional analysis for compatibility.
Steel construction. Includes a dust boot and threaded tapered stud for dependable operation.
Cross-references Beck/Arnley 101-5147, Dorman - Premium B90384PR and Mevotech Supreme MK500032 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC2117 Front Lower Ball Joint
Delphi TC2117 is a premium suspension ball joint built for the front lower position on select Kia Sorento models. It combines a steel construction, sealed dust boot, and bolt-on mounting design for a direct replacement on 2003-2009 Kia Sorento front lower applications.
Key Features
- Fits 2003-2009 Kia Sorento, front lower
- Steel ball joint assembly with standard replacement construction
- Bolt-on mounting type with three mounting holes
- Dust boot included; grease fitting not included
- Castle nut, cotter pin, nuts, washers, and mounting hardware included
- Tapered stud with threaded stud design
- Delphi part number TC2117
Detailed Description
Delphi TC2117 is engineered as a standard replacement suspension ball joint for the front lower suspension on Kia Sorento models from 2003 through 2009. Delphi applies OE-focused dimensional and material analysis to help maintain proper fit between the original suspension geometry and the replacement part. The assembly uses a steel body, a chloroprene rubber dust boot, and a bolt-on mounting style with a tapered stud for secure suspension connection. Delphi TC2117 is also referenced by cross numbers such as MOOG Chassis Products K500032 and Mevotech Supreme MK500032 for the same application.
What It Helps Address
- Front suspension looseness or play
- Clunking or knocking from the lower control arm area
- Uneven tire wear related to worn ball joint movement
- Steering instability or wandering on Kia Sorento front suspension
- Inspection failure caused by excessive joint wear
Installation Notes and Tips
Verify the vehicle is a 2003-2009 Kia Sorento with the front lower suspension position before ordering. Confirm mounting hole spacing, stud taper, and bolt-on layout against the original part before installation. Because this ball joint is not greaseable, it is installed as a sealed service part. Always follow factory service procedures and torque specifications during replacement.
Quality Assurance
Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero cold, high heat, and extended salt-spray exposure. That OE-oriented validation supports consistent fit and durability for front lower suspension service on Kia Sorento applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Kia | Sorento | Front Lower | — |
| 2008 | Kia | Sorento | Front Lower | — |
| 2007 | Kia | Sorento | Front Lower | — |
| 2006 | Kia | Sorento | Front Lower | — |
| 2005 | Kia | Sorento | Front Lower | — |
| 2004 | Kia | Sorento | Front Lower | — |
| 2003 | Kia | Sorento | Front Lower | — |
