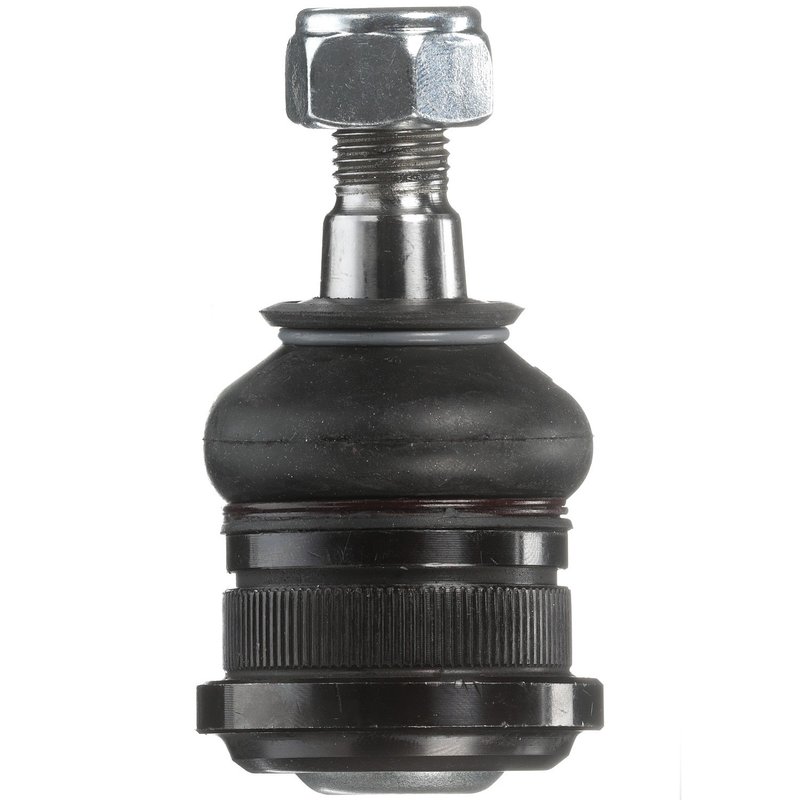

Delphi TC2208 Suspension Ball Joint - Front Upper
| Brand | Delphi TC2208 |
|---|---|
| Position | Front Upper |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Black |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 4.358 |
| Height | 110.7 |
| Item Grade | Standard Replacement |
| Length | 56 |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Mount Plate Included | No |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Type | Pressed |
| Nuts Included | Yes |
| Stud Thread Diameter | 0.63 |
| Stud Thread Diameter | 16.0 |
| Stud Thread Length | 1.024 |
| Stud Thread Length | 26.0 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Tapered Stud | No |
| Washers Included | No |
| Width | 56.0 |
| Fits | Mitsubishi and Dodge · 13 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Pressed design. Includes mounting hardware for a straightforward installation.
Durable materials. Alloy steel ball and carbon steel housing add strength.
Cross-references Beck/Arnley 101-3466, Mevotech Supreme MK9372 and B9372 for the same application. See all 5.
Delphi TC2208 Front Upper Ball Joint
Delphi TC2208 is a standard replacement suspension ball joint for the front upper position on select Mitsubishi, Dodge, and Ram 50 applications. Built with OE-focused dimensional and material analysis, it is made for direct-fit service on vehicles such as the Mitsubishi Montero and Mitsubishi Mighty Max.
Key Features
- Front upper suspension ball joint assembly
- Standard replacement grade for OE-style service
- Ball material: Alloy Steel SAE 5140
- Housing material: Carbon Steel SAE 1040
- Pressed mounting type
- Threaded stud design with 1.5 pitch
- Dust boot included; grease fitting not included
- Mounting hardware and nuts included
- Black finish
Detailed Description
The Delphi TC2208 ball joint is engineered for the front upper suspension location and built to match OE dimensional and material requirements. Delphi subjects its steering and suspension components to extreme temperature and salt-spray testing, helping verify durability in demanding road conditions. This part cross-references Mevotech Supreme MK9372 for the same application.
Use Delphi TC2208 when servicing front upper suspension wear on 1987-1991 Mitsubishi Montero, 1983-1986 Mitsubishi Mighty Max, 1983-1984 Dodge Ram 50, and 1981-1982 Dodge D50. The Delphi TC2208 is a practical OE-style replacement for drivers restoring steering response and suspension geometry on these platforms.
What It Helps Fix
- Front-end looseness or play from a worn upper ball joint
- Clunking or knocking noises from the front suspension
- Uneven tire wear caused by suspension joint wear
- Imprecise steering feel during normal driving
- Suspension geometry issues related to joint wear
Installation Notes
Fits 1987-1991 Mitsubishi Montero, front upper; 1983-1986 Mitsubishi Mighty Max, front upper; 1983-1984 Dodge Ram 50, front upper; and 1981-1982 Dodge D50, front upper. This is a pressed-in style ball joint, so proper suspension service tools and correct press procedures are required. Verify stud thread size, mounting style, and position before installation. Delphi TC2208 uses a threaded stud and includes a dust boot, mounting hardware, and nuts.
Quality Assurance
Delphi applies OE-level engineering practices to its aftermarket steering and suspension portfolio. This ball joint is tested across extreme temperature ranges and exposed to extended salt-spray testing to evaluate corrosion resistance and durability. Delphi also uses dimensional and material analysis to support fit and function against OE requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1991 | Mitsubishi | Montero | — | Front Upper | — |
| 1990 | Mitsubishi | Montero | — | Front Upper | — |
| 1989 | Mitsubishi | Montero | — | Front Upper | — |
| 1988 | Mitsubishi | Montero | — | Front Upper | — |
| 1987 | Mitsubishi | Montero | — | Front Upper | — |
| 1986 | Mitsubishi | Mighty Max | 4WD | Front Upper | — |
| 1985 | Mitsubishi | Mighty Max | 4WD | Front Upper | — |
| 1984 | Dodge | Ram 50 | — | Front Upper | — |
| 1984 | Mitsubishi | Mighty Max | 4WD | Front Upper | — |
| 1983 | Dodge | Ram 50 | — | Front Upper | — |
| 1983 | Mitsubishi | Mighty Max | 4WD | Front Upper | — |
| 1982 | Dodge | D50 | — | Front Upper | — |
| 1981 | Dodge | D50 | — | Front Upper | — |
