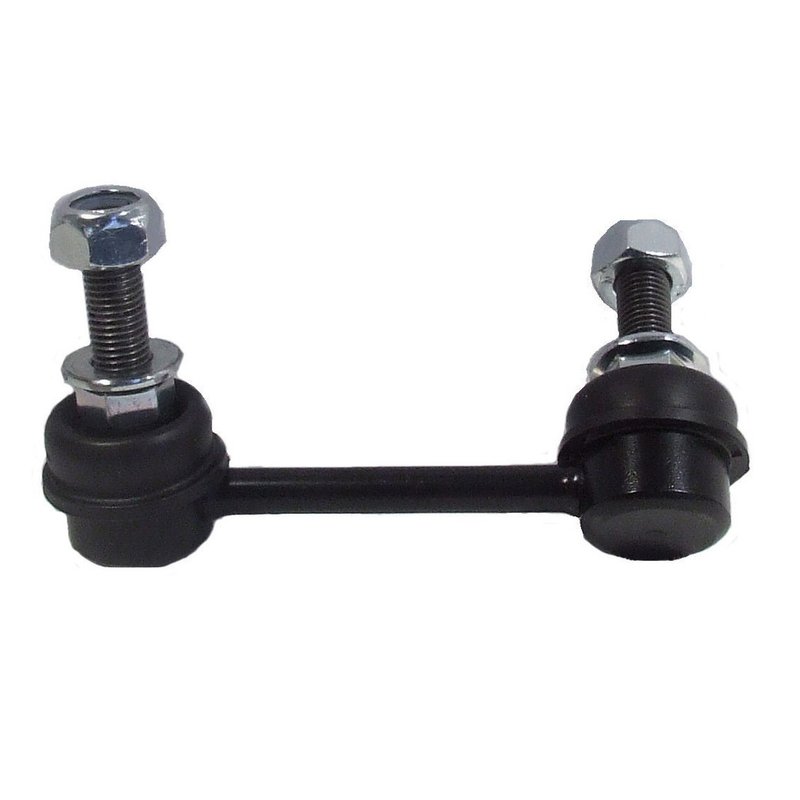

Delphi TC2281 Suspension Stabilizer Bar Link - Front Right

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC2281 Suspension Stabilizer Bar Link is engineered for reliable front right suspension performance on select INFINITI and Nissan vehicles. Designed with durable steel construction and precision ball joint ends, this stabilizer bar link supports stable handling and improved ride quality.

• Constructed from high-strength steel for durability
• Features ball joint ends on both sides for smooth articulation
• Includes a dust boot to protect internal components
• Black rubber bushings for vibration dampening (bushings not included)
• Compatible with INFINITI I30, I35 and Nissan Maxima front right suspension
• Standard replacement grade with locking nuts included
• Bolt thread size M10 x 1.25 with 90 mm length bolts

Technical Details and Specifications

The Delphi TC2281 stabilizer bar link measures 90 mm (3.543 inches) in length and 55 mm (2.165 inches) in width, with a height of 60 mm (2.362 inches). Both ends utilize ball joint types to ensure precise suspension movement and reduce wear. The housing and main body are made from steel, providing strength and resistance to corrosion. The bushings are rubber-based with black coloring, designed to absorb shocks and reduce noise, although bushings themselves are not included with this part. A dust boot is included to protect the ball joints from dirt and debris, extending the service life of the component. The bearing material is polyoxymethylene (POM), known for its low friction and durability. This stabilizer bar link is a standard replacement grade part, suitable for maintaining factory suspension performance.

Compatible Vehicles and Applications

This suspension stabilizer bar link is compatible with the following vehicles:

• INFINITI I30 (front right position)
• INFINITI I35 (front right position)
• Nissan Maxima (front right position)

Use the Delphi TC2281 part number to ensure proper fitment for these models when replacing worn or damaged stabilizer bar links.

Common Suspension Issues Addressed

• Excessive body roll during cornering
• Clunking or knocking noises from front suspension
• Uneven tire wear due to unstable suspension geometry
• Reduced steering responsiveness and control
• Vibration or looseness in the front right suspension area

Installation Notes and Tips

• Verify vehicle compatibility with INFINITI I30, I35, or Nissan Maxima front right side before installation
• Use proper torque specifications for M10 x 1.25 bolts (90 mm length) and locking nuts included
• Inspect surrounding suspension components for wear during replacement
• Ensure dust boot is properly seated to prevent contamination
• Professional installation is recommended for accurate alignment and safety

Quality Assurance and Warranty

The Delphi TC2281 Suspension Stabilizer Bar Link is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The part includes locking nuts for secure installation. While no specific warranty details are provided, Delphi parts typically adhere to industry quality standards for suspension components. Always consult product documentation or supplier information for warranty coverage.
