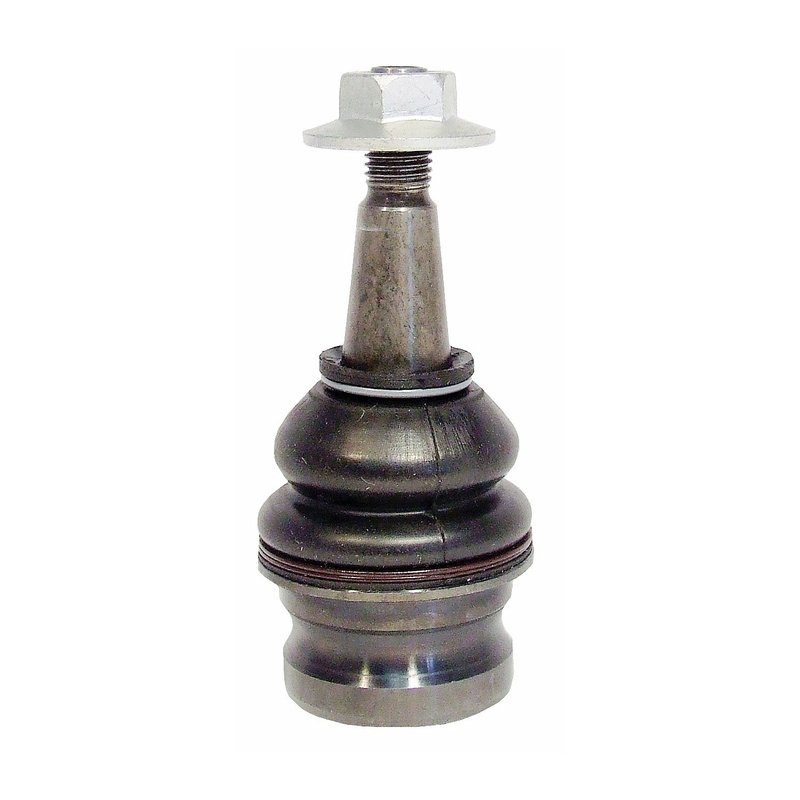

Delphi TC2320 Suspension Ball Joint - Front Lower

Front Lower Ball Joint for Audi Applications

Delphi TC2320 is a standard replacement suspension ball joint for front lower positions on select Audi models. Built with a steel body, dust boot, and pressed mounting design, it supports OE-style suspension service for Audi A4, A5, A6, A7, Q5, S4, and S5 applications.

Key Features

• Steel construction with gray finish
• Pressed mounting type for front lower suspension use
• Ball joint assembly with dust boot included
• Chloroprene rubber dust boot material
• Threaded stud with tapered end design
• Standard replacement suspension grade
• Mounting hardware and nuts included
• Greaseable design not required; no grease fitting included

Product Details

Delphi TC2320 is engineered for OE-level dimensional and material compatibility in the aftermarket steering and suspension space. Delphi subjects its steering components to extreme temperature testing and extended salt-spray exposure, then validates dimensions and materials to help maintain proper fit and function. This part cross-references MOOG Chassis Products K500225 and TRW JBJ789 for the same application. Use Delphi TC2320 when servicing front lower suspension wear on Audi A5 Quattro, Audi A5, and related Audi platforms listed below.

What It Helps Fix

• Front suspension looseness or play
• Clunking or knocking from the lower control arm area
• Uneven tire wear caused by worn ball joint movement
• Steering wander or imprecise front-end response
• Inspection failure from excessive suspension joint wear

Installation Notes

Fits 2008-2015 Audi A5 Quattro, front lower; 2010-2014 Audi A5, front lower; 2012 Audi A4, front lower, to 08/15/2011; 2012 Audi A4 Quattro, front lower, to 08/15/2011; 2012 Audi A6, front lower, to 08/15/2011; 2012 Audi A6 Quattro, front lower, to 08/15/2011; 2012 Audi A7 Quattro, front lower, to 08/15/2011; 2012 Audi Q5, front lower, to 08/15/2011; 2012 Audi S4, front lower, to 08/15/2011; 2011-2012 Audi S5, front lower, to 08/15/2011; 2011 Audi A4, front lower, to 08/2015; 2011 Audi A4 Quattro, front lower, to 08/2015; 2011 Audi A6 Quattro, front lower; 2011 Audi Q5, front lower, to 08/2015; 2008-2011 Audi S4, front lower; 2009-2010 Audi A4, front lower; 2009-2010 Audi A4 Quattro, front lower; 2009-2010 Audi Q5, front lower; 2008-2010 Audi S5, front lower. Verify the vehicle build date and suspension configuration before installation, since several Audi applications are date-specific. Pressed-fit suspension joints require proper removal and installation tools to avoid damage to the control arm or joint bore.

Quality Assurance

Delphi applies OE-focused engineering to its aftermarket steering portfolio and validates parts through temperature cycling from below -40 degrees C to above 120 degrees C, along with 720 hours of salt-spray exposure. Delphi TC2320 is built for standard replacement service on Audi front lower suspension applications.
