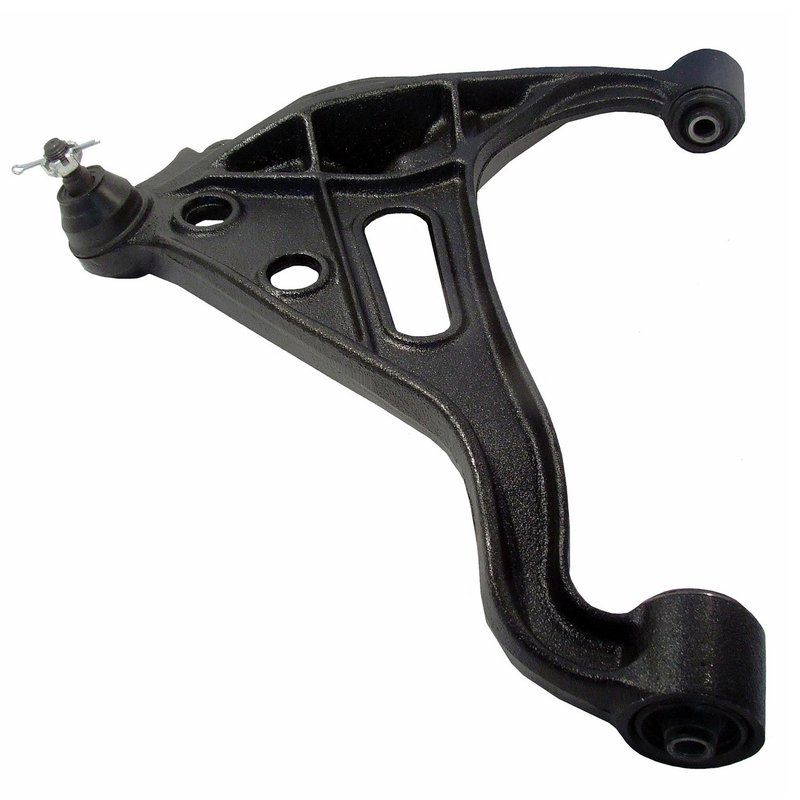

Delphi TC2394 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC2394 suspension control arm and ball joint assembly is designed for front left lower suspension applications on Chevrolet and Suzuki vehicles. Engineered with durable steel construction and pre-greased components, this assembly provides reliable performance for models such as the Chevrolet Tracker, Suzuki Grand Vitara, Vitara, and XL-7.

• Pre-greased for immediate installation
• Includes rubber and steel bushings
• Threaded ball joint stud with 0.551 inch (14.0 mm) diameter
• Steel control arm with casting and forged construction
• Mounting hardware included for a complete replacement
• Control arm dimensions: 16.583 inches (421.2 mm) length, 3.681 inches (93.5 mm) width
• Black finish for corrosion resistance

Durable Construction and Design Features

The TC2394 control arm assembly features a robust steel control arm constructed through casting and forging processes to ensure strength and durability under typical driving conditions. The assembly comes pre-greased, eliminating the need for additional lubrication during installation. Rubber and steel bushings are included to provide vibration dampening and maintain proper suspension alignment. The ball joint stud is threaded with a 0.551 inch diameter and 0.866 inch length, designed to fit securely within the suspension system. This assembly is not adjustable or greaseable but includes all necessary mounting hardware for a straightforward replacement.

Compatible Vehicles and Applications

This suspension control arm and ball joint assembly is compatible with front left lower suspension positions on select Chevrolet and Suzuki models. Specifically, it fits Chevrolet Tracker and Suzuki Grand Vitara, Vitara, and XL-7 vehicles. The part number TC2394 ensures precise fitment and reliable performance for these models, making it a suitable replacement for worn or damaged suspension components.

• Replaces worn or damaged front left lower control arm
• Addresses suspension noise and vibration issues
• Corrects alignment problems caused by bushing wear
• Restores proper steering response and handling
• Eliminates ball joint looseness or play

Installation Notes and Tips

Installation of the Delphi TC2394 control arm assembly requires basic suspension knowledge and tools. Since the assembly comes pre-greased and includes mounting hardware, it simplifies the replacement process. It is important to verify the vehicle’s front left lower suspension position before installation. After replacement, a professional wheel alignment is recommended to ensure optimal handling and tire wear.

Quality Assurance and Warranty

Delphi suspension components meet industry standards for durability and performance. The TC2394 assembly is manufactured with quality materials and undergoes rigorous testing to ensure reliability. This part is classified as a standard replacement grade component. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
