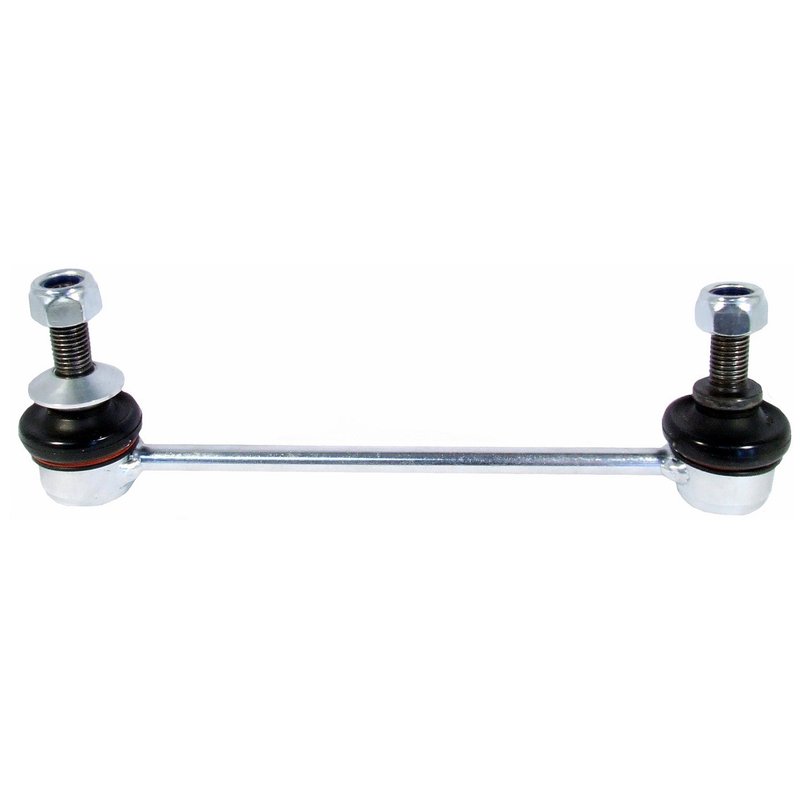

Delphi TC2410 Suspension Stabilizer Bar Link - Rear

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC2410 Suspension Stabilizer Bar Link is engineered for rear suspension systems on select BMW models. Designed with durable steel construction and equipped with ball joint ends, this stabilizer bar link ensures reliable performance and precise handling for your BMW 535i GT, 535i GT xDrive, 550i GT, and 550i GT xDrive vehicles.

• Constructed from high-strength steel for durability
• Black rubber bushings for effective vibration dampening
• Ball joint ends on both sides for smooth articulation
• Includes dust boot to protect joint components
• Compatible with rear suspension of BMW 535i GT and 550i GT models
• Locking nuts included for secure installation
• Standard replacement grade for reliable performance

Technical Details and Specifications

The Delphi TC2410 stabilizer bar link measures approximately 7.874 inches (200 mm) in length, with a width of 1.339 inches (34 mm) and a height of 2.795 inches (71 mm). Both ends feature ball joints constructed with polyoxymethylene (POM) bearings, providing smooth movement and resistance to wear. The bushings are made from rubber and are black in color, designed to reduce noise and absorb shocks. The housing and main body are fabricated from steel, ensuring structural integrity under regular driving conditions. This part is not greaseable but includes a dust boot to protect the ball joints from contaminants. The bolt thread size is M12 x 1.50, with a bolt length of 7.874 inches (200 mm), and locking nuts are included to maintain secure fastening during operation.

Compatible Vehicles and Applications

This suspension stabilizer bar link is specifically compatible with the rear suspension of BMW 535i GT, 535i GT xDrive, 550i GT, and 550i GT xDrive models. It is designed as a standard replacement part to restore proper suspension function and handling characteristics in these vehicles.

Common Issues Addressed by the Delphi TC2410

• Excessive body roll during cornering
• Clunking or knocking noises from rear suspension
• Uneven tire wear due to suspension instability
• Loose or worn stabilizer bar link components
• Reduced handling precision and vehicle control

Installation Notes and Tips

Installation of the Delphi TC2410 stabilizer bar link requires basic suspension knowledge and appropriate tools. Ensure the vehicle is securely lifted and supported before beginning work. Remove the old stabilizer bar link by loosening the M12 x 1.50 bolts and ball joint connections. Install the new link with the included locking nuts to prevent loosening over time. Verify that the dust boots are properly seated to protect the joints. Although this part is not greaseable, inspect surrounding suspension components for wear during installation.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet OEM standards for fit, form, and function. The TC2410 stabilizer bar link is a standard replacement grade part, designed to provide reliable service life under normal driving conditions. Locking nuts are included to ensure secure installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
