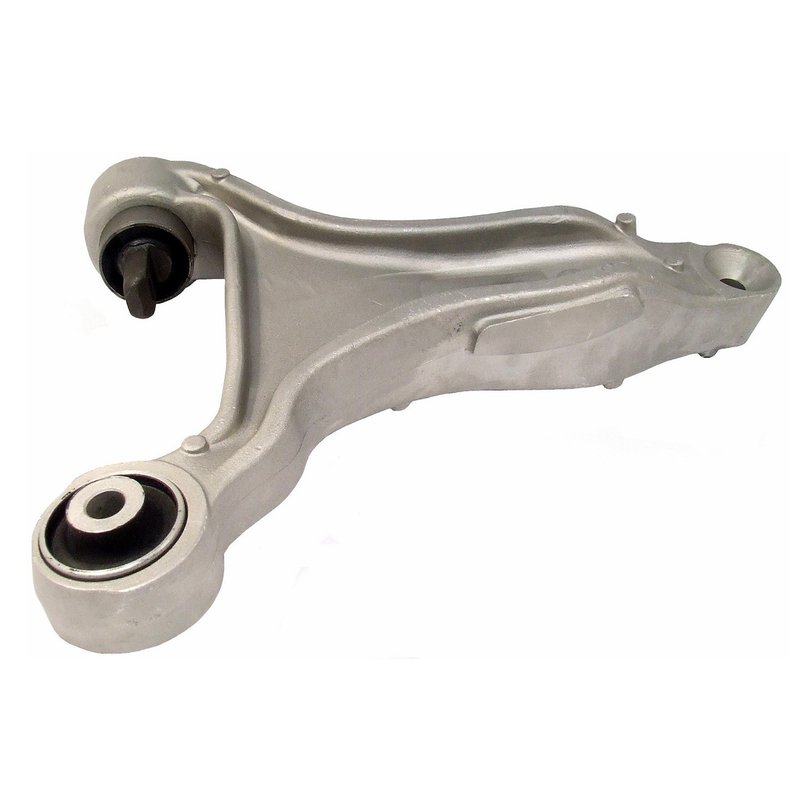

Delphi TC2541 Suspension Control Arm - Front Right Lower

OE-Style Front Right Lower Control Arm

Delphi TC2541 is a front right lower suspension control arm built for OE-style replacement on select Volvo applications. It uses an aluminum casting/forged construction with included bushings and a press-in ball joint mounting design for a direct-fit suspension service part.

Fits 2003-2007 Volvo XC70, front right lower. Fits 2001-2005 Volvo V70, front right lower. Delphi applies dimensional and material analysis to help match OE fit and function for these Volvo XC70 and Volvo V70 applications.

Key Features

• Aluminum construction with casting/forged design
• Front right lower position
• Bushings included
• Press-in ball joint mounting type
• Standard replacement grade
• Gray finish with gray bushing color
• Non-adjustable design
• Compatible with Volvo XC70 and Volvo V70 fitments listed below

Detailed Description

Delphi TC2541 is engineered as a suspension control arm replacement for the front right lower position on 2003-2007 Volvo XC70 and 2001-2005 Volvo V70 models. The aluminum construction helps keep the part lightweight while maintaining the structural characteristics expected in a suspension component. Bushings are included, and the press-in ball joint mounting type supports serviceable OE-style assembly requirements. This part cross-references MOOG Chassis Products RK640444 for the same application.

Delphi validates its steering and suspension components through temperature exposure below -40 degrees C and above 120 degrees C, along with extended salt-spray testing, to evaluate durability in demanding conditions. Part number TC2541 is a standard replacement choice for drivers servicing worn front suspension components on Volvo XC70 and Volvo V70 vehicles.

What It Helps Address

• Front-end looseness from a worn lower control arm
• Clunking or knocking from deteriorated suspension bushings
• Uneven tire wear caused by suspension geometry changes
• Steering pull or wandering linked to worn front suspension parts
• Restoring proper front right lower suspension support on Volvo XC70 and Volvo V70 models

Installation Notes and Tips

• Verify vehicle year, model, and front right lower position before installation.
• Inspect related suspension components, including bushings and mounting points, for wear or damage.
• Because mounting hardware is not included, reuse or source the correct hardware as required by the vehicle service procedure.
• After installation, perform a professional alignment to confirm suspension geometry.
• Confirm ball joint and bushing condition on the opposite side if the vehicle shows uneven wear.

Quality Assurance

Delphi uses OE-focused dimensional and material analysis to support fitment accuracy and consistent replacement quality. The part is tested for temperature extremes and salt-spray exposure to evaluate performance in harsh operating conditions.
