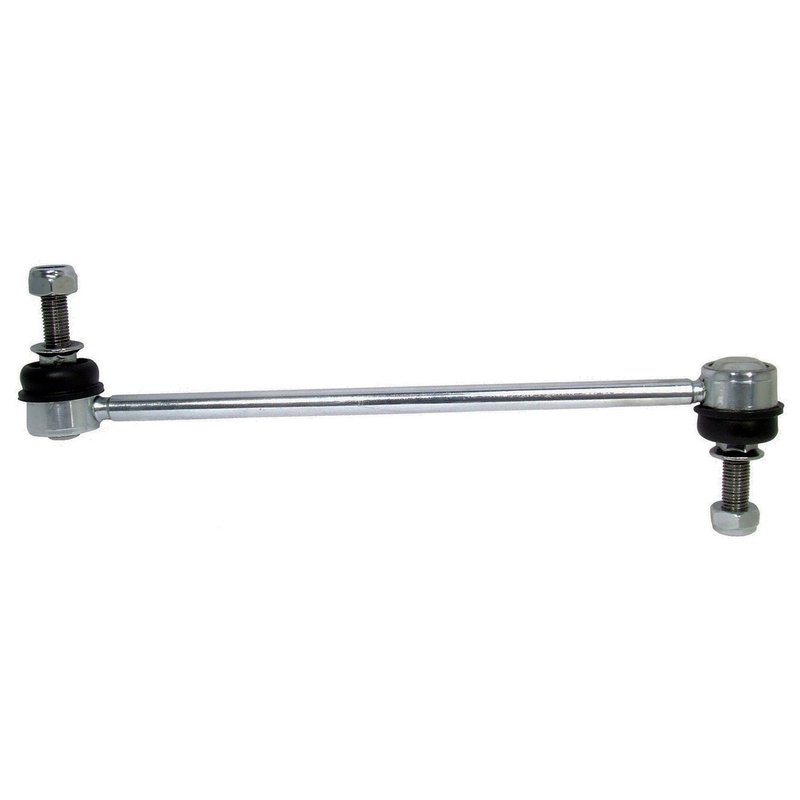

Delphi TC2556 Suspension Stabilizer Bar Link - Front

Front Suspension Stabilizer Bar Link for Nissan

Restore front-end stability and steering response with the Delphi TC2556 suspension stabilizer bar link. Built as a standard replacement for select Nissan applications, it uses an aluminum housing, ball joint ends, and a dust boot to support consistent sway bar connection performance.

Delphi applies OE-focused engineering to its aftermarket steering and suspension portfolio, with dimensional and material analysis used to match the original part more closely. The TC2556 is a front stabilizer bar link for Nissan Versa, Versa Note, Kicks, and Cube models listed below.

• Delphi TC2556 front suspension stabilizer bar link
• Aluminum housing with black bushing color
• Ball joint ends on both sides for sway bar connection
• Dust boot included; bushings not included
• Locking nuts included; bolts and washers not included
• Standard replacement part for front suspension service
• Cross-reference: MOOG Chassis Products K750098

OE-Style Fit and Construction

The Delphi TC2556 is engineered for front suspension use on 2012-2021 Nissan Versa, 2014-2019 Nissan Versa Note, 2018-2020 Nissan Kicks, and 2009-2014 Nissan Cube. It measures 255.0 mm in length and uses an M10 x 1.25 bolt thread size with a 10.0 mm bolt thread diameter. The aluminum housing and rubber bushing material support a direct-fit replacement approach for the original stabilizer bar link.

Delphi subjects parts to extreme temperature exposure below -40 degrees C and above 120 degrees C, along with extended salt-spray testing, to evaluate durability in demanding road conditions. Part number TC2556 is also referenced in aftermarket catalogs for the same application.

What This Part Helps Address

• Front suspension clunking or rattling from a worn stabilizer bar link
• Excess body roll caused by a loose sway bar connection
• Uneven steering feel during lane changes and cornering
• Play in the front suspension from worn ball joint link ends
• Noise from deteriorated stabilizer bar link bushings or boots

Installation Notes

Install on the front suspension only. Verify the vehicle application, thread size, and overall link length before installation. Because bolts, bushings, and washers are not included, reuse or source the required mounting hardware as needed for the specific vehicle. Always inspect adjacent suspension components for wear before completing the repair.

Quality Assurance

Delphi uses OE-based dimensional and material analysis to support fitment accuracy and consistent aftermarket replacement quality. The TC2556 is tested for temperature extremes and salt-spray exposure to help validate durability in real-world suspension service.

• Fits 2012-2021 Nissan Versa, front
• Fits 2014-2019 Nissan Versa Note, front
• Fits 2018-2020 Nissan Kicks, front
• Fits 2009-2014 Nissan Cube, front
