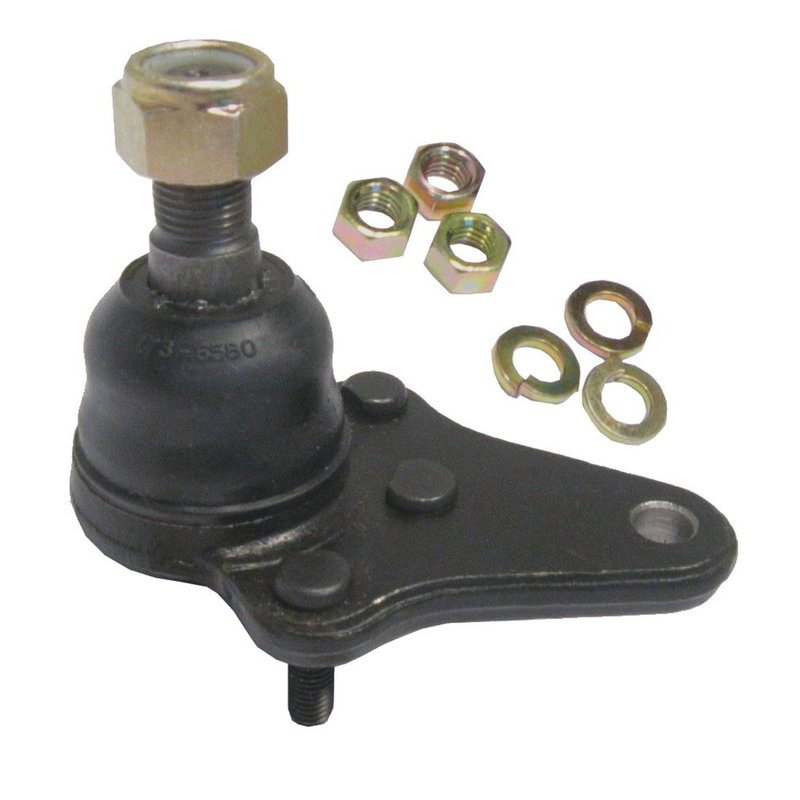

Delphi TC292 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint for Toyota Pickup

The Delphi TC292 suspension ball joint is engineered to provide reliable steering and suspension performance for Toyota Pickup vehicles. Designed with durable materials and precise specifications, this ball joint supports smooth vehicle handling and stability.

• Constructed with alloy steel SAE 5140 ball and carbon steel housing for strength and durability
• Includes a dust boot made of chloroprene rubber to protect against contaminants
• Standard suspension grade type suitable for everyday driving conditions
• Comes as a complete ball joint assembly with mounting hardware, nuts, washers, and bolts included
• Features a threaded stud with a 16.0 mm diameter and 1.024 inch thread length
• Mounting type is bolt-on with four mounting holes for secure installation
• Compatible with Toyota Pickup models requiring part number TC292

Durable Construction and Precise Fitment

The Delphi TC292 suspension ball joint is built with a high-quality alloy steel SAE 5140 ball and a carbon steel housing, ensuring long-lasting durability under typical road conditions. The gray-colored ball joint includes a chloroprene rubber dust boot that helps prevent dirt and moisture intrusion, extending the life of the joint. With a maximum outside diameter of 1.378 inches (35.0 mm) and a width of 127.0 mm (4.094 inches), this ball joint is designed to meet exact OEM specifications for Toyota Pickup vehicles. The threaded stud and bolt-on mounting system with included hardware simplify installation and ensure a secure fit.

Compatible Applications and Use Cases

This suspension ball joint is specifically compatible with Toyota Pickup models requiring part number TC292. It is designed to replace worn or damaged ball joints that can cause issues such as:

• Excessive steering play or looseness
• Uneven tire wear due to suspension misalignment
• Clunking or knocking noises from the front suspension
• Reduced vehicle stability and handling performance
• Vibration or shaking during driving

Installation Notes and Tips

Installation of the Delphi TC292 ball joint requires basic suspension tools and mechanical knowledge. The bolt-on mounting type with four mounting holes allows for straightforward replacement. Ensure the dust boot remains intact during installation to maintain protection against contaminants. Torque all mounting bolts and nuts to manufacturer specifications. The cotter pin hole is present but cotter pin is not included, so source a suitable cotter pin if required for your application.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC292 ball joint assembly undergoes rigorous quality control to ensure durability and performance. This product includes mounting hardware, nuts, and washers to facilitate proper installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
