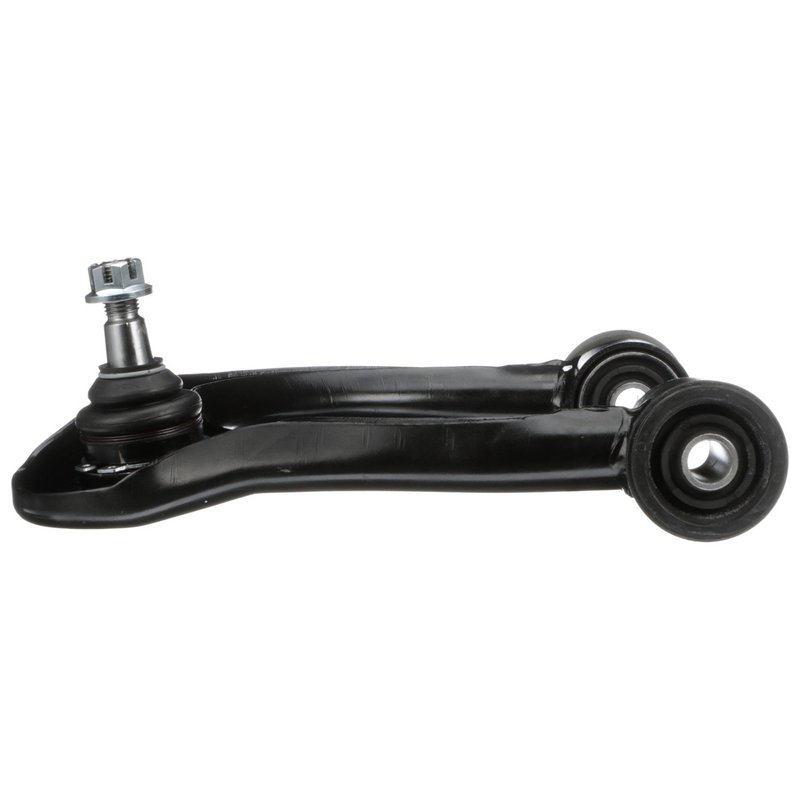

Delphi TC3325 Suspension Control Arm and Ball Joint Assembly - Front Right Upper

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC3325 suspension control arm and ball joint assembly is designed for front right upper suspension applications on select Lexus and Toyota models. This pre-greased, stamped steel control arm offers a reliable replacement option engineered to meet standard suspension requirements.

• Pre-greased for immediate installation
• Includes rubber bushings and mounting hardware
• Stamped steel construction with black finish
• Press-in ball joint with threaded stud
• Compatible with Lexus 4Runner, GX460, GX470 and Toyota FJ Cruiser

Detailed Product Features and Specifications

The Delphi TC3325 control arm assembly features a stamped steel construction that provides durability while maintaining a lightweight profile suitable for light suspension grade applications. The assembly comes pre-greased, eliminating the need for additional lubrication during installation. Rubber bushings are included to help absorb road vibrations and reduce noise. The ball joint is press-in mounted with a threaded stud measuring 0.55 inches in diameter and 2.72 inches in length, ensuring secure attachment and proper steering response. The control arm measures up to 12.28 inches in length and 7.91 inches in width, finished in black for corrosion resistance. Mounting hardware is included for a complete replacement solution.

Compatible Vehicles and Fitment Details

This suspension control arm and ball joint assembly is compatible with the front right upper position on the following vehicles:

• Lexus 4Runner
• Lexus GX460
• Lexus GX470
• Toyota FJ Cruiser

Ensure compatibility by verifying the part number TC3325 when searching for replacement suspension components for these models.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Ball joint wear leading to uneven tire wear or clunking noises
• Corroded or bent control arms affecting wheel alignment
• Loose or missing mounting hardware compromising suspension integrity
• Reduced suspension performance due to lack of lubrication

Installation Notes and Tips

Installation of the Delphi TC3325 control arm assembly requires standard suspension tools and mechanical knowledge. Since the part is pre-greased and includes bushings and mounting hardware, it simplifies the replacement process. Note that this assembly is not greaseable after installation and does not include a grease fitting. Verify the correct front right upper position before installation. It is recommended to perform a wheel alignment after replacement to ensure proper handling and tire wear.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet OEM standards for fit, form, and function. The TC3325 control arm assembly is a standard replacement grade part designed to restore suspension performance. While specific warranty details may vary, Delphi typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
