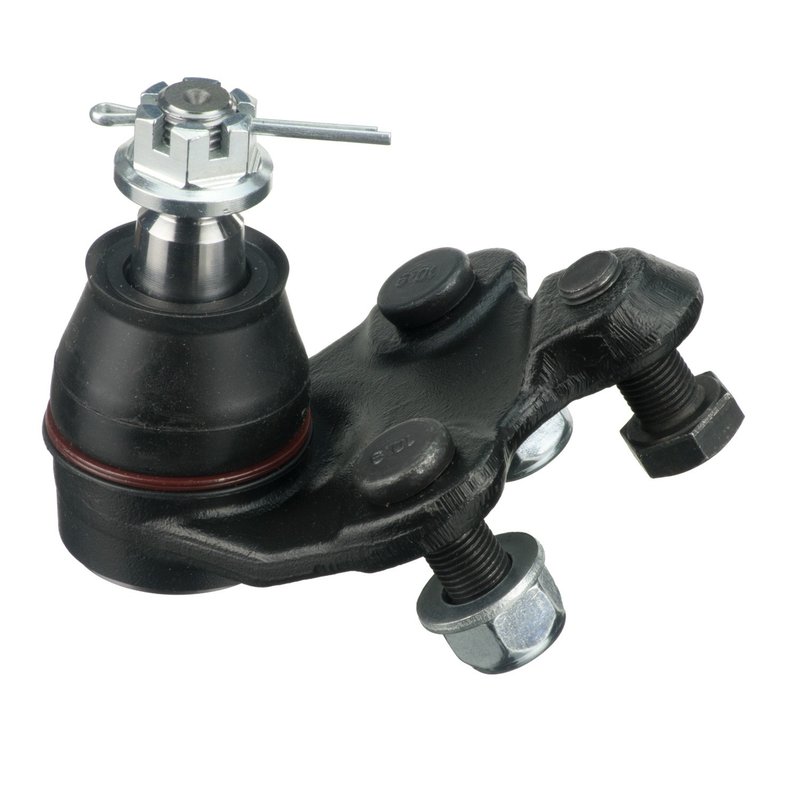

Delphi TC3357 Suspension Ball Joint - Front Lower
| Brand | Delphi TC3357 |
|---|---|
| Position | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 14.0 |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90.0 |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 37.0 |
| Mounting Bolt Length | 37.5 |
| Washers Included | Yes |
| Height | 3.346 |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Stud Thread Length | 0.906 |
| Stud Thread Length | 23.0 |
| Stud Type | Threaded |
| Mounting Type | Bolt in |
| Distance Between Mounting Holes | 35.0 |
| Distance Between Mounting Holes | 56.0 |
| Dust Boot Material | Choloroprene rubber (cr) |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 12.0 |
| Mounting Bolt Shank Diameter | 13.0 |
| Mounting Bolt Head Diameter | 18.0 |
| Fits | Toyota · 5 vehicles |
Standard replacement. Bolt-in suspension ball joint with OE-focused compatibility.
Steel construction. Built with a dust boot and threaded stud for dependable service.
Hardware included. Comes with mounting bolts, nuts, washers, cotter pin, and castle nut.
Cross-references Beck/Arnley 101-7808, Dorman - Premium BJ74465PR and MOOG Chassis Products K500174 for the same application. See all 6.
Delphi Front Lower Ball Joint for Toyota Matrix
Restore precise front suspension movement with this Delphi suspension ball joint, part number TC3357. It is a front lower replacement for 2009-2013 Toyota Matrix models and is built with OE-focused dimensional and material analysis for consistent fit and function.
- Fits 2009-2013 Toyota Matrix, front lower
- Premium suspension ball joint assembly
- Steel construction with black finish
- Dust boot included with chloroprene rubber material
- Threaded tapered stud with cotter pin hole
- Castle nut, cotter pin, washers, nuts, and mounting hardware included
- Bolt-in mounting style with 3 mounting holes
- Standard replacement grade for front suspension service
OE-Style Suspension Fitment
Delphi TC3357 is engineered for the front lower position on the Toyota Matrix, with OE-oriented sizing and material selection to support proper suspension geometry. Delphi subjects its steering and suspension components to extreme temperature cycling and salt-spray exposure, then verifies dimensional and material compatibility to help match the original part’s fit and performance. If you are replacing a worn Toyota Matrix front lower ball joint, TC3357 provides a direct-service solution for the 2009-2013 model years.
This part cross-references MOOG Chassis Products K500174 for the same application.
Common Problems This Part Can Address
- Front-end clunking or popping over bumps
- Excessive play in the lower suspension joint
- Uneven tire wear caused by worn suspension articulation
- Loose or imprecise steering feel
- Inspection failure from a damaged or worn ball joint
Installation Notes
Confirm the front lower position and verify stud taper, bolt pattern, and mounting dimensions before installation. Inspect the surrounding control arm and hardware for wear, and torque fasteners to the vehicle manufacturer’s specifications. After installation, perform a front-end alignment to help maintain proper handling and tire wear.
Quality Assurance
Delphi applies OE-focused engineering to its aftermarket steering and suspension portfolio and validates parts through temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and 720 hours of salt spray. Part number TC3357 is built to support consistent replacement quality for Toyota Matrix front lower suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Toyota | Matrix | Front Lower | — |
| 2012 | Toyota | Matrix | Front Lower | — |
| 2011 | Toyota | Matrix | Front Lower | — |
| 2010 | Toyota | Matrix | Front Lower | — |
| 2009 | Toyota | Matrix | Front Lower | — |
