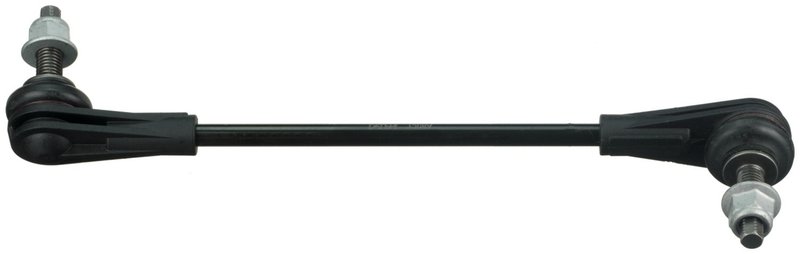

Delphi TC3414 Suspension Stabilizer Bar Link - Front Right

Delphi TC3414 Front Right Stabilizer Bar Link

The Delphi TC3414 is a front right suspension stabilizer bar link built for OE-style replacement on select Chevrolet applications. It is engineered with a steel ball pin, a plastic housing, and a dust boot to support consistent sway bar connection performance in everyday driving.

Compatible with 2016-2019 Chevrolet Cruze and 2016-2019 Chevrolet Volt, front right, this Delphi stabilizer link is a direct-fit service part for vehicles needing a front suspension stabilizer bar link replacement. The TC3414 part number is also referenced for the same application as Monroe Shocks & Struts 172286.

Key Features

• Front right suspension stabilizer bar link
• OE-style standard replacement from Delphi
• Steel ball pin construction
• Plastic housing with dust boot included
• Male M12 x 1.75 ends on both sides
• Locking nuts included
• Non-greaseable design
• Designed for 2016-2019 Chevrolet Cruze and 2016-2019 Chevrolet Volt, front right

Detailed Description

Delphi TC3414 is a suspension stabilizer bar link for the front right position on select Chevrolet Cruze and Chevrolet Volt models. Delphi applies OE-focused dimensional and material analysis to help ensure proper fitment and consistent replacement quality. The part is tested for temperature extremes and salt-spray exposure to support durability in demanding undercar conditions.

With matching M12 x 1.75 male ends, a 307.0 mm mounting-hole distance, and a dust boot included, this stabilizer link is built to restore the connection between the sway bar and suspension assembly. If you are searching for a Delphi TC3414 stabilizer bar link for Chevrolet Cruze front right or a Delphi TC3414 sway bar link for Chevrolet Volt front right, this part matches those applications.

What It Helps Address

• Front-end clunking or rattling from a worn stabilizer link
• Excessive play in the sway bar connection
• Uneven suspension response over bumps and turns
• Noise caused by deteriorated link joints or boots
• Replacement needs after corrosion or wear on the original link

Installation Notes and Tips

Verify the front right position and confirm the M12 x 1.75 thread specification before installation. Inspect adjacent sway bar and suspension components for wear, and compare the mounting-hole distance and overall dimensions to the removed part to confirm proper replacement. Torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

Delphi uses OE-based engineering and material analysis for aftermarket steering and suspension parts. This stabilizer bar link is evaluated for temperature resistance and salt-spray exposure to support dependable service in front suspension applications.
