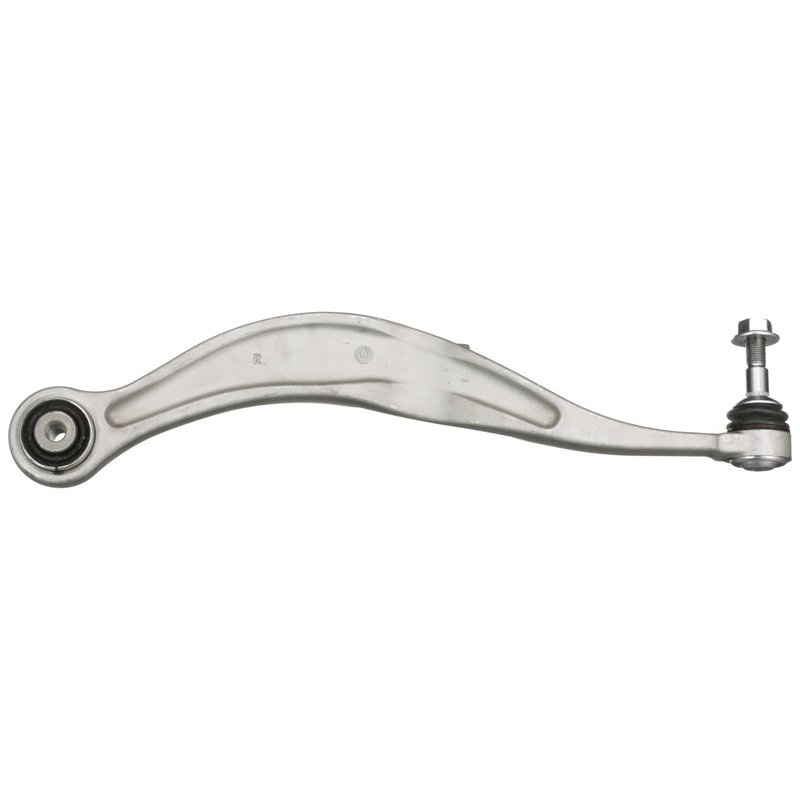

Delphi TC3564 Suspension Control Arm and Ball Joint Assembly - Rear Right Upper Rearward

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC3564 suspension control arm and ball joint assembly is designed for precise fitment on select BMW models, including the 535i GT, 535i GT xDrive, 550i GT, and 550i GT xDrive. This rear right upper rearward control arm offers a durable construction and reliable performance for maintaining proper suspension geometry.

• Compatible with BMW 535i GT, 535i GT xDrive, 550i GT, and 550i GT xDrive
• Rear right upper rearward position
• Control arm constructed from casting and forged materials for strength
• Includes natural rubber bushings for vibration dampening
• Machined ball joint mounting with threaded stud for secure fit
• Standard replacement grade suspension component
• Silver finish with precise mounting hole dimensions

Detailed Product Features and Specifications

The Delphi TC3564 control arm assembly features a robust casting and forged construction, ensuring durability under light suspension loads. It includes natural rubber bushings that help absorb road vibrations and reduce noise, contributing to a smoother ride. The ball joint is machined for accurate mounting and uses a threaded stud with a 14 mm thread diameter and an 83 mm stud length, providing a secure connection to the suspension system. This assembly is designed without grease fittings and is not greaseable, simplifying maintenance requirements. The control arm measures approximately 523 mm in length and 67 mm in maximum width, finished in a corrosion-resistant silver color. It comes with mounting hardware and features a single mounting hole with a 12.2 mm diameter, ensuring proper installation alignment.

Applications and Common Suspension Issues Addressed

• Replacement for worn or damaged rear right upper rearward control arm on BMW 535i GT and 550i GT models
• Corrects suspension misalignment and uneven tire wear
• Restores proper handling and steering response
• Eliminates clunking noises caused by deteriorated bushings or ball joints
• Improves ride comfort by maintaining suspension geometry

Installation Notes and Tips

When installing the Delphi TC3564 control arm assembly, ensure the vehicle is securely lifted and supported. Remove the old control arm carefully, noting the position of bushings and ball joints. Since this assembly is not greaseable and does not include grease fittings, no additional lubrication is required during installation. Verify torque specifications for the mounting hardware and ball joint stud to maintain safety and performance. Alignment check after installation is recommended to ensure optimal suspension function.

Quality Assurance and Warranty Information

Delphi suspension components meet standard replacement grade requirements, providing reliable performance for BMW 535i GT and 550i GT models. The TC3564 control arm assembly undergoes rigorous quality control to ensure fitment accuracy and durability. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as coverage may vary.
