OE Quality
60-Day Returns

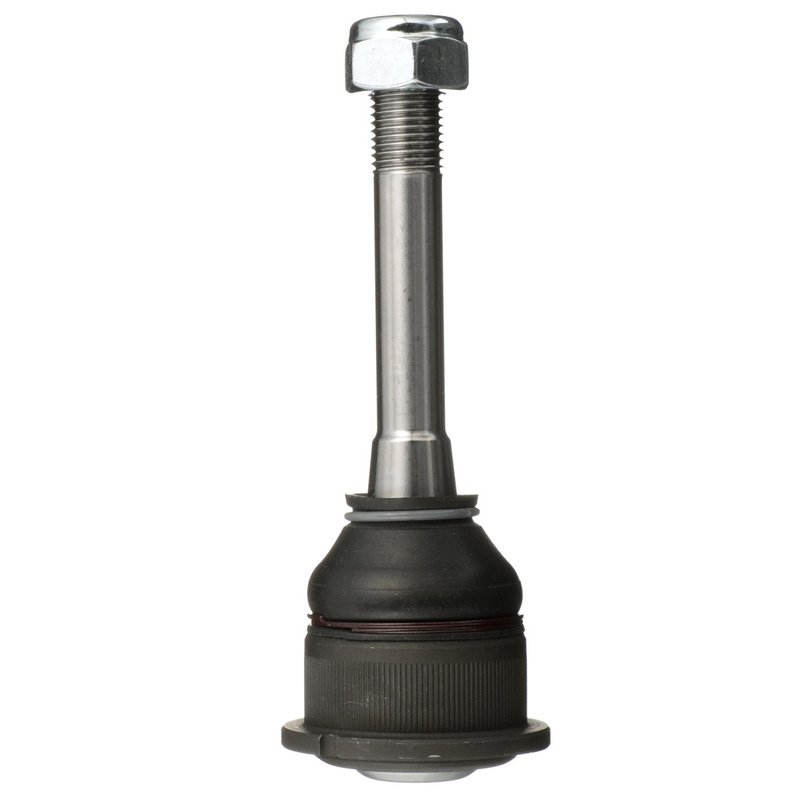

Delphi TC360 Suspension Ball Joint - Front Lower Inner
Delphi Suspension Ball Joint TC360 Overview
The Delphi TC360 suspension ball joint is engineered for reliable performance in BMW vehicles including the 318i, 318is, 325e, 325i, 325is, and M3 models. Constructed from durable steel with a gray finish, this standard suspension grade ball joint offers a pressed mounting type and comes as a complete assembly ready for installation.
- Material: Steel construction for strength and durability
- Maximum outside diameter: 1.969 inches (50.0 mm)
- Length and width: 50.0 mm each, ensuring precise fitment
- Stud thread diameter: 0.472 inches (12.0 mm) with 0.551 inches (14.0 mm) thread length
- Includes mounting hardware and nuts for installation
- Dust boot made from chloroprene rubber to protect internal components
- Standard suspension grade type, non-adjustable and non-greasable
Detailed Product Description
The Delphi TC360 suspension ball joint is designed to maintain proper suspension geometry and steering control in select BMW models. Its steel construction provides the necessary strength to withstand road stresses, while the chloroprene rubber dust boot helps prevent dirt and moisture intrusion, extending the life of the joint. The pressed mounting type ensures a secure fit, and included mounting hardware simplifies the replacement process. This ball joint assembly is not greaseable and does not include bushings, castle nuts, or cotter pins, reflecting its standard suspension grade design.
Compatible BMW Models and Applications
This suspension ball joint is compatible with the following BMW vehicles: 318i, 318is, 325e, 325i, 325is, and M3. It is suitable for drivers seeking a direct replacement part that meets OEM specifications for suspension and steering performance.
Common Issues Addressed by Delphi TC360 Ball Joint
- Excessive play or looseness in suspension components
- Uneven tire wear caused by worn ball joints
- Clunking or knocking noises during steering or over bumps
- Reduced steering responsiveness and control
- Protection against dirt and moisture with integrated dust boot
Installation Notes and Tips
- Ensure vehicle is securely lifted and supported before removal
- Remove old ball joint carefully to avoid damage to suspension parts
- Use included mounting hardware and nuts for proper installation
- Verify stud thread diameter and length match OEM specifications
- Check dust boot integrity after installation to prevent contamination
Quality Assurance and Warranty
Delphi suspension components are manufactured to meet industry standards for durability and performance. The TC360 ball joint undergoes rigorous quality control to ensure fitment and function. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to provide confidence in the product's reliability.
| Brand | Delphi |
|---|---|
| Part Number | TC360 |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Gray |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.22 |
| Height | 81.8 |
| Item Grade | Standard Replacement |
| Length | 50 |
| Material | Steel |
| Maximum Outside Diameter | 1.969 |
| Maximum Outside Diameter | 50.0 |
| Mount Plate Included | No |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Type | Pressed |
| Nuts Included | Yes |
| Position(s) | Front Lower Inner |
| Stud Tapered End 1 Diameter | 0.571 |
| Stud Tapered End 1 Diameter | 14.5 |
| Stud Tapered End 2 Diameter | 0.65 |
| Stud Tapered End 2 Diameter | 16.5 |
| Stud Thread Diameter | 0.472 |
| Stud Thread Diameter | 12.0 |
| Stud Thread Length | 0.551 |
| Stud Thread Length | 14.0 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 50.0 |
This part fits 23 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | BMW | 325i | Front Lower Inner | |
| 1992 | BMW | 325i | Front Lower Inner | |
| 1991 | BMW | 318i | Front Lower Inner | |
| 1991 | BMW | 318is | Front Lower Inner | |
| 1991 | BMW | 325i | Front Lower Inner | |
| 1991 | BMW | 325is | Front Lower Inner | |
| 1991 | BMW | M3 | Front Lower Inner | |
| 1990 | BMW | 325i | Front Lower Inner | |
| 1990 | BMW | 325is | Front Lower Inner | |
| 1990 | BMW | M3 | Front Lower Inner | |
| 1989 | BMW | 325i | Front Lower Inner | |
| 1989 | BMW | 325is | Front Lower Inner | |
| 1989 | BMW | M3 | Front Lower Inner | |
| 1988 | BMW | 325i | Front Lower Inner | |
| 1988 | BMW | 325is | Front Lower Inner | |
| 1988 | BMW | M3 | Front Lower Inner | |
| 1987 | BMW | 325e | Front Lower Inner | |
| 1987 | BMW | 325i | Front Lower Inner | |
| 1986 | BMW | 325e | Front Lower Inner | |
| 1985 | BMW | 318i | Front Lower Inner | |
| 1985 | BMW | 325e | Front Lower Inner | |
| 1984 | BMW | 318i | Front Lower Inner | |
| 1984 | BMW | 325e | Front Lower Inner |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
