Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

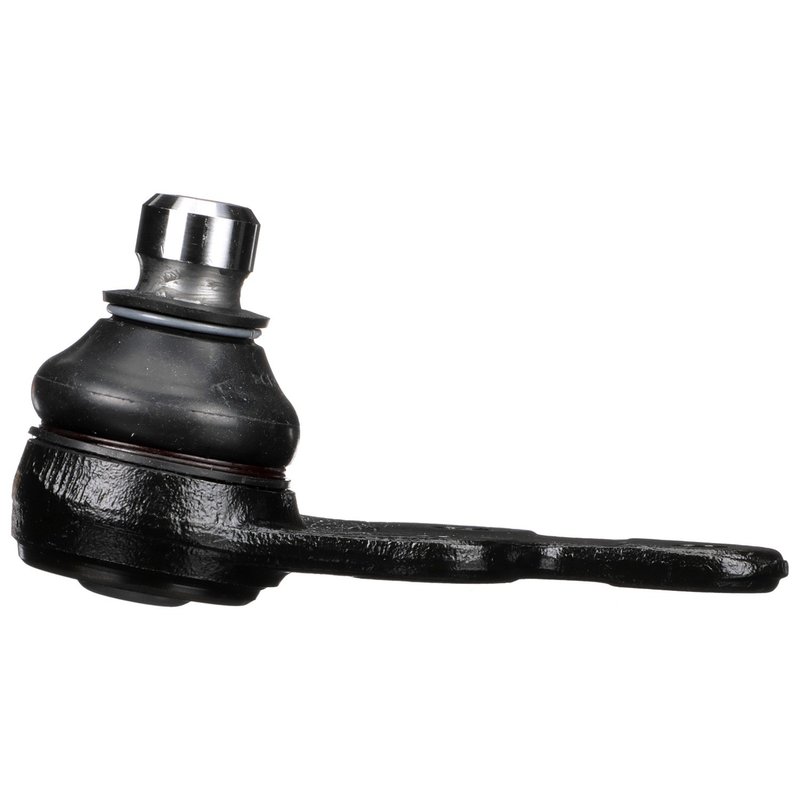

Delphi TC3672 Suspension Ball Joint - Front Right
| Brand | Delphi TC3672 |
|---|---|
| Position | Front Right |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Black |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 2.827 |
| Height | 71.8 |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 0.878 |
| Mounting Bolt Head Diameter | 22.3 |
| Mounting Bolt Length | 1.535 |
| Mounting Bolt Length | 39.0 |
| Mounting Bolt Shank Diameter | 0.394 |
| Mounting Bolt Shank Diameter | 10.0 |
| Mounting Bolt Thread Diameter | 10.0 |
| Mounting Bolt Thread Length | 1.181 |
| Mounting Bolt Thread Length | 30.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Nuts Included | Yes |
| Stud Thread Diameter | 0.83 |
| Tapered Stud | No |
| Washers Included | No |
| Width | 107.8 |
| Fits | Ford · 4 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Durable materials. Alloy steel ball and carbon steel housing support dependable performance.
Dust boot included. Helps protect the joint from contamination and wear.
Cross-references Dorman - OE Solutions 523-623, MOOG Chassis Products K500346 and MOOG Chassis Products RK622161 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Front Right Ball Joint
The Delphi TC3672 suspension ball joint is a standard replacement part for front right applications on select Ford Escape models. Built with OE-focused dimensional and material analysis, it is made to match the original fit and function needed for stable steering and suspension movement.
Fits 2019 Ford Escape, front right lower. Fits 2018 Ford Escape, front right. Fits 2013-2014 Ford Escape, front right. This part cross-references Dorman OE Solutions 523-623 for the same application.
Key Features
- Delphi TC3672 suspension ball joint for front right service
- Ball material: alloy steel SAE 5140
- Housing material: carbon steel SAE 1040
- Dust boot included with chloroprene rubber construction
- Mounting hardware included with nuts and mounting bolts
- Standard replacement grade for OE-style service
- Not greaseable and not adjustable
- Designed for select Ford Escape front suspension applications
Detailed Description
Delphi TC3672 is a front right suspension ball joint engineered for select Ford Escape models, including 2013-2014 Ford Escape front right, 2018 Ford Escape front right, and 2019 Ford Escape front right lower. Delphi applies OE-level material and dimensional analysis to help ensure proper compatibility between the replacement part and the original suspension geometry. The assembly uses alloy steel and carbon steel construction, with a dust boot to help protect the joint from road contamination.
For buyers searching for a Ford Escape front right lower ball joint, Delphi TC3672 offers a direct-fit replacement option built for suspension service where precise joint movement and secure mounting matter. The part number TC3672 is also useful when cross-shopping OE-style suspension components for the same vehicle coverage.
Common Repair Uses
- Front suspension looseness or play at the ball joint
- Clunking or knocking from the front right suspension
- Uneven steering response caused by worn joint movement
- Inspection failure related to ball joint wear
- Restoring proper front suspension articulation on Ford Escape models
Installation Notes
Verify vehicle year, model, and front right position before installation. This Delphi TC3672 assembly includes mounting bolts and nuts, and it is not greaseable, so no service fitting is provided. Always inspect the surrounding control arm, knuckle, and fasteners for wear or damage during replacement, and follow the vehicle manufacturer’s torque specifications.
Quality Assurance
Delphi tests its OE-style steering and suspension parts under extreme temperature and corrosion conditions, including sub-zero cold, high heat, and extended salt-spray exposure. That validation process supports consistent fit and durability for TC3672 in everyday service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Ford | Escape | Front Right Lower | — |
| 2018 | Ford | Escape | Front Right | — |
| 2014 | Ford | Escape | Front Right | — |
| 2013 | Ford | Escape | Front Right | — |
