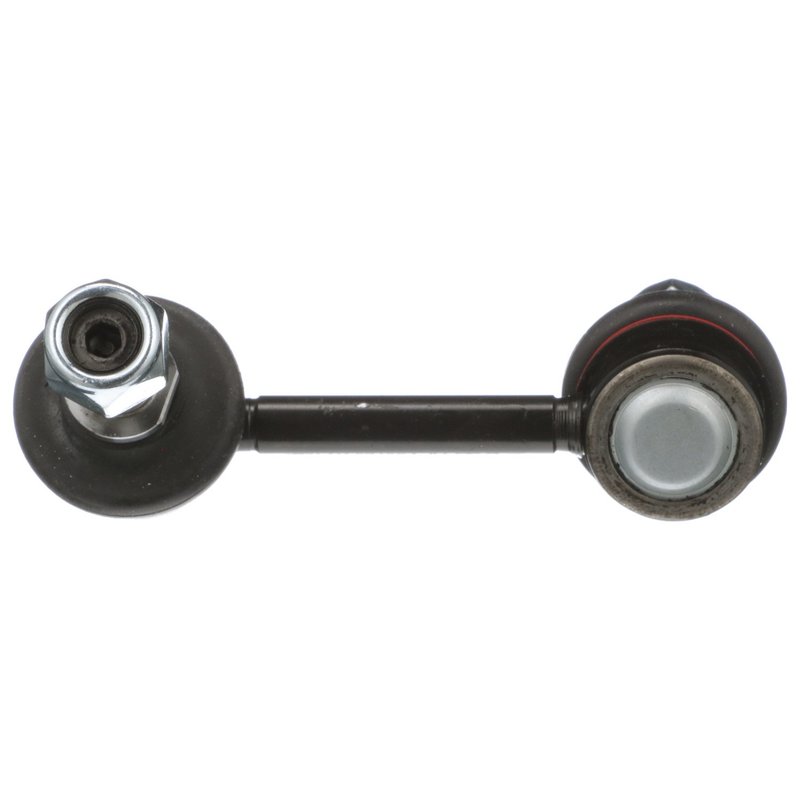

Delphi TC3726 Suspension Stabilizer Bar Link - Rear Left

Delphi Rear Left Stabilizer Bar Link TC3726

Delphi TC3726 is a rear left suspension stabilizer bar link built as a standard replacement for select Hyundai and Kia applications. It uses a steel ball pin, steel housing, and a POM bearing material to support consistent sway bar connection performance in everyday driving.

Compatible With 2013-2019 Hyundai Santa Fe XL, rear left; 2013-2018 Hyundai Santa Fe, rear left; 2013-2018 Hyundai Santa Fe Sport, rear left; and 2014-2015 Kia Sorento, rear left. The Delphi TC3726 is engineered with OE-focused dimensional and material analysis to help match the original fit and function.

Key Features

• Part number: TC3726
• Suspension stabilizer bar link for the rear left position
• Steel ball pin and steel housing for durable construction
• POM bearing material for controlled articulation
• Dust boot included to help protect the joint area
• Male M12 x 1.25 ends on both sides
• Locking nuts included
• Standard replacement grade

Detailed Description

This Delphi stabilizer bar link is designed for rear left suspension service on the Hyundai Santa Fe XL, Hyundai Santa Fe, Hyundai Santa Fe Sport, and Kia Sorento listed above. It measures 5.118 in. long, 2.165 in. wide, and 3.74 in. high, with an 88.0 mm distance between mounting holes. Delphi subjects its steering and suspension components to extreme temperature and salt-spray testing, including exposure below -40 C, above 120 C, and 720 hours of salt spray, to verify durability under demanding conditions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Clunking or rattling from the rear suspension
• Excessive sway bar movement over bumps and turns
• Loose or worn stabilizer link joints
• Uneven rear-end handling response
• Noise caused by degraded link bushings or bearings

Installation Notes and Tips

Verify the rear left position and confirm M12 x 1.25 thread fitment before installation. Inspect the sway bar, mounting points, and adjacent suspension components for wear, since a worn link can be accompanied by other loose parts. Use the included locking nuts during installation and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

Delphi applies OE-based dimensional and material analysis to support proper fitment and consistent replacement performance. The part is tested for temperature extremes and corrosion resistance to help meet the demands of daily suspension service.
