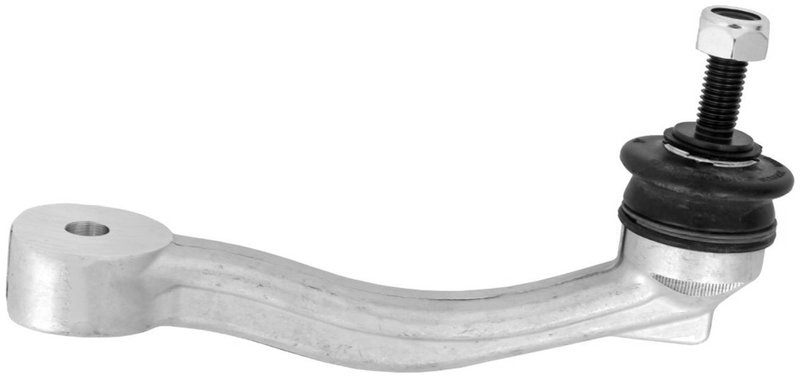

Delphi TC3780 Suspension Stabilizer Bar Link - Front

OE-Style Front Stabilizer Bar Link

Delphi TC3780 is a front suspension stabilizer bar link built for Jaguar applications that need precise sway bar connection and consistent steering response. It is engineered with OE-focused dimensional and material analysis to support proper fit on models such as the Jaguar XF, XJ, XK, and S-Type.

Delphi applies OE safety technology to its aftermarket steering and suspension portfolio, with testing that includes extreme temperature exposure and extended salt spray resistance. The result is a front stabilizer link designed for demanding road conditions and long-term compatibility.

Key Features

• Front suspension stabilizer bar link for Jaguar vehicles
• Part number: TC3780
• End 1 type: hole
• End 2 type: ball joint
• Bushings included for proper mounting support
• Dust boot included to help protect the joint area
• Locking nuts included
• Non-greaseable design
• Bearing material: polyoxymethylene (POM)
• Dimensions: 185.0 length, 41.0 width, 84.0 height

Detailed Description

Delphi TC3780 is a front stabilizer bar link for Jaguar suspension systems, including front applications on the XF, XJ, XK, XKR, XJR, XFR, XFR-S, XKR-S, Super V8, Vanden Plas, XJ8, and S-Type. It is built with a hole-style end on one side and a ball joint on the other, along with a dust boot and bushings to support stable articulation at the sway bar connection. The POM bearing material and OE-based dimensional checks help maintain the correct interface between the aftermarket part and the original suspension geometry. This part cross-references Beck/Arnley 101-7614 for the same application.

What It Helps Address

• Front-end clunking or rattling from a worn stabilizer link
• Excessive sway bar play that affects cornering stability
• Loose or inconsistent steering feel over uneven pavement
• Joint wear caused by damaged protective boots
• Fitment issues when replacing a worn Jaguar front sway bar link

Installation Notes and Tips

Install TC3780 on the front suspension only and verify the mounting-hole spacing, bolt thread size, and overall dimensions before installation. Inspect the sway bar, control arm mounting points, and adjacent bushings for wear before replacing the link. Because this is a non-greaseable stabilizer bar link, replacement is the normal service approach when the joint wears.

Quality Assurance

Delphi subjects its OE-based steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray exposure. That testing, combined with dimensional and material analysis, supports consistent fit and durability for Jaguar front suspension service.

Compatible With 2003-2008 Jaguar S-Type, front; 2004-2009 Jaguar XJ8, front; 2004-2009 Jaguar Vanden Plas, front; 2004-2009 Jaguar XJR, front; 2005-2009 Jaguar Super V8, front; 2007-2015 Jaguar XK, front; 2007-2015 Jaguar XKR, front; 2009-2015 Jaguar XF, front; 2010-2015 Jaguar XFR, front; 2011-2019 Jaguar XJ, front; 2012-2015 Jaguar XKR-S, front; 2013-2015 Jaguar XFR-S, front; 2014-2017 Jaguar XJR, front; 2014-2019 Jaguar F-Type, front; 2018-2019 Jaguar XJR575, front.
