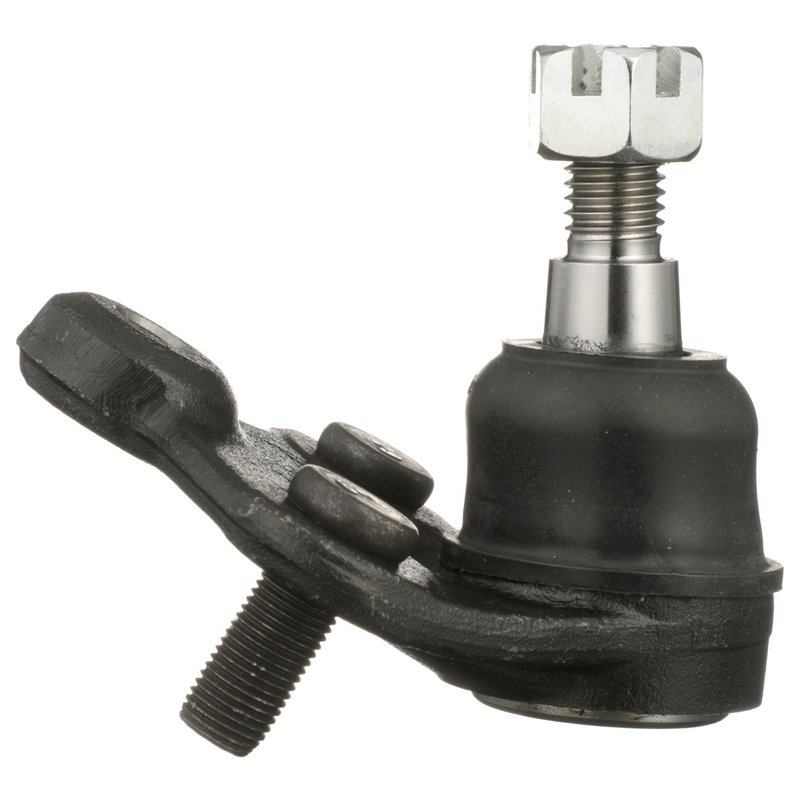

Delphi TC3809 Suspension Ball Joint - Left Lower
| Brand | Delphi TC3809 |
|---|---|
| Position | Left Lower |
| Ball Joint Assembly | Yes |
| Bushing Quantity | 0 |
| Castle Nut Included | Yes |
| Color | Black |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Distance Between Mounting Holes | 35.0 |
| Distance Between Mounting Holes | 60.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Height | 3.386 |
| Item Grade | Standard Replacement |
| Length | 105 |
| Material | Steel |
| Mount Plate Included | No |
| Mounting Bolt Head Diameter | 18.0 |
| Mounting Bolt Head Diameter | 21.9 |
| Mounting Bolt Length | 37.0 |
| Mounting Bolt Length | 37.5 |
| Mounting Bolt Shank Diameter | 13.0 |
| Mounting Bolt Thread Length | 25.0 |
| Mounting Bolt Thread Length | 30.0 |
| Mounting Bolt Thread Pitch | 1.25 |
| Mounting Bolts Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Type | Bolt In |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.689 |
| Stud Tapered End 1 Diameter | 17.5 |
| Stud Tapered End 2 Diameter | 0.789 |
| Stud Tapered End 2 Diameter | 20.05 |
| Stud Thread Diameter | 14.0 |
| Stud Thread Length | 0.827 |
| Stud Thread Length | 21.0 |
| Stud Thread Pitch | 2.0 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Type | Premium |
| Washers Included | No |
| Width | 90.0 |
| Fits | Honda · 2 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Built with a dust boot and threaded stud for dependable operation.
Bolt-in design. Includes mounting hardware, nuts, cotter pin, and bolts.
Cross-references Beck/Arnley 101-6021, Dorman - Premium BJ59083PR and 51230-SWA-A01 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC3809 Left Lower Ball Joint
Delphi TC3809 is a premium suspension ball joint built for OE-style replacement on the left lower position. It is engineered with a steel body, threaded stud, dust boot, and included mounting hardware to support a precise suspension repair on select Honda CR-V models.
Compatible with 2010-2011 Honda CR-V, left lower, this Delphi ball joint is built to match OE dimensional and material requirements for dependable fitment. The TC3809 part number is also referenced in aftermarket cross applications for the same vehicle fitment.
Key Features
- Premium suspension ball joint for the left lower position
- Steel construction with black finish
- Threaded tapered stud with 14.0 mm stud thread diameter
- Dust boot included with chloroprene rubber material
- Castle nut, cotter pin, nuts, and mounting bolts included
- Bolt-in mounting type with 3 mounting holes
- Standard replacement grade for OE-style service
- Delphi TC3809 part number for easy identification
Detailed Description
Delphi applies OE-focused engineering to its aftermarket steering and suspension portfolio, and the TC3809 follows that approach with dimensional and material analysis aimed at proper fit and function. This suspension ball joint is built for the left lower position on 2010-2011 Honda CR-V models and uses a bolt-in design with a tapered threaded stud for secure installation. Delphi also subjects its parts to extreme temperature and corrosion testing, including sub-zero and high-heat exposure plus extended salt spray testing, to verify durability in demanding conditions.
This part cross-references Beck/Arnley 101-6021 and Dorman - Premium BJ59083PR for the same application. If you are replacing a worn Honda CR-V lower ball joint, the Delphi TC3809 provides a direct-service option for restoring suspension geometry and steering response.
What It Helps Fix
- Front-end clunking or popping from a worn lower ball joint
- Excessive play in the left lower suspension joint
- Uneven tire wear caused by loose suspension geometry
- Steering wander or reduced directional stability
- Inspection failure related to ball joint wear or looseness
Installation Notes and Tips
Install the TC3809 on the left lower position only for the confirmed Honda CR-V applications listed. Verify stud taper, mounting hole alignment, and fastener torque against the vehicle service information before final assembly. Because this is a bolt-in suspension component, clean the mounting surfaces and inspect adjacent control arm and steering parts for wear before completing the repair.
Quality Assurance
Delphi backs this ball joint with OE-level engineering practices, including dimensional and material validation for aftermarket fitment. The part is also tested across extreme temperature ranges and salt spray exposure to support corrosion resistance and long-term service performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Honda | CR-V | Left Lower | — |
| 2010 | Honda | CR-V | Left Lower | — |
