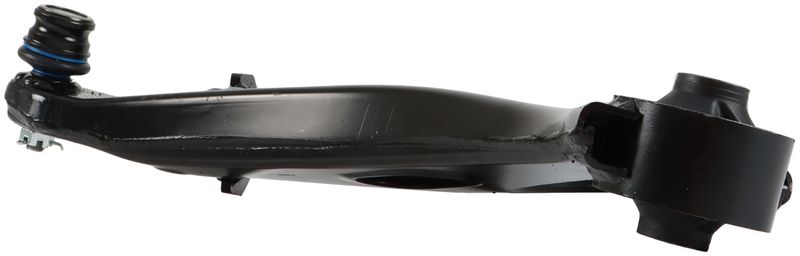

Delphi TC3962 Suspension Control Arm and Ball Joint Assembly - Front Left

OE-Style Front Left Control Arm Assembly

The Delphi TC3962 is a front left suspension control arm and ball joint assembly built for 2010-2014 Subaru Legacy and 2010-2014 Subaru Outback applications. It combines OE-focused materials, pre-greased components, and a stamped steel arm for direct replacement service on the front suspension.

Key Features

• Fits 2010-2014 Subaru Legacy, front left
• Fits 2010-2014 Subaru Outback, front left
• Delphi part number TC3962
• Stamped steel control arm construction
• Ball joint included with bolt-in mounting type
• Pre-greased design with bushings included
• Dust boot included with chloroprene rubber boot material
• Black rubber bushings and black boot color
• Premium grade replacement for power steering applications
• Mounting hardware included

Detailed Description

Delphi TC3962 is engineered as a front left suspension control arm assembly for Subaru Legacy and Subaru Outback models from 2010 through 2014. Delphi applies OE-level dimensional and material analysis to help ensure proper fitment and consistent suspension geometry, while the steel stamped arm construction supports everyday road use. The assembly includes the ball joint, bushings, dust boot, locking nut, and mounting hardware, making it a complete replacement for worn front suspension components. This part cross-references MOOG Chassis Products RK623344 for the same application.

Common Problems This Part Can Address

• Front-end clunking or knocking from worn control arm bushings
• Loose or unstable steering feel at the front left corner
• Uneven tire wear caused by suspension wear
• Ball joint play that affects alignment and handling
• Cracked or deteriorated rubber bushings and dust boot damage

Installation Notes and Tips

Confirm front left position before installation and inspect related suspension components, alignment angles, and fasteners during service. Because this assembly is not adjustable, final wheel alignment should be performed after installation on the Subaru Legacy or Subaru Outback. Verify thread direction, mounting points, and steering-side orientation against the removed part before tightening to specification.

Quality Assurance

Delphi subjects steering and suspension components to extreme temperature and corrosion testing, including sub-zero and high-heat exposure plus extended salt-spray testing. The brand also uses dimensional and material analysis to support OE-style fit and performance in aftermarket applications.
