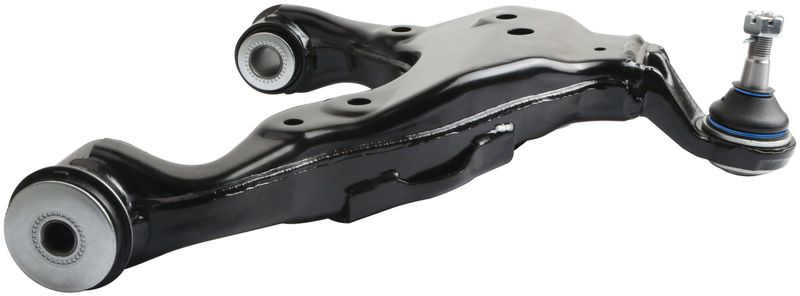

Delphi TC3986 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

OE-Style Front Left Lower Control Arm

Delphi TC3986 is a front left lower suspension control arm and ball joint assembly built for 2016-2022 Toyota Tacoma applications. It combines OE-focused dimensional control with premium materials to support precise suspension geometry and consistent steering response.

For Tacoma owners replacing a worn front left lower arm, TC3986 provides a direct-fit solution with the ball joint, bushings, dust boot, and mounting hardware included. Delphi TC3986 is engineered for the demands of daily driving and harsh road conditions.

Key Features

• Fits 2016-2022 Toyota Tacoma, front left lower
• Part number: TC3986
• Stamped steel control arm with painted black finish
• Ball joint included with press-in mounting type and threaded stud
• Pre-greased design with bushings and dust boot included
• Chloroprene rubber dust boot and rubber bushings
• Mounting hardware and locking nut included
• Premium grade construction for OE-style replacement
• Non-adjustable, power steering application

Detailed Description

Delphi TC3986 is a suspension control arm and ball joint assembly for the front left lower position on the 2016-2022 Toyota Tacoma. The stamped steel arm uses a painted black finish and includes the ball joint, bushings, dust boot, mounting hardware, and locking nut for a complete replacement assembly. Delphi applies OE dimensional and material analysis to help maintain proper fit and suspension alignment on the Tacoma platform. This part cross-references MOOG Chassis Products RK623414 and Mevotech Supreme CMS861297 for the same application.

Common Repair Symptoms

• Front-end clunking or knocking over bumps
• Uneven tire wear from worn suspension geometry
• Loose or wandering steering feel
• Excessive play from a worn ball joint or bushings
• Visible cracking, corrosion, or damage to the lower control arm

Installation Notes

Install TC3986 on the front left lower position only. Because the ball joint is press-in and the arm is non-adjustable, proper removal and installation tools are important for a clean service job. After installation on a Toyota Tacoma, verify alignment and inspect adjacent suspension components for wear before returning the vehicle to service.

Quality Assurance

Delphi subjects its steering and suspension parts to extreme temperature and salt-spray testing, along with dimensional and material checks to support OE-level fit and durability. The TC3986 is built using Delphi’s OE-focused engineering approach for the Toyota Tacoma front left lower suspension position.
