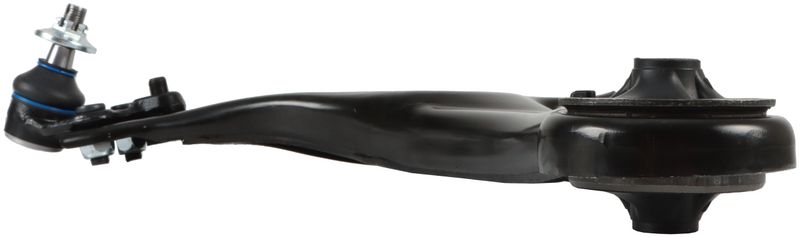

Delphi TC4001 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

OE-Style Front Left Lower Control Arm

Delphi TC4001 is a front left lower suspension control arm and ball joint assembly for select Toyota Prius models. Built with a stamped steel arm, pre-greased ball joint, and included bushings, it is a direct-fit replacement for restoring front suspension geometry and steering response.

Key Features

• Fits 2004-2009 Toyota Prius, front left lower
• Stamped steel control arm with painted black finish
• Ball joint included with bolt-in mounting and threaded stud
• Pre-greased design with dust boot, bushings, and mounting hardware included
• Rubber bushings and chloroprene rubber dust boot for durable service
• Premium-grade replacement engineered to match OE dimensions and materials
• Part number: TC4001

Detailed Description

Delphi TC4001 is engineered for the front left lower position on the Toyota Prius, covering 2004-2009 model years. Delphi applies OE-focused dimensional and material analysis to help ensure proper fitment between the replacement part and the original suspension layout. The assembly includes the control arm, ball joint, bushings, dust boot, locking nut, and mounting hardware, making it a complete service part for front suspension repair. This part cross-references MOOG Chassis Products RK640960 for the same application.

For Prius owners addressing worn suspension components, TC4001 supports accurate wheel control and stable front-end operation. The black painted stamped-steel construction, rubber bushings, and pre-greased ball joint are specified for everyday road use, while the bolt-in ball joint design simplifies replacement of the lower arm assembly. If you are searching for a Toyota Prius front left lower control arm, Delphi TC4001 is a direct replacement option to compare against OE-style service parts.

Common Repair Issues

• Clunking or knocking from the front suspension
• Excessive play in the lower control arm or ball joint
• Uneven tire wear caused by worn suspension geometry
• Steering wander or reduced front-end stability
• Cracked or deteriorated bushings and dust boot damage

Installation Notes and Tips

Install TC4001 at the front left lower position only. Verify the threaded stud direction, bushing spacing, and mounting points against the original part before installation. Because the assembly is pre-greased and includes a dust boot, no grease service is required after installation. A professional alignment is recommended after replacing any lower control arm assembly on a Toyota Prius.

Quality Assurance

Delphi tests steering and suspension components across extreme temperature and corrosion conditions, including sub-zero cold, high heat, and extended salt-spray exposure. The brand also uses dimensional and material analysis to support OE-level fit and function for aftermarket replacement parts.
