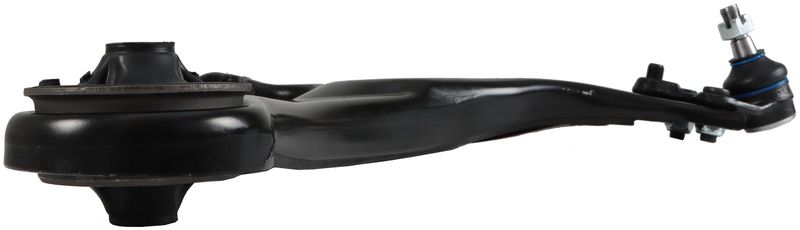

Delphi TC4024 Suspension Control Arm and Ball Joint Assembly - Front Right Lower

OE-Style Front Right Lower Control Arm

Delphi TC4024 is a front right lower suspension control arm and ball joint assembly built for select Toyota Corolla and Toyota Matrix applications. It combines the control arm, ball joint, bushings, and dust boot in one replacement assembly for a direct-service suspension repair.

Built with Delphi OE-focused engineering, this premium steel control arm is designed for the front right lower position on 2009-2013 Toyota Corolla and 2009-2014 Toyota Matrix models.

Key Features

• Part number: TC4024
• Front right lower suspension control arm and ball joint assembly
• Fits 2009-2014 Toyota Matrix, front right lower
• Fits 2009-2013 Toyota Corolla, front right lower
• Steel control arm with casting/forged construction
• Ball joint included with bolt-in mounting type
• Threaded ball joint stud with locking nut included
• Pre-greased design with bushings included
• Dust boot included; chloroprene rubber boot material
• Black rubber bushings and black boot color
• Premium grade, non-adjustable, greaseable: no
• Mounting hardware included
• Power steering type application

Detailed Description

Delphi TC4024 is engineered as a replacement suspension control arm assembly for the front right lower position. It uses a steel arm construction with a bolt-in ball joint, rubber bushings, and a pre-greased design to simplify service while restoring suspension geometry on the Toyota Corolla and Toyota Matrix. The assembly is built to OE-style dimensional and material standards for proper fitment and consistent operation.

Delphi subjects steering and suspension components to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability in harsh conditions. This part cross-references MOOG Chassis Products RK622202 and Mevotech Supreme CMS86194 for the same application. Part number TC4024 is a direct replacement choice for front right lower suspension service on 2009-2013 Toyota Corolla and 2009-2014 Toyota Matrix models.

Common Repair Uses

• Clunking or knocking from the front suspension
• Excessive play in the front right lower control arm
• Worn or torn ball joint dust boot
• Loose or deteriorated suspension bushings
• Uneven tire wear caused by worn front suspension components

Installation Notes and Tips

Verify the front right lower position before installation and compare the original arm, ball joint style, and bushing dimensions to the removed part. Because this assembly is non-adjustable, proper installation and final alignment are important after replacement. Inspect adjacent suspension components, fasteners, and steering linkage wear while the control arm is removed.

Quality Assurance

Delphi applies OE-focused dimensional and material analysis to improve part-to-vehicle consistency and uses durability testing that includes temperature cycling and salt-spray exposure. TC4024 is a premium-grade suspension control arm assembly built for OE-style service replacement.
