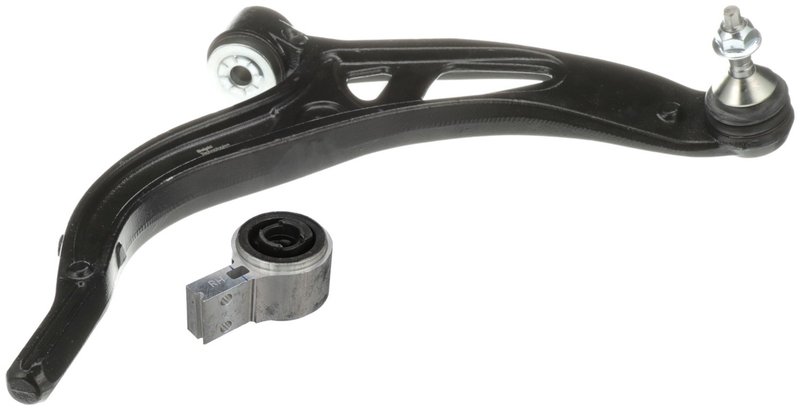

Delphi TC4036 Suspension Control Arm and Ball Joint Assembly - Front Right Lower

Front Right Lower Control Arm for Explorer

Restore precise front suspension geometry with the Delphi TC4036 suspension control arm and ball joint assembly. This premium OE-style replacement is built for the front right lower position on select Ford Explorer models and is engineered for consistent steering response, stable handling, and dependable fitment.

Key Features

• Fits 2011-2019 Ford Explorer, front right lower
• Delphi part number TC4036
• Control arm and ball joint assembly for the front suspension
• Steel casting/forged construction with painted finish
• Pre-greased design with included bushings and dust boot
• Ball joint included with threaded stud type
• Mounting hardware and locking nut included
• Black rubber bushings and chloroprene rubber dust boot
• Non-adjustable, premium-grade replacement

Detailed Description

Delphi TC4036 is a front right lower suspension control arm and ball joint assembly made for 2011-2019 Ford Explorer applications. It uses steel construction with a painted black finish, rubber bushings, and a chloroprene rubber dust boot to support long-term suspension service. The assembly arrives pre-greased and includes the ball joint, bushings, dust boot, mounting hardware, and locking nut for a complete replacement at the corner of the vehicle.

Delphi applies OE-focused dimensional and material analysis to help match the original part’s fit and function. The TC4036 is a direct replacement choice for Ford Explorer front suspension service where worn joints, loose steering feel, or uneven tire wear point to a failing lower control arm assembly. This part cross-references MOOG Chassis Products RK622215 for the same application.

Common Issues This Part Can Help Address

• Clunking or popping from the front suspension
• Excessive play in the front right lower control arm
• Uneven tire wear caused by worn suspension joints
• Loose or imprecise steering response
• Visible cracking or deterioration in bushings or ball joint boot

Installation Notes and Tips

Fits 2011-2019 Ford Explorer, front right lower. Verify the mounting hole diameter, stud orientation, and suspension layout before installation. Because this assembly is non-adjustable, final alignment should be checked after replacement. For best results, inspect adjacent suspension components such as tie rods, sway bar links, and the opposite-side control arm while the vehicle is apart.

Quality Assurance

Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure plus extended salt-spray testing. That OE-focused validation supports consistent material performance and fit accuracy for Ford Explorer front suspension service. Delphi TC4036 is built to meet premium aftermarket expectations for the front right lower position.
