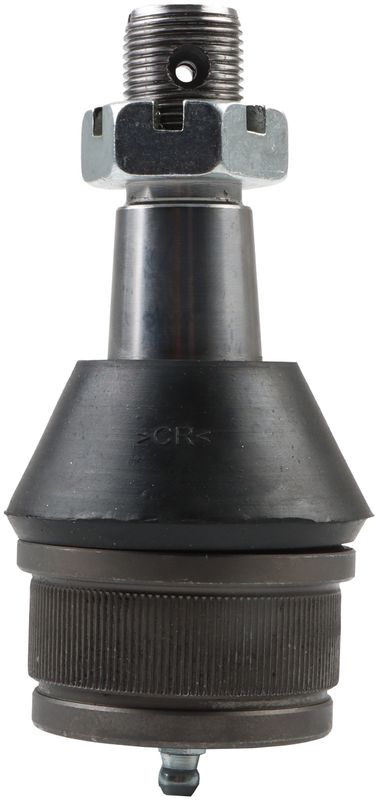

Delphi TC4169 Suspension Ball Joint - Front Lower
| Brand | Delphi TC4169 |
|---|---|
| Position | Front Lower |
| Maximum Outside Diameter | 2.177 |
| Maximum Outside Diameter | 55.30 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | Yes |
| Stud Thread Length | 1.220 |
| Stud Thread Length | 31.00 |
| Steering Type | Power |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Fits | Dodge · 6 vehicles |
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering parts.
Extreme-condition tested. Built to handle subzero cold, high heat, and 720 hours of salt spray.
Front lower fitment. Standard replacement ball joint for the front lower suspension position.
Cross-references Dorman - Premium B7269PR, Mevotech Supreme MK7269 and MOOG Chassis Products K7269 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Front Lower Ball Joint for Ram HD
Delphi TC4169 is a front lower suspension ball joint built for 1997-1999 Dodge Ram 2500 and Ram 3500 applications. It is a standard replacement part with a press-in mounting design, pre-greased construction, and included dust boot, cotter pin, castle nut, grease fitting, and mounting hardware.
Key Features
- Fits 1997-1999 Dodge Ram 2500, front lower
- Fits 1997-1999 Dodge Ram 3500, front lower
- Standard replacement suspension ball joint
- Press-in mounting type with threaded stud
- Pre-greased and greaseable design
- Rubber dust boot included
- Castle nut, cotter pin, grease fitting, and mounting hardware included
- Counterclockwise (left) thread direction
- Delphi TC4169
Detailed Description
Delphi TC4169 is engineered as a front lower ball joint for Dodge Ram 2500 and Dodge Ram 3500 trucks from 1997 through 1999. It uses a press-in installation style, a tapered threaded stud, and a plastic bearing type with a rubber dust boot for serviceable suspension operation. Delphi applies OE-focused dimensional and material analysis to help maintain proper fit between the original suspension geometry and the replacement part. This part cross-references MOOG Chassis Products K7269 for the same application.
Common Repair Uses
- Restoring front suspension joint movement on Ram HD trucks
- Replacing worn or loose lower ball joints
- Addressing front-end clunking or play during steering input
- Correcting uneven tire wear caused by suspension looseness
- Servicing a damaged dust boot or greaseable joint assembly
Installation Notes
Verify front lower position and left-thread orientation before installation. Because this is a press-in ball joint, proper suspension service tools are required for removal and installation. Inspect the control arm, steering components, and surrounding hardware for wear before reassembly. Grease the joint through the fitting after installation if service procedures call for it.
Quality Assurance
Delphi subjects its OE-style steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure, to evaluate durability and corrosion resistance. Delphi TC4169 is built using OE-based engineering and dimensional checks to support consistent fitment on the listed Dodge Ram 2500 and Ram 3500 models.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 2500 | RWD | Front Lower | — |
| 1999 | Dodge | Ram 3500 | RWD | Front Lower | — |
| 1998 | Dodge | Ram 2500 | RWD | Front Lower | — |
| 1998 | Dodge | Ram 3500 | RWD | Front Lower | — |
| 1997 | Dodge | Ram 2500 | RWD | Front Lower | — |
| 1997 | Dodge | Ram 3500 | RWD | Front Lower | — |
