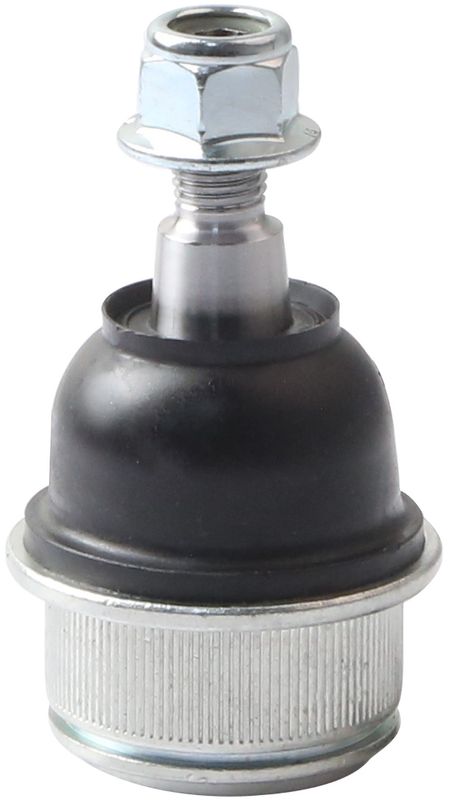

Delphi TC4199 Suspension Ball Joint - Front Lower
| Brand | Delphi TC4199 |
|---|---|
| Position | Front Lower |
| Maximum Outside Diameter | 2.138 |
| Maximum Outside Diameter | 54.30 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | No |
| Stud Thread Length | 0.913 |
| Stud Thread Length | 23.20 |
| Steering Type | Power |
| Wrench Size | 6 mm |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Fits | Chrysler and Dodge · 27 vehicles |
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering parts.
Extreme testing. Built to handle harsh temperatures and 720 hours of salt spray.
Front lower fit. Standard replacement ball joint with press-in mounting and pre-greased design.
Cross-references Dorman - Premium BJ81225XL, Mevotech Supreme MS25503 and MOOG Chassis Products K500120 for the same application. See all 9.
Delphi TC4199 Front Lower Ball Joint
Delphi TC4199 is a standard replacement suspension ball joint built for front lower applications on select Dodge, Chrysler, and Journey platforms. It combines OE-based dimensional analysis with tested materials to support proper fit and consistent steering response.
Key Features
- Front lower suspension ball joint assembly
- Press-in mounting type with included mounting hardware
- Pre-greased design with rubber dust boot
- Standard replacement grade, non-adjustable
- Counterclockwise (left) thread direction
- Plastic bearing type and threaded stud design
- Tapered stud construction for secure seating
Detailed Product Overview
Delphi TC4199 is engineered for vehicles that require a front lower press-in ball joint, including 2009-2020 Dodge Journey, 2011-2014 Chrysler 200, 2008-2014 Dodge Avenger, and 2007-2010 Chrysler Sebring. Delphi applies OE-focused engineering to its aftermarket steering and suspension portfolio, with dimensional and material analysis used to match the original part as closely as possible. The TC4199 features a pre-greased, sealed design with a rubber dust boot and standard replacement construction for everyday service needs. This part cross-references MOOG Chassis Products K500120 for the same application.
Common Repair Applications
- Front-end looseness or play at the lower control arm connection
- Clunking or popping noises from the front suspension
- Uneven tire wear related to worn steering and suspension joints
- Restoring steering feel on Dodge Journey, Chrysler 200, Dodge Avenger, or Chrysler Sebring models
- Replacing a worn press-in front lower ball joint during suspension service
Installation Notes and Tips
Fits 2009-2020 Dodge Journey, front lower. Fits 2011-2014 Chrysler 200, front lower. Fits 2008-2014 Dodge Avenger, front lower. Fits 2007-2010 Chrysler Sebring, front lower. Verify left-hand thread direction, press-in mounting style, and tapered stud dimensions before installation. Because this is a press-in component, proper removal and installation tools are recommended to avoid damage to the control arm or surrounding suspension parts. Delphi TC4199 is pre-greased and includes a dust boot and mounting hardware.
Quality Assurance
Delphi subjects its OE-style steering and suspension parts to temperature testing below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure and dimensional checks for fit consistency. Delphi TC4199 reflects that OE-focused validation approach for front lower suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Dodge | Journey | Front Lower | — |
| 2019 | Dodge | Journey | Front Lower | — |
| 2018 | Dodge | Journey | Front Lower | — |
| 2017 | Dodge | Journey | Front Lower | — |
| 2016 | Dodge | Journey | Front Lower | — |
| 2015 | Dodge | Journey | Front Lower | — |
| 2014 | Chrysler | 200 | Front Lower | — |
| 2014 | Dodge | Avenger | Front Lower | — |
| 2014 | Dodge | Journey | Front Lower | — |
| 2013 | Chrysler | 200 | Front Lower | — |
| 2013 | Dodge | Avenger | Front Lower | — |
| 2013 | Dodge | Journey | Front Lower | — |
| 2012 | Chrysler | 200 | Front Lower | — |
| 2012 | Dodge | Avenger | Front Lower | — |
| 2012 | Dodge | Journey | Front Lower | — |
| 2011 | Chrysler | 200 | Front Lower | — |
| 2011 | Dodge | Avenger | Front Lower | — |
| 2011 | Dodge | Journey | Front Lower | — |
| 2010 | Chrysler | Sebring | Front Lower | — |
| 2010 | Dodge | Avenger | Front Lower | — |
| 2010 | Dodge | Journey | Front Lower | — |
| 2009 | Chrysler | Sebring | Front Lower | — |
| 2009 | Dodge | Avenger | Front Lower | — |
| 2009 | Dodge | Journey | Front Lower | — |
| 2008 | Chrysler | Sebring | Front Lower | — |
| 2008 | Dodge | Avenger | Front Lower | — |
| 2007 | Chrysler | Sebring | Front Lower | — |
