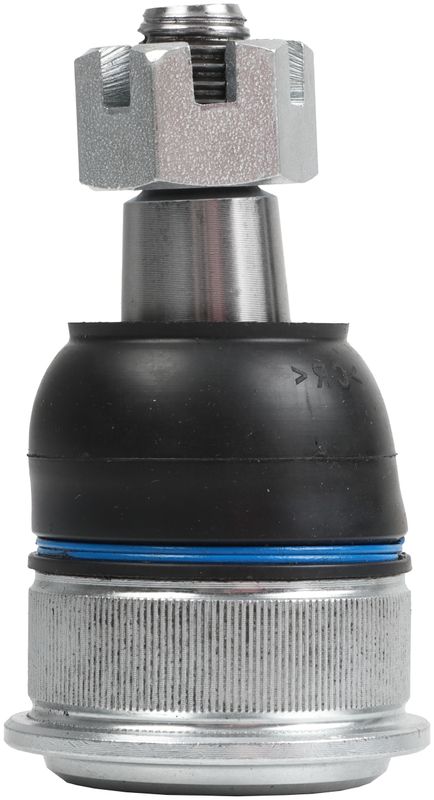

Delphi TC4200 Suspension Ball Joint - Front Lower

Front Lower Ball Joint for Accord and TLX

Delphi TC4200 is a front lower suspension ball joint built for OE-style replacement on select Honda and Acura applications. It is pre-greased, includes a dust boot, castle nut, cotter pin, and mounting hardware, and uses a press-in design for the front lower position.

Compatible with 2013-2017 Honda Accord front lower and 2015-2020 Acura TLX front lower, this Delphi TC4200 ball joint is engineered for direct-fit suspension service. Delphi applies OE dimensional and material analysis to help maintain proper fit and consistent steering and suspension operation.

Key Features

• Part number: TC4200
• Front lower suspension ball joint
• Standard replacement grade
• Pre-greased for service-ready installation
• Press-in mounting type
• Counterclockwise (left) thread direction
• Dust boot included with rubber boot material
• Castle nut, cotter pin, and mounting hardware included
• Non-greaseable, sealed design
• Plastic bearing type with tapered stud

Detailed Description

Delphi TC4200 is built for vehicles that require a front lower press-in ball joint with OE-style dimensions and materials. It features a tapered stud, threaded stud design, and standard replacement construction for service on the front suspension. The unit is pre-greased and sealed with a rubber dust boot, while the included castle nut and cotter pin support proper fastening during installation. This part cross-references MOOG Chassis Products K500315 for the same application.

Use Delphi TC4200 when servicing front lower suspension wear on 2013-2017 Honda Accord and 2015-2020 Acura TLX models. The part number TC4200 is also a useful reference when sourcing a direct-fit replacement for these applications.

Common Issues This Part Can Address

• Front-end looseness or play from a worn ball joint
• Clunking or knocking from the lower suspension area
• Uneven tire wear related to suspension joint wear
• Steering instability caused by excess joint movement
• Inspection failure due to damaged or worn front lower joint components

Installation Notes and Tips

This is a press-in ball joint, so proper removal and installation tools are required. Verify left-thread orientation, front lower position, and vehicle application before service. Inspect the control arm and surrounding suspension components for wear before installing the new joint. Always torque fasteners to the vehicle manufacturer’s specifications and confirm cotter pin engagement after assembly.

Quality Assurance

Delphi applies OE-focused testing and dimensional analysis to its steering and suspension parts. TC4200 is evaluated for temperature extremes and salt-spray exposure to support durability in real-world conditions. The part number TC4200 reflects a standard replacement ball joint built for consistent fit on the listed Honda Accord and Acura TLX applications.
