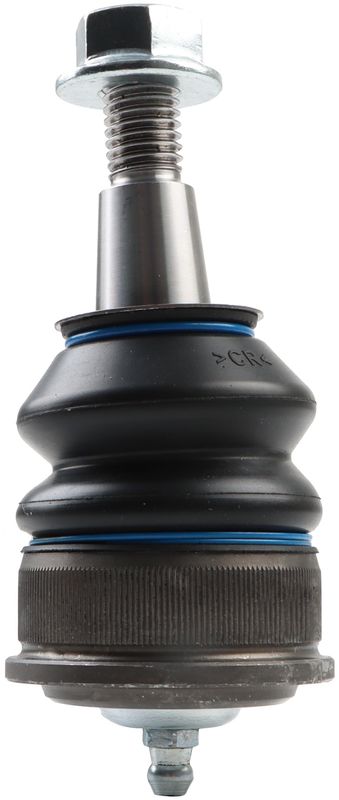

Delphi TC4202 Suspension Ball Joint - Front Upper
| Brand | Delphi TC4202 |
|---|---|
| Position | Front Upper |
| Maximum Outside Diameter | 1.929 |
| Maximum Outside Diameter | 49.00 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | Yes |
| Stud Thread Length | 0.886 |
| Stud Thread Length | 22.50 |
| Steering Type | Power |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Fits | Cadillac, Chevrolet, and GMC · 38 vehicles |
OE-inspired engineering. Delphi applies original-equipment expertise to its aftermarket steering and suspension parts.
Built for harsh conditions. Tested from -40°C to 120°C and through 720 hours of salt spray.
Greaseable design. Pre-greased with a grease fitting and dust boot for easier service.
Cross-references Mevotech Supreme MS50575, MOOG Chassis Products K500340 and Suspensia X07BJ0301 for the same application. See all 7.
Delphi TC4202 Front Upper Ball Joint
Delphi TC4202 is a standard replacement front upper suspension ball joint built for OE-style fit and function. It is pre-greased, greaseable, and includes a rubber dust boot to help protect the joint in demanding daily driving conditions.
Key Features
- Front upper suspension ball joint for select GM trucks and SUVs
- Standard replacement design with press-in mounting type
- Pre-greased and greaseable for service-friendly maintenance
- Rubber dust boot and grease fitting included
- Thread direction: counterclockwise (left)
- Ball joint assembly and mounting hardware included
- Plastic bearing type with tapered stud design
Detailed Description
Delphi TC4202 is engineered for front upper suspension service on applications such as the Cadillac Escalade, Chevrolet Tahoe, GMC Yukon, Chevrolet Silverado 1500, and GMC Sierra 1500. Delphi applies OE-level dimensional and material analysis to help ensure proper compatibility with the original suspension geometry. The joint is built as a press-in, standard replacement part with a threaded stud, tapered stud ends, and a rubber dust boot for added protection. This part cross-references MOOG Chassis Products K500340 for the same application.
What It Helps Fix
- Front-end looseness or play from a worn upper ball joint
- Clunking or popping noises over bumps and turns
- Uneven tire wear caused by suspension joint wear
- Steering wander or reduced road feel in power steering systems
- Inspection failure due to excessive suspension movement
Installation Notes and Tips
- Compatible With 2015-2020 Cadillac Escalade, front upper.
- Compatible With 2015-2020 Cadillac Escalade ESV, front upper.
- Compatible With 2016-2020 Chevrolet Tahoe, front upper.
- Compatible With 2016-2020 GMC Yukon, front upper.
- Compatible With 2015-2020 GMC Yukon XL, front upper.
- Compatible With 2014-2018 Chevrolet Silverado 1500, front upper.
- Compatible With 2014-2018 GMC Sierra 1500, front upper.
- Press-in installation requires proper suspension service tools and alignment after replacement.
- Verify left-thread orientation and front upper position before installation.
Quality Assurance
Delphi subjects its OE-style steering and suspension components to temperature extremes below -40 C and above 120 C, along with extended salt-spray exposure testing. That validation process supports consistent fitment and durability for service on Cadillac Escalade, Chevrolet Tahoe, GMC Yukon, Silverado 1500, and Sierra 1500 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Cadillac | Escalade | Front Upper | — |
| 2020 | Cadillac | Escalade ESV | Front Upper | — |
| 2020 | Chevrolet | Tahoe | Front Upper | — |
| 2020 | GMC | Yukon | Front Upper | — |
| 2020 | GMC | Yukon XL | Front Upper | — |
| 2019 | Cadillac | Escalade | Front Upper | — |
| 2019 | Cadillac | Escalade ESV | Front Upper | — |
| 2019 | Chevrolet | Tahoe | Front Upper | — |
| 2019 | GMC | Yukon | Front Upper | — |
| 2019 | GMC | Yukon XL | Front Upper | — |
| 2018 | Cadillac | Escalade | Front Upper | — |
| 2018 | Cadillac | Escalade ESV | Front Upper | — |
| 2018 | Chevrolet | Silverado 1500 | Front Upper | — |
| 2018 | Chevrolet | Tahoe | Front Upper | — |
| 2018 | GMC | Sierra 1500 | Front Upper | — |
| 2018 | GMC | Yukon | Front Upper | — |
| 2018 | GMC | Yukon XL | Front Upper | — |
| 2017 | Cadillac | Escalade | Front Upper | — |
| 2017 | Cadillac | Escalade ESV | Front Upper | — |
| 2017 | Chevrolet | Silverado 1500 | Front Upper | — |
| 2017 | Chevrolet | Tahoe | Front Upper | — |
| 2017 | GMC | Sierra 1500 | Front Upper | — |
| 2017 | GMC | Yukon | Front Upper | — |
| 2017 | GMC | Yukon XL | Front Upper | — |
| 2016 | Cadillac | Escalade | Front Upper | — |
| 2016 | Cadillac | Escalade ESV | Front Upper | — |
| 2016 | Chevrolet | Silverado 1500 | Front Upper | — |
| 2016 | Chevrolet | Tahoe | Front Upper | — |
| 2016 | GMC | Sierra 1500 | Front Upper | — |
| 2016 | GMC | Yukon | Front Upper | — |
| 2016 | GMC | Yukon XL | Front Upper | — |
| 2015 | Cadillac | Escalade | Front Upper | — |
| 2015 | Cadillac | Escalade ESV | Front Upper | — |
| 2015 | Chevrolet | Silverado 1500 | Front Upper | — |
| 2015 | GMC | Sierra 1500 | Front Upper | — |
| 2015 | GMC | Yukon XL | Front Upper | — |
| 2014 | Chevrolet | Silverado 1500 | Front Upper | — |
| 2014 | GMC | Sierra 1500 | Front Upper | — |
