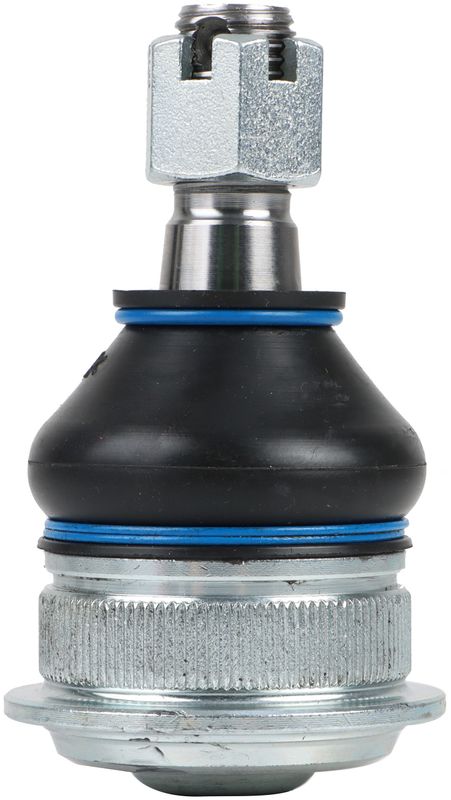

Delphi TC4211 Suspension Ball Joint - Front Upper
| Brand | Delphi TC4211 |
|---|---|
| Position | Front Upper |
| Maximum Outside Diameter | 1.929 |
| Maximum Outside Diameter | 49.00 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | No |
| Stud Thread Length | 0.748 |
| Stud Thread Length | 19.00 |
| Steering Type | Power |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Fits | INFINITI and Nissan · 37 vehicles |
OE-inspired engineering. Delphi applies original-equipment expertise to its aftermarket steering parts.
Built for harsh conditions. Tested from -40°C to 120°C and through 720 hours of salt spray.
Ready to install. Pre-greased with dust boot, castle nut, cotter pin, and mounting hardware included.
Cross-references Dorman - Premium BJ69056XL, Mevotech Supreme MK80994 and MOOG Chassis Products K80994 for the same application. See all 8.
Delphi TC4211 Front Upper Ball Joint
Delphi TC4211 is a standard replacement suspension ball joint for front upper applications on select Nissan and INFINITI vehicles. It is built with OE-focused dimensional and material analysis to support proper fit and consistent steering and suspension performance.
Key Features
- Front upper suspension ball joint for select Nissan TITAN, Armada, Pathfinder Armada, and INFINITI QX56 applications
- Press-in mounting type with threaded stud design
- Pre-greased, non-greaseable construction
- Rubber dust boot included to help protect the joint
- Castle nut, cotter pin, cotter pin hole, and mounting hardware included
- Counterclockwise (left) thread direction
- Standard replacement grade with plastic bearing type
- OE-style dimensional and material analysis for application fit
Detailed Description
Delphi TC4211 is a front upper suspension ball joint engineered for direct replacement service on 2004-2015 Nissan TITAN, 2005-2015 Nissan Armada, 2004-2013 INFINITI QX56, and 2004 Nissan Pathfinder Armada applications. This part number is also listed for 2017-2019 Nissan TITAN front upper use. Delphi applies OE safety technology and aftermarket steering expertise to this suspension component, with testing that includes extreme temperature exposure and extended salt-spray resistance to evaluate durability. The TC4211 is pre-greased, uses a press-in mount, and includes a rubber dust boot, castle nut, cotter pin, and mounting hardware for a complete service replacement.
This part cross-references MOOG Chassis Products K80994 and Mevotech Supreme MK80994 for the same application.
Common Repair Uses
- Restores worn front upper ball joint movement in the suspension
- Addresses looseness or play in the front end
- Helps correct clunking or knocking from the upper control arm area
- Supports stable steering response on Nissan TITAN, Armada, and INFINITI QX56 platforms
- Replaces a damaged or contaminated press-in ball joint
Installation Notes
- Fits 2017-2019 Nissan TITAN, front upper
- Fits 2004-2015 Nissan TITAN, front upper
- Fits 2005-2015 Nissan Armada, front upper
- Fits 2004-2013 INFINITI QX56, front upper
- Fits 2004 Nissan Pathfinder Armada, front upper
- Press-in installation requires proper suspension service tools and correct alignment procedures after replacement
- Verify left-hand thread direction and stud taper before installation
Quality Assurance
Delphi uses OE-based engineering, dimensional checks, and material analysis to support fit and performance consistency. The TC4211 is tested across severe temperature ranges and salt-spray exposure to evaluate durability in demanding service conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Nissan | TITAN | Front Upper | — |
| 2018 | Nissan | TITAN | Front Upper | — |
| 2017 | Nissan | TITAN | Front Upper | — |
| 2015 | Nissan | Armada | Front Upper | — |
| 2015 | Nissan | TITAN | Front Upper | — |
| 2014 | Nissan | Armada | Front Upper | — |
| 2014 | Nissan | TITAN | Front Upper | — |
| 2013 | INFINITI | QX56 | Front Upper | — |
| 2013 | Nissan | Armada | Front Upper | — |
| 2013 | Nissan | TITAN | Front Upper | — |
| 2012 | INFINITI | QX56 | Front Upper | — |
| 2012 | Nissan | Armada | Front Upper | — |
| 2012 | Nissan | TITAN | Front Upper | — |
| 2011 | INFINITI | QX56 | Front Upper | — |
| 2011 | Nissan | Armada | Front Upper | — |
| 2011 | Nissan | TITAN | Front Upper | — |
| 2010 | INFINITI | QX56 | Front Upper | — |
| 2010 | Nissan | Armada | Front Upper | — |
| 2010 | Nissan | TITAN | Front Upper | — |
| 2009 | INFINITI | QX56 | Front Upper | — |
| 2009 | Nissan | Armada | Front Upper | — |
| 2009 | Nissan | TITAN | Front Upper | — |
| 2008 | INFINITI | QX56 | Front Upper | — |
| 2008 | Nissan | Armada | Front Upper | — |
| 2008 | Nissan | TITAN | Front Upper | — |
| 2007 | INFINITI | QX56 | Front Upper | — |
| 2007 | Nissan | Armada | Front Upper | — |
| 2007 | Nissan | TITAN | Front Upper | — |
| 2006 | INFINITI | QX56 | Front Upper | — |
| 2006 | Nissan | Armada | Front Upper | — |
| 2006 | Nissan | TITAN | Front Upper | — |
| 2005 | INFINITI | QX56 | Front Upper | — |
| 2005 | Nissan | Armada | Front Upper | — |
| 2005 | Nissan | TITAN | Front Upper | — |
| 2004 | INFINITI | QX56 | Front Upper | — |
| 2004 | Nissan | Pathfinder Armada | Front Upper | — |
| 2004 | Nissan | TITAN | Front Upper | — |
