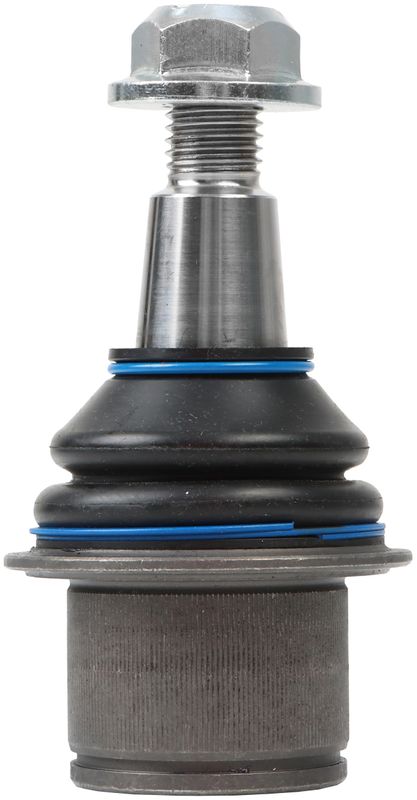

Delphi TC4229 Suspension Ball Joint - Front Lower
| Brand | Delphi TC4229 |
|---|---|
| Position | Front Lower |
| Maximum Outside Diameter | 2.579 |
| Maximum Outside Diameter | 65.50 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | No |
| Stud Thread Length | 1.106 |
| Stud Thread Length | 28.10 |
| Steering Type | Power |
| Wrench Size | 8 mm |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Fits | Land Rover · 20 vehicles |
OE expertise. Delphi brings OE safety know-how to its aftermarket steering parts.
Extreme testing. Built to handle harsh temperatures and 720 hours of salt spray.
Press-in design. Front lower ball joint with pre-greased, dust-booted assembly.
Cross-references Mevotech Supreme MS10525, MOOG Chassis Products K500148 and Suspensia X25BJ2108 for the same application. See all 9.
Delphi TC4229 Front Lower Ball Joint
Delphi TC4229 is a standard replacement suspension ball joint for the front lower position on select Land Rover applications. Built with Delphi OE-focused dimensional and material analysis, it is engineered for consistent fitment on LR3, LR4, and Range Rover Sport models.
Key Features
- Front lower suspension ball joint assembly
- Press-in mounting type for OE-style service replacement
- Pre-greased design with rubber dust boot included
- Standard replacement grade with plastic bearing type
- Thread direction: counterclockwise (left)
- Mounting hardware included
- Tapered stud with threaded stud type
- Steering type: power
Product Details
Delphi TC4229 is built for the front lower suspension position and is listed for 2005-2009 Land Rover LR3, 2006-2013 Land Rover Range Rover Sport, and 2010-2016 Land Rover LR4. Delphi applies OE-level testing and dimensional checks to help maintain proper compatibility between the replacement part and the original suspension geometry. This part cross-references MOOG Chassis Products K500148 for the same application.
What This Ball Joint Helps Address
- Front suspension looseness or play
- Clunking or knocking from the lower control arm area
- Uneven tire wear related to worn suspension joints
- Steering instability or wandering at the front end
- Restoring proper articulation at the lower suspension pivot
Installation Notes and Tips
Fits 2005-2009 Land Rover LR3, front lower. Fits 2006-2013 Land Rover Range Rover Sport, front lower. Fits 2010-2016 Land Rover LR4, front lower. This is a press-in ball joint, so proper removal and installation tools are recommended to avoid damage to the control arm or joint housing. Verify the left-hand thread direction, tapered stud dimensions, and mounting style before installation. Delphi TC4229 is pre-greased and includes a dust boot, which supports a clean service replacement process.
Quality Assurance
Delphi subjects its OE-style steering and suspension parts to temperature extremes below -40 degrees C and above 120 degrees C, along with extended salt-spray exposure and dimensional/material analysis. Those validation steps are used to support consistent aftermarket replacement quality for Delphi TC4229.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Land Rover | LR4 | Front Lower | — |
| 2015 | Land Rover | LR4 | Front Lower | — |
| 2014 | Land Rover | LR4 | Front Lower | — |
| 2013 | Land Rover | LR4 | Front Lower | — |
| 2013 | Land Rover | Range Rover Sport | Front Lower | — |
| 2012 | Land Rover | LR4 | Front Lower | — |
| 2012 | Land Rover | Range Rover Sport | Front Lower | — |
| 2011 | Land Rover | LR4 | Front Lower | — |
| 2011 | Land Rover | Range Rover Sport | Front Lower | — |
| 2010 | Land Rover | LR4 | Front Lower | — |
| 2010 | Land Rover | Range Rover Sport | Front Lower | — |
| 2009 | Land Rover | LR3 | Front Lower | — |
| 2009 | Land Rover | Range Rover Sport | Front Lower | — |
| 2008 | Land Rover | LR3 | Front Lower | — |
| 2008 | Land Rover | Range Rover Sport | Front Lower | — |
| 2007 | Land Rover | LR3 | Front Lower | — |
| 2007 | Land Rover | Range Rover Sport | Front Lower | — |
| 2006 | Land Rover | LR3 | Front Lower | — |
| 2006 | Land Rover | Range Rover Sport | Front Lower | — |
| 2005 | Land Rover | LR3 | Front Lower | — |
