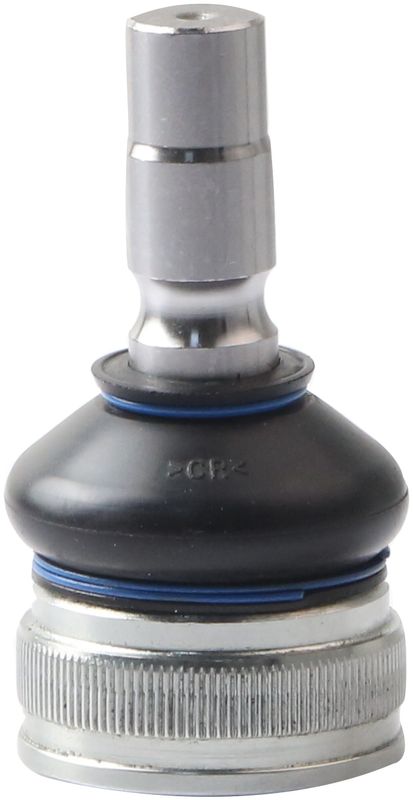

Delphi TC4260 Suspension Ball Joint - Front Lower

Delphi TC4260 Front Lower Ball Joint

Delphi TC4260 is a standard replacement suspension ball joint for the front lower position on select Ford Mustang models. Built with OE-focused dimensional and material analysis, it is intended to match factory fit and steering geometry for the 2005-2010 Ford Mustang, front lower application.

Key Features

• Part number: TC4260
• Fits 2005-2010 Ford Mustang, front lower
• Press-in mounting type
• Pre-greased design
• Dust boot included with rubber boot material
• Standard replacement suspension grade
• Counterclockwise (left) thread direction
• Plastic bearing type
• Ball joint assembly included
• Power steering type application

Detailed Description

Delphi TC4260 is a front lower suspension ball joint engineered for Ford Mustang models from 2005 through 2010. It uses a press-in mounting style and a pinch-style stud, with a pre-greased, non-greaseable construction and an included rubber dust boot to help protect the joint from road contamination. Delphi applies OE-based testing and dimensional analysis to support proper fitment and consistent suspension performance in the Mustang front suspension.

This part cross-references MOOG Chassis Products K500033 for the same application.

For shoppers searching for a Ford Mustang front lower ball joint, Delphi TC4260 offers a direct replacement option for the 2005-2010 Mustang platform. It is also a relevant choice when replacing worn suspension components on a Mustang that has developed looseness, noise, or steering play at the front end.

What It Helps Address

• Front suspension looseness or excess play
• Clunking or popping noises from the lower front suspension
• Uneven steering response caused by worn ball joint wear
• Restoring proper front suspension articulation
• Replacing a damaged or deteriorated dust boot assembly

Installation Notes and Tips

Delphi TC4260 is a press-in ball joint, so installation typically requires proper suspension service tools and careful removal and installation procedures. Verify the front lower position, left-thread direction, and Mustang model year before installation. Because this part is pre-greased and not greaseable, no grease fitting is used during service.

Quality Assurance

Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure as well as extended salt spray testing. That OE-focused validation supports consistent fit and durability for the Ford Mustang front lower suspension application.
