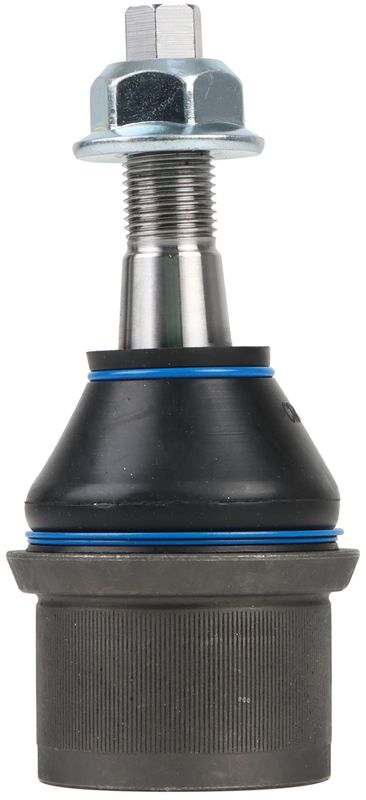

Delphi TC4261 Suspension Ball Joint - Front Lower
| Brand | Delphi TC4261 |
|---|---|
| Position | Front Lower |
| Maximum Outside Diameter | 2.362 |
| Maximum Outside Diameter | 60.00 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | No |
| Stud Thread Length | 1.161 |
| Stud Thread Length | 29.50 |
| Steering Type | Power |
| Wrench Size | 12 mm |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Fits | Chrysler and Dodge · 8 vehicles |
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering and suspension parts.
Extreme-condition tested. Built to handle subzero heat, high temperatures, and 720 hours of salt spray.
Front lower fit. Standard replacement ball joint with press-in mounting and a pre-greased, sealed design.
Cross-references Dorman - OE Solutions 536-392, Mevotech Supreme MK80765 and MOOG Chassis Products K80765 for the same application. See all 6.
Delphi TC4261 Front Lower Ball Joint
Delphi TC4261 is a standard replacement suspension ball joint for the front lower position on select Chrysler and Dodge applications. It is built with OE-focused dimensional and material analysis to support proper fit and consistent steering and suspension performance.
Compatible with 2004-2005 Dodge Durango, front lower; 2007-2009 Dodge Durango, front lower; and 2007-2009 Chrysler Aspen, front lower. This Delphi ball joint is pre-greased, includes a rubber dust boot, and uses a press-in mounting design with a threaded, tapered stud.
Key Features
- Part number: TC4261
- Front lower suspension ball joint
- Standard replacement grade
- Pre-greased for initial service
- Press-in mounting type
- Rubber dust boot included
- Mounting hardware included
- Counterclockwise (left) thread direction
- Plastic bearing type
- Power steering application
- 12 mm wrench size
Detailed Description
Delphi TC4261 is engineered for the front lower suspension position on the 2004-2005 Dodge Durango, 2007-2009 Dodge Durango, and 2007-2009 Chrysler Aspen. It features a standard ball joint assembly with a threaded, tapered stud, a rubber dust boot, and a press-in mount for direct service replacement. Delphi applies OE-level dimensional and material analysis to help maintain proper compatibility between the original part and the aftermarket replacement.
This part cross-references MOOG Chassis Products K80765 and Mevotech Supreme MK80765 for the same application. The Delphi TC4261 is a practical choice when replacing worn front lower suspension joints on Dodge Durango and Chrysler Aspen models.
What It Helps Address
- Front-end looseness or play from a worn lower ball joint
- Clunking or knocking noises from the front suspension
- Uneven tire wear related to suspension joint wear
- Steering wander caused by excess joint movement
- Restoring proper suspension articulation at the front lower position
Installation Notes
Install as a press-in front lower ball joint and verify the counterclockwise left-thread orientation before service. Confirm the tapered stud dimensions, 12 mm wrench size, and vehicle-specific fitment before installation. Professional installation and a post-repair alignment are recommended after suspension component replacement.
Quality Assurance
Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure plus extended salt spray testing. The TC4261 is backed by Delphi’s OE-focused engineering approach for aftermarket steering and suspension parts.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Chrysler | Aspen | Front Lower | — |
| 2009 | Dodge | Durango | Front Lower | — |
| 2008 | Chrysler | Aspen | Front Lower | — |
| 2008 | Dodge | Durango | Front Lower | — |
| 2007 | Chrysler | Aspen | Front Lower | — |
| 2007 | Dodge | Durango | Front Lower | — |
| 2005 | Dodge | Durango | Front Lower | — |
| 2004 | Dodge | Durango | Front Lower | — |
