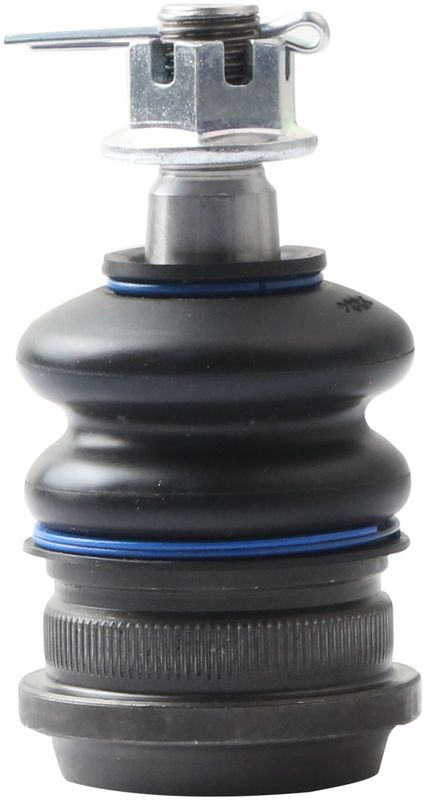

Delphi TC4268 Suspension Ball Joint - Front Upper
| Brand | Delphi TC4268 |
|---|---|
| Position | Front Upper |
| Maximum Outside Diameter | 1.976 |
| Maximum Outside Diameter | 50.20 |
| 10667 | No |
| Thread Direction | Counterclockwise (left) |
| Reinforced | No |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Type | Standard |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | No |
| Stud Thread Length | 0.866 |
| Stud Thread Length | 22.00 |
| Steering Type | Power |
| Stud Type | Threaded |
| Mounting Type | Press-in |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Fits | Toyota · 31 vehicles |
OE expertise. Delphi applies original-equipment know-how to its aftermarket steering parts.
Extreme-condition tested. Built to handle subzero cold, high heat, and 720 hours of salt spray.
Front upper fitment. Press-in ball joint with pre-greased, sealed construction for easier service.
Cross-references Beck/Arnley 101-4817, Dorman - Premium B90255XL and Mevotech Supreme MK90255 for the same application. See all 9.
OE-Style Front Upper Ball Joint
Delphi TC4268 is a standard replacement suspension ball joint for the front upper position on select Toyota trucks and SUVs. It is built with OE-focused dimensional and material analysis to support proper fit and consistent steering and suspension performance.
Compatible with 1995-2004 Toyota Tacoma, 1996-2002 Toyota 4Runner, 2000-2006 Toyota Tundra, and 2001-2007 Toyota Sequoia in the front upper position, Delphi TC4268 is a direct-fit suspension ball joint for common front-end service needs.
Key Features
- Front upper suspension ball joint
- Standard replacement design
- Press-in mounting type
- Pre-greased for installation readiness
- Rubber dust boot included
- Castle nut, cotter pin, cotter pin hole, and mounting hardware included
- Counterclockwise (left) thread direction
- Plastic bearing type with non-greaseable construction
- Tapered stud with threaded stud design
- OE-focused fitment and material analysis
Detailed Description
Delphi TC4268 is engineered as a front upper suspension ball joint for Toyota Tacoma, Toyota 4Runner, Toyota Tundra, and Toyota Sequoia applications. It uses a press-in mounting style, a tapered stud, and a rubber dust boot to support secure installation and long-term joint protection. The unit is pre-greased and supplied as a complete ball joint assembly with a castle nut, cotter pin, cotter pin hole, and mounting hardware included.
Delphi applies OE-level dimensional and material analysis to help ensure proper interchange with the original part. The part number TC4268 is also referenced in aftermarket cross listings for the same application, including MOOG Chassis Products K90255 and Mevotech Supreme MK90255.
Common Repair Applications
- Front-end looseness or play in the upper suspension joint
- Clunking or popping from the front suspension over bumps
- Uneven tire wear related to worn steering and suspension components
- Steering wander or reduced front-end stability
- Service replacement for a worn press-in upper ball joint
Installation Notes
Verify vehicle year, model, and front upper position before installation. This part uses a counterclockwise (left) thread direction and a press-in mounting design, so proper suspension service tools are required. Inspect the control arm, surrounding hardware, and alignment settings during replacement. After installation, a professional wheel alignment is recommended.
Quality Assurance
Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure plus extended salt spray testing. That validation supports OE-style durability for front suspension service on Toyota Tacoma, Toyota 4Runner, Toyota Tundra, and Toyota Sequoia applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Toyota | Sequoia | Front Upper | — |
| 2006 | Toyota | Sequoia | Front Upper | — |
| 2006 | Toyota | Tundra | Front Upper | — |
| 2005 | Toyota | Sequoia | Front Upper | — |
| 2005 | Toyota | Tundra | Front Upper | — |
| 2004 | Toyota | Sequoia | Front Upper | — |
| 2004 | Toyota | Tacoma | Front Upper | — |
| 2004 | Toyota | Tundra | Front Upper | — |
| 2003 | Toyota | Sequoia | Front Upper | — |
| 2003 | Toyota | Tacoma | Front Upper | — |
| 2003 | Toyota | Tundra | Front Upper | — |
| 2002 | Toyota | 4Runner | Front Upper | — |
| 2002 | Toyota | Sequoia | Front Upper | — |
| 2002 | Toyota | Tacoma | Front Upper | — |
| 2002 | Toyota | Tundra | Front Upper | — |
| 2001 | Toyota | 4Runner | Front Upper | — |
| 2001 | Toyota | Sequoia | Front Upper | — |
| 2001 | Toyota | Tacoma | Front Upper | — |
| 2001 | Toyota | Tundra | Front Upper | — |
| 2000 | Toyota | 4Runner | Front Upper | — |
| 2000 | Toyota | Tacoma | Front Upper | — |
| 2000 | Toyota | Tundra | Front Upper | — |
| 1999 | Toyota | 4Runner | Front Upper | — |
| 1999 | Toyota | Tacoma | Front Upper | — |
| 1998 | Toyota | 4Runner | Front Upper | — |
| 1998 | Toyota | Tacoma | Front Upper | — |
| 1997 | Toyota | 4Runner | Front Upper | — |
| 1997 | Toyota | Tacoma | Front Upper | — |
| 1996 | Toyota | 4Runner | Front Upper | — |
| 1996 | Toyota | Tacoma | Front Upper | — |
| 1995 | Toyota | Tacoma | Front Upper | — |
