Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

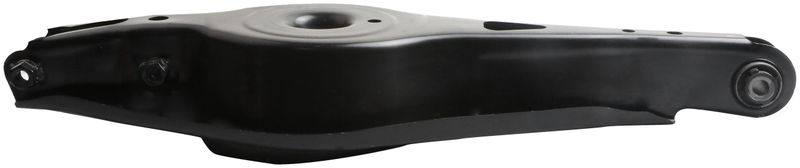

Delphi TC4487 Suspension Control Arm - Rear Left Lower
| Brand | Delphi TC4487 |
|---|---|
| Position | Rear Left Lower |
| Construction | Casting/forged |
| Finish | E-coated |
| Pre-Greased | No |
| Bushings Included | Yes |
| Control Arm Material | Steel |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Adjustable | No |
| Greaseable | No |
| Mounting Type | Press in |
| Fits | Volvo · 5 vehicles |
OE-style replacement. Built with Delphi OE expertise for suspension service and fit consistency.
Corrosion-resistant finish. E-coated steel construction helps protect the control arm from harsh conditions.
Complete service part. Bushings are included for a more efficient suspension repair.
Cross-references Suspensia X53LA0593, 1028455 and 32221199 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Suspension Control Arm
Delphi TC4487 is a standard replacement suspension control arm built for the rear left lower position. It is engineered with OE-focused dimensional and material analysis to match the original application and support consistent suspension geometry.
Compatible with Volvo XC40 applications, this control arm uses a steel construction with a cast/forged design and an e-coated finish for added corrosion resistance. Bushings are included, while the part is not pre-greased, not adjustable, and uses a press-in mounting type.
Key Features
- Standard replacement control arm for direct suspension service
- Steel construction with cast/forged manufacturing
- E-coated finish for corrosion protection
- Bushings included for a complete service part
- Press-in mounting type with no adjustment required
Detailed Description
Delphi TC4487 is a rear left lower suspension control arm for the Volvo XC40. Delphi applies OE-level dimensional and material analysis to help ensure the aftermarket part aligns with the original fit and function requirements of the vehicle’s suspension system. The steel body, cast/forged construction, and e-coated surface are selected to support durability in demanding underbody conditions.
This part cross-references Monroe Shocks & Struts (e.g., 1028455, 32221199) for the same application. If you are replacing a worn Volvo XC40 control arm, TC4487 provides a direct service solution for the rear left lower position. The Delphi TC4487 part number is also useful when verifying the correct suspension control arm before ordering.
What It Helps Fix
- Excessive suspension play from worn arm bushings or joints
- Clunking or knocking noises from the rear suspension
- Uneven tire wear caused by altered alignment geometry
- Steering or handling instability related to suspension wear
- Corrosion-related failure of the original control arm
Installation Notes and Tips
Fits 2019-2023 Volvo XC40, rear left lower. Confirm the mounting style and position before installation, since this part uses a press-in design and is not adjustable. Because mounting hardware is not included, reuse or source the required hardware separately if needed. The Delphi TC4487 should be installed as a position-specific suspension component and aligned after replacement.
Quality Assurance
Delphi applies OE expertise to its aftermarket steering and suspension portfolio. This control arm is tested for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray to evaluate corrosion resistance and material performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Volvo | XC40 | Rear Left Lower | — |
| 2022 | Volvo | XC40 | Rear Left Lower | — |
| 2021 | Volvo | XC40 | Rear Left Lower | — |
| 2020 | Volvo | XC40 | Rear Left Lower | — |
| 2019 | Volvo | XC40 | Rear Left Lower | — |
